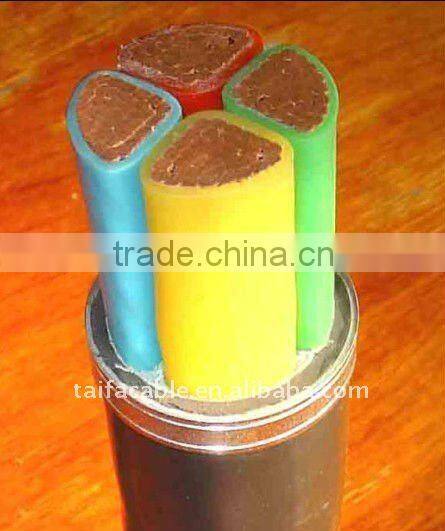

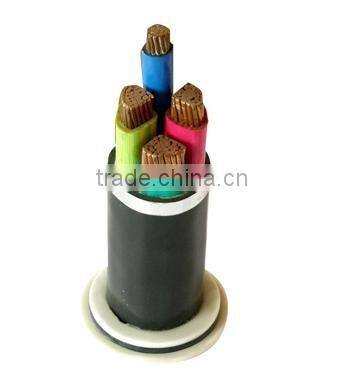

good quality and best price 0.6-1kv NYCWY Power Cable

FOB Price

USD $1 - $99 / Kilometer

1 Kilometer(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China	Brand Name	taifa
Model Number	NYCWY Power Cable	Insulation Material	PVC
Type	Low Voltage	Application	Industrial
Conductor Material	Copper	Jacket	Other, PVC (Polyvinyl Chloride) DMV5 to HD 603.1

NYCWY, Power Cable, 0.6/1 kV, with Concentric Copper Conductor

Plain copper conductors, as per VDE 0295 cl. 1 od. cl. 2, IEC 60228, BS 6360 cl. 1 and HD 383, solid or stranded versions, conductor types
10-16 mm² round, solid conductors (re) alt.
10-25 mm², stranded conductor (rm),
35-240 mm², sector shaped conductor, stranded (sm)
PVC conductor insulation, DIV4 to HD 603.1
Color coded to DIN VDE 0293-308 and HD 186
Conductors stranded concentrically
Filling compound
Concentric conductor (Ceander), inner layer of corrugated copper wires, outer layer with copper tape
PVC outer jacket, DMV5 to HD 603.1

Jacket color: Black

Propeties:

PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers

Highest permissible voltage

NYCWY Power CableNo. of Cores x Nominal Cross Sectional Area# x mm	Stranded Conductor Type	Nominal Overall Diametermm
2 x 10.0	re / 10.0	19.0
2 x 16.0	re / 16.0	21.5
2 x 25.0	rm / 25.0	24.5
3 x 10.0	re / 10.0	19.5
3 x 16.0	re / 16.0	22.0
3 x 25.0	rm / 16.0	26.0
3 x 25.0	rm / 25.0	26.0
3 x 35.0	sm / 35.0	27.5
3 x 35.0	sm / 16.0	27.0
3 x 50.0	sm / 50.0	29.5
3 x 50.0	sm / 25.0	29.0
3 x 70.0	sm / 70.0	34.0
3 x 70.0	sm / 35.0	33.0
3 x 95.0	sm / 95.0	38.5
3 x 95.0	sm / 50.0	38.0
3 x 120.0	sm / 70.0	41.0
3 x 120.0	sm / 120.0	42.0
3 x 150.0	sm / 70.0	45.0
3 x 150.0	sm / 150.0	46.0
3 x 185.0	sm / 95.0	50.0
3 x 185.0	sm / 185.0	51.0
3 x 240.0	sm / 120.0	57.0
4 x 10.0	re / 10.0	20.5
4 x 16.0	re / 16.0	23.5
4 x 25.0	rm / 16.0	28.0
4 x 35.0	sm / 16.0	29.0
4 x 50.0	sm / 25.0	33.0
4 x 70.0	sm / 35.0	37.0
4 x 95.0	sm / 50.0	43.5
4 x 120.0	sm / 70.0	47.0
4 x 150.0	sm / 70.0	51.0
4 x 185.0	sm / 95.0	56.0
4 x 240.0	sm / 120.0	62.5

Please tell us the specification and structure, we will give you most competitive price
