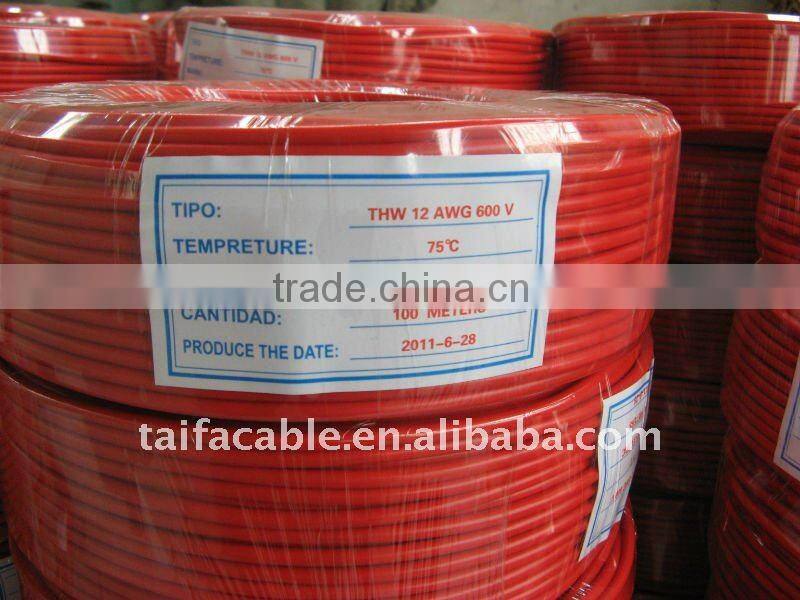

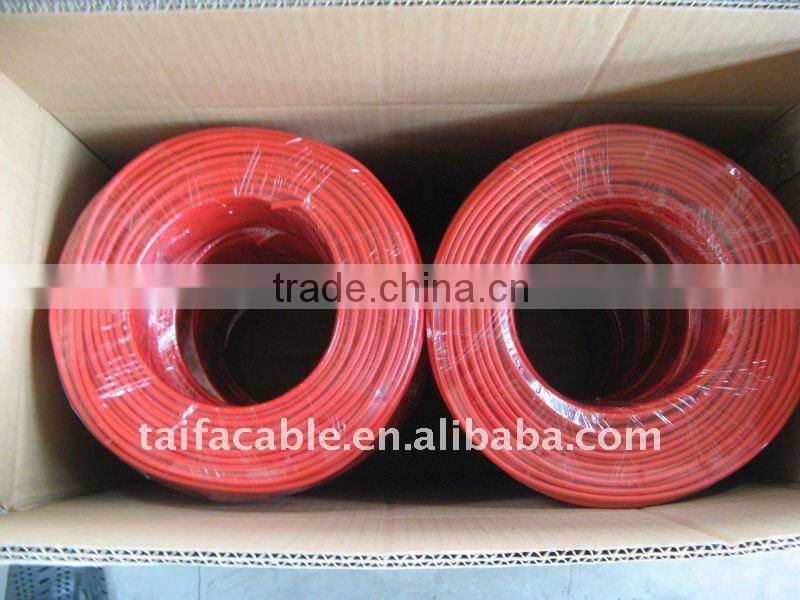

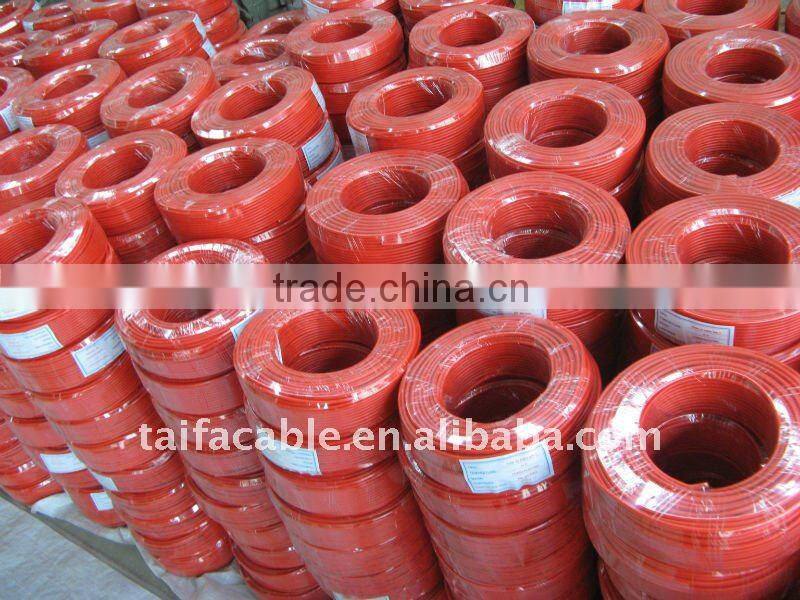

Low Smoke Low Toxicity BS6004 H05V-U Wire
- qingdao
- T/T L/C D/P D/A
You May Like
-

                        High Quality and Long Durability Cable Yellow / Green 28 mm Flexible Multi-thread
-

                        Service Drop Cable (quadruplex Aerial Bundle Cable) SAH-VO Cable
-

                        8.7/15kv Power Cable LSZH BS7835 50mm 150mm 300mm Cu/XLPE/SWA PVC Cable
-

                        Best-selling 0.6/1KV CU/XLPE/PVC NYYRY Power Cable
-

                        Good Quality and Best Price 0.6-1kv NYCWY Power Cable
-

                        IEC60502 CU/PVC/SWA/PVC, CU/XLPE/SWA/PVC Cable
Product Details
| Place of Origin | Henan, China | Brand Name | taifa | |
| Model Number | BS6004 H05V-U wire | Type | Insulated | |
| Application | Other, lighting ,building | Conductor Material | Copper | |
| Conductor Type | Stranded | Insulation Material | PVC |
Product Description
low smoke low toxicity BS6004 H05V-U wire

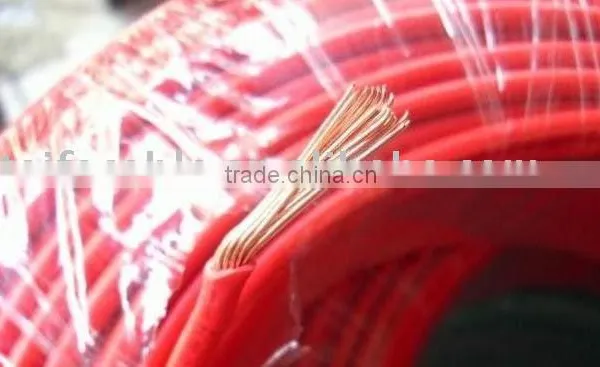

Single or Multi Cores Copper Conductor PVC Wire(P/F Cable)
Aluminum or Copper conductor
Voltage:300/300v ,300/500v,450/750v
Insulation :pvc
Sheath :pvc
cross section :0.5mm2--630 mm2
Amperer:15A,24A ,32A,42A,55A,75A..
1.Standards

The products adopt GB 5023.11997450/750V or below PVC Wire(P/F Cable)JB 8734.15-1998450/750V or under PVC insulated cables,electric wires and flexible wiresand Q/ZEL 02-2002Piastic insulated electric wires and cables.GB 5023.17-1997 is identical to IEC227,and type are same as the stipulation of IEC
2.Products
| Type | Name | Laying place and requirement | Long term working temperature |
| 227IEC01/05 BV BLV | Copper conductor PVC insulated wires | Fixed laid indoors,conduits etc. | 70 |
| Aluminum Conductor PVC insulated wires | |||
| 227IEC07 BV-90 | Heat resistant copper conductor PVC insulated wires at 90 | Mainly be laid at the places of high temperature environment and can be laid indoors,conduits. | 90 |
| BVR | Copper conductor PVC insulated flexible wire | Be for laying permanent place where flexible required | 70 |
| 227IEC10 BW | Copper conductor PVC insulated PVC sheathed round wires | Fixed laid,fit for the places with high mechanical protection and moisture place.Can be laid in the air or underground. | 70 |
| BLW | Aluminum conductor PVC insulated PVC sheathed round wires | ||
| BWB | Copper conductor PVC insulated PVC Sheathed flat wires | ||
| BLWB | Aluminum conductor PVC insulated sheathed flat wires | ||
| 227IEC02RV 227IEC06RV | Copper conductor PVC insulated flexible connector | Mainly used at middle and linht stylemoving electronics,home appliances,power and lighting and the places where flexible required. | 70 |
| 227IECC42 RVB | Copper conductor PVC insualted flat flexible connector | ||
| RVS | Copper conductor PVC insulated flexible twisting connector wire | ||
| 227IEC52 RW 227IEC53 RW | Copper conductor PVC insulated PVC sheated round flexible connector(light and common type) |
Comprehensive Data of BV Wire
| Nominal sectional area mm2 | Conductor No/Dia. mm | Nominal Insulated thick mm | Max overall Dia. mm | Condcutor Resistance at 20 | Min insulated resistance at 70MΩ/km | Weight Kg/km |
| 0.5 | 1/0.80 | 0.6 | 2.4 | 36.0 | 0.015 | 8.1 |
| 0.75 | 1./0.97 | 0.6 | 2.6 | 24.5 | 0.012 | 10.6 |
| 1 | 1/1.13 | 0.6 | 2.8 | 18.1 | 0.011 | 13.2 |
Comprehensive Data table of BV BLV Type PVC Wire(P/F)
| Nominal sectional area mm2 | Conductor No/Dia. mm | Nominal Insulated thick mm | Max overall Dia. mm | Condcutor Resistance at 20 | Min insulated resistance at 70MΩ/km | Weight Kg/km | ||
| Cu | Al | Cu | Al | |||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.010 | 20.6 | - |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 | 30.8 | 15.0 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21.0 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 | 65.0 | 29.0 |
| 10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065 | 110.0 | 52.0 |
| 16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 | 170.0 | 70.0 |
| 25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 | 270.0 | 110.0 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 | 364.0 | 150.0 |
| 50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 | 500.0 | 200.0 |
| 70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 | 688.0 | 269.0 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 | 953.0 | 360.0 |
| 120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 0.0032 | 1168.0 | 449.0 |
| 150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 0.0032 | 1466.0 | 551.0 |
| 185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808.0 | 668.0 |
