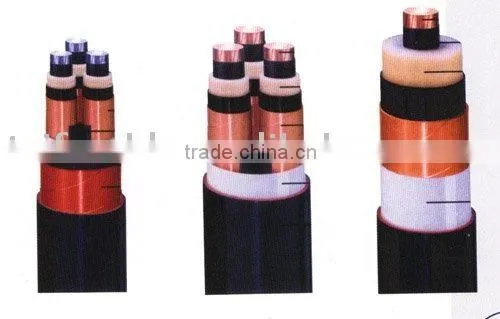

Copper Tape Shield /XLPE Insulated/Rubber sheathed Mining Cable
Mining Power Cable ,Mine Cable ,Rubber Cable ,Flexbile Power Cable ,PVC insulated Power Cable :
1.UsageThis rubber sheathed flexible cable used in coal-mining. power supply connection Of coal mining machine and similar equipments.
2.Working temperatureThe allowed working temperature of the core is 650C. Its smallest bending radius is six times the sizes of cable diameter. The yellow sheath cable should not be exposed in the sun for long.
3. Model and names
Model |
Name |
Usage |
MC-0.38/0.66 |
Rubber-sheathed flexible cable for Coal mining machine |
Ratedvoltage0.38/0.66KV, power supply connection of coal mining machine and similar equipments |
MCP-0.38/0.66 |
Shielded rubber-sheathed flexible cable for Coal mining machine |
Rated voltage 0.38/0.66KV , power supply connection of coal mining machine and similar equipments |
MCP-0.66/1.14 |
Shielded rubber-sheathed flexible cable for Coal mining machine |
Rated voltage0-66/1.44 Kv and below, power supply connection of coal mining machine and similar equipments. |
MCP-1.9/3.3 |
Shielded rubber-sheathed flexible cable for Coal mining machine |
Rated voltage1.9/3.3Kv and below, power supply connection of coal mining machine and similar equipments. |
MCPTJ-0.66/1.44KV |
Shielded monitoring rubber-sheathed flexible cable for Coal mining
|
power connection of coal mining and similar devices |
MCPTJ-1.9/3.3KV |
Shielded monitoring rubber-sheathed flexible cable for Coal mining
|
power connection of coal mining and similar devices |
MCPT-1.9-3.3KV |
Shielded rubber-sheathed flexible cable for Coal mining
|
power connection of coal mining and similar devices |
Core* Nominal section(mm2) |
Cable outer Dia(mm) |
|||||
Power core |
Ground core |
Control core |
MC-0.38/0.66 |
MCP-0.38/0.66 |
||
Min |
Max |
Min |
Max |
|||
3*16 |
1*4 |
3*2.5 |
31.3 |
35.1 |
34.7 |
38.5 |
3*25 |
1*6 |
4*2.5 |
37.3 |
42.0 |
41.3 |
45.5 |
3*35 |
1*6 |
4*4 |
41.8 |
46.0 |
45.1 |
49.3 |
3*50 |
1*10 |
7*4 |
46.0 |
50.9 |
50.0 |
54.3 |
4. Specification size:
Core* Nominal section(mm2) |
Cable outer Dia(mm) |
|||
Power core |
Ground core |
Control core |
MCP-0.66/1.14 |
|
Min |
Max |
|||
3*35 |
1*6 |
3*6 |
47.2 |
51.4 |
3*50 |
1*10 |
3*6 |
54.3 |
58.6 |
3*70 |
1*16 |
3*6 |
59.6 |
64.3 |
3*95 |
1*25 |
3*10 |
64.5 |
70.1 |
More information, pls feel free to contact Ms.Karin Yin , Mobile: 0086-15138698072
