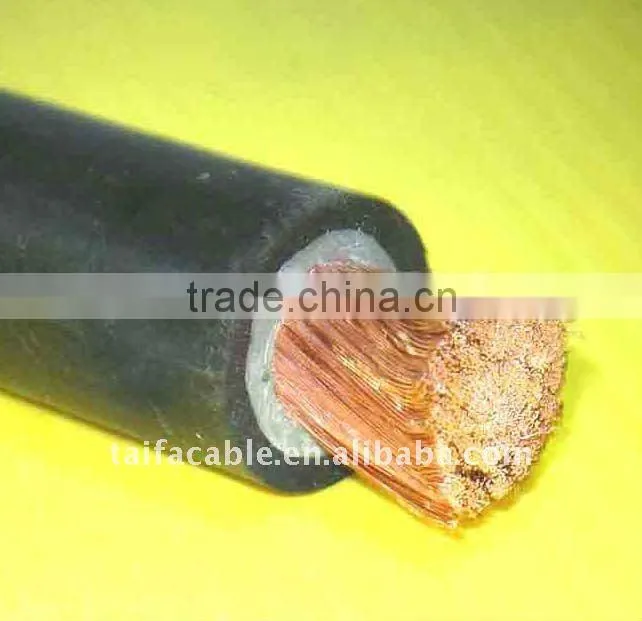

Hot selling 4/0 3/0 2/0 1/0 AWG Flat Rubber submersible cable
Tough & Flexible submersible pump cables specially designed to supply power to submersible borehole pumps in a deep borewell.
Loaded with exclusive features of Safety, Power Savings and Long-term Reliability, they are the best performing submersible pump cables on the market today. Tested for toughness and performance, the insulation & jacket will stand up to even the most aggressive wet conditions. Our finely stranded copper conductor has better flexibility and strength for easier handling & installation.
Applications :
Irrigations, Drinking Water Supply,Mine Dewatering,Industries,Swimming Pools,Fountains,Offshore Drilling Rigs,Sewage Treatment Plants,Sea Water Filtration Plants,Aquariums
1.The laying temperature is ≥0℃
2.The long-time working temperature of core-wire is ≤70℃PVC, or ≤90℃ PE.
3.The minimum curved radius
a.The curved radius should be not less than 6times of external diameter if the cables is without the armour layer.
b.If cables are with armour or copper tape screened structure, its curved radius should be not less than 12 times of external diameter.
c.If flexible cables are with screened layer structure, its external diameter is not less than 6 times of external diameter.
4.Finished cables can stand the test of alternating current 50Hz,3000V,5min pressure proof, and be not breakdown.
nductor direct-current resistance conforms to the standard rules of GB/T3956-2008<<The conductor of Cables>>.

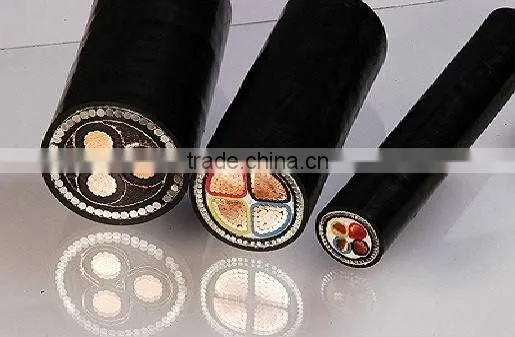

2.Armore(SWA/STA,XLPE/PVC insulated)
It applies to electrical power transmission and distribution lines with AC rated voltage UO/U up to and including 0.6/1KV. For outdoor and indoor installation in damp and wet locations, laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying, as well as in locations susceptible to sliding.
Specification
1.Uo/U:0.6/1KV
2.Standard applied: IEC60502, BS6346, GB/T12706
ing temperature: PVC insulated:70°C, can be 90°C and 110°C as per requirement
XLPE insulated: 90°C, can be 110°C as per requirement
4.Conductor: Class 1/2 annealed bare copper solid or strands
5.Insulation:PVC/XLPE
6.Cores: 1C, 2C, 3C,4C,5C, 3C+1E,4C+1E,3C+2E
7.Cross section: 1.5 mm2~ 630 mm2
8.Armoure:No Armoure,STA( Remark: for single core the armore should be ATA )
SWA(Remark: for single core the armore should be AWA)
9.Sheath:PVC
10.Color:Black or other as request
11.Flame retardant or Fire resistance or low smoking and Halogen Free are available.

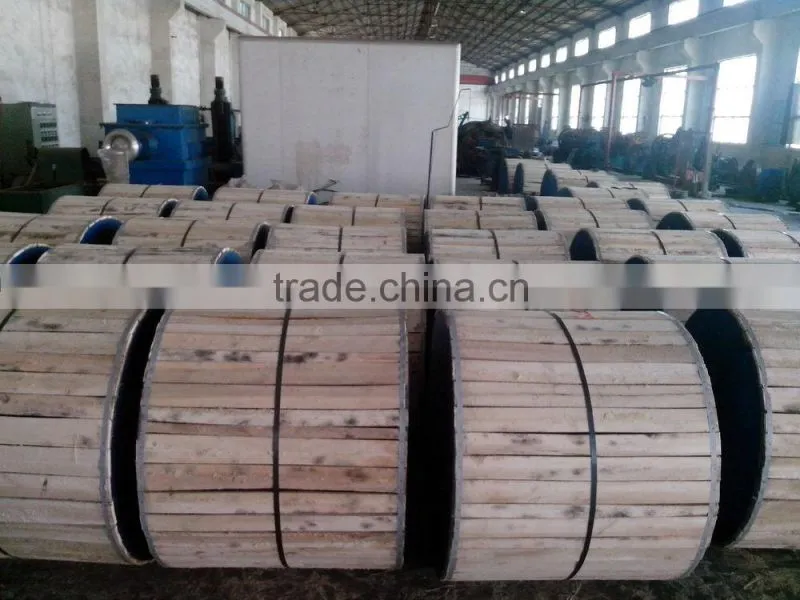

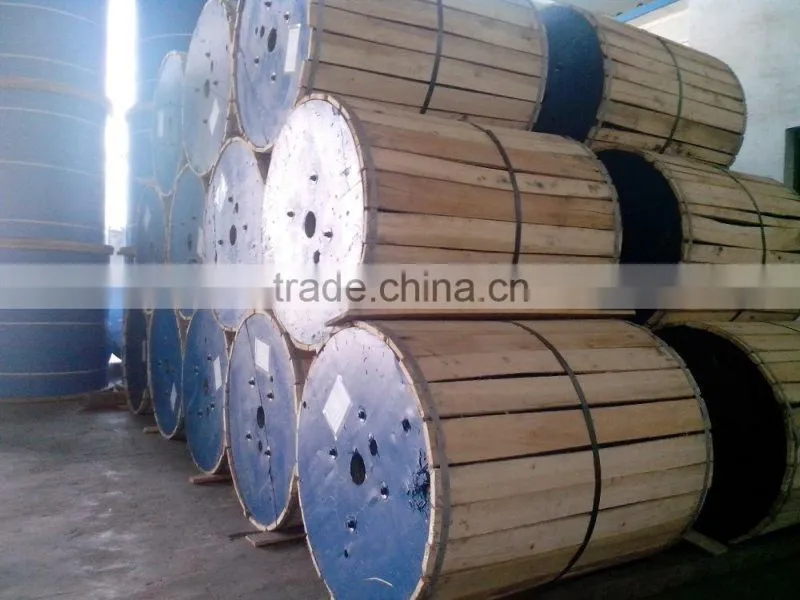

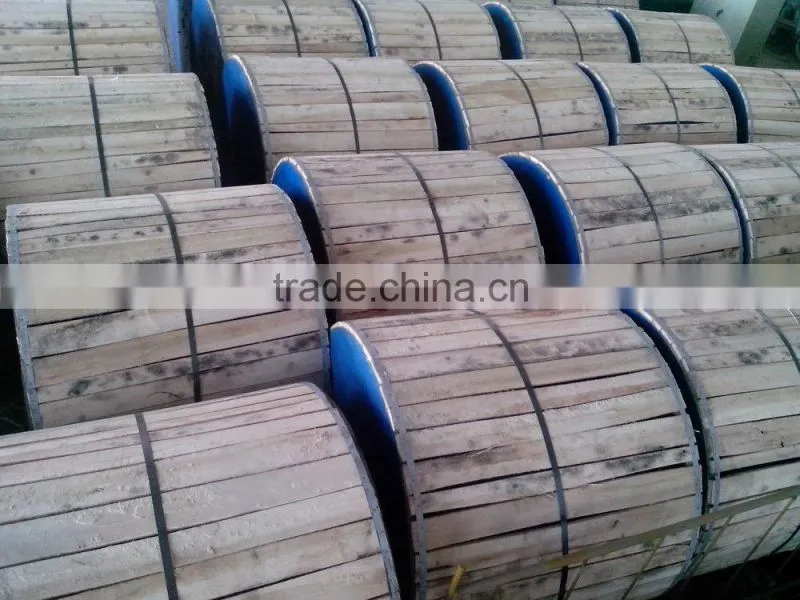

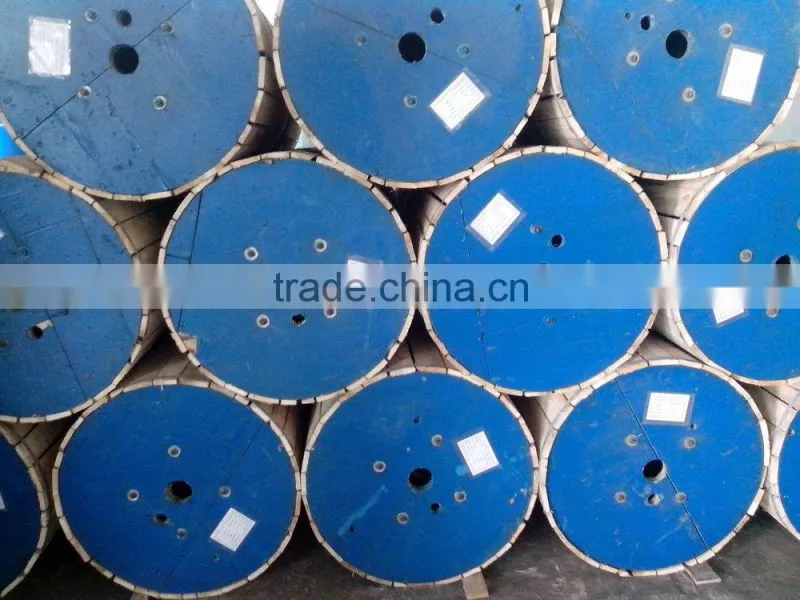

12.Wooden Drum or as per request
13.Certification:ISO9001/ISO14001/OHSMS18001/CE/CCC/CB ETC
14.OEM can be available
15.Taifa cable now runs pretty well all over the world,enjoy a very good reputation based on top quality and most competetive price and best service.
Features :
- Tough & flexible cable with excellent moisture, abrasion & weather resistance.
- Safe, Reliable and power saving.
- Excellent Wet Electrical Properties.

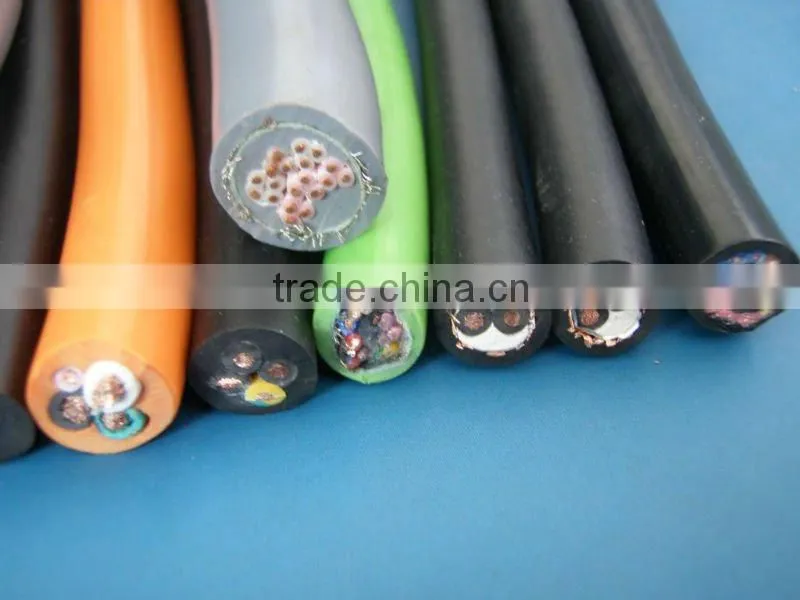

- 1 core , 3 core , 4 cores Flat & Round cables with PVC & Rubber Insulation & Jacket
- Available in SQ MM sizes (European style) 1 sq mm to 240 sq mm and AWG sizes (North American style) 14 AWG to 500 MCM.
- With sequential Meter / Foot marking.
- Various voltage rating for different markets: 450 / 750 V, 600 V, 650/1100 V, 600/1000 V, 3000 V.
- Conforming to International Standards IS 694, BS 6500, IEC 60227, DIN VDE 0281, VDE 0282, BS 6007, UL 83, SABS 1574, AS 3191, AS/NZS 5000.1.
- Available in wide temperature range: -50°C to 105°C.
- Available with ROHS PVC for drinking water pump.
Flat Cable Submersible Pump Cable
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3 core Flat Jacketed Submersible Pump Cables WITH Ground | ||||||
| CONDUCTOR SIZE (AWG) | NO OF CONDUCTOR | Nos & Dia. of Wire | Ground Conductor Size (AWG) | CORE DIA. (MM) | NOMINAL SHETH THICKNESS (MM) | CABLE DIA. (MM) |
| 14 | 3 | 41 X 0.254 | 14 | 3.85 | 1.15 | 18.00 x6.50 |
| 12 | 3 | 65 X 0.254 | 12 | 4.50 | 1.15 | 21.00 x7.60 |
| 10 | 3 | 105 X 0.254 | 10 | 5.30 | 1.15 | 24.30 x7.90 |
| 8 | 3 | 168 X 0.254 | 10 | 6.50 | 1.40 | 29.70 x9.90 |
| 6 | 3 | 266 X 0.254 | 8 | 8.00 | 2.00 | 36.00 x11.80 |
| 4 | 3 | 420 X 0.254 | 8 | 10.10 | 2.00 | 45.10 x14.70 |
| 2 | 3 | 665 X 0.254 | 6 | 11.30 | 2.20 | 50.10 x16.20 |
| 1 | 3 | 817 X 0.254 | 6 | 13.60 | 2.20 | 58.10 x19.00 |
| 1/0 | 3 | 1045 X 0.254 | 6 | 15.60 | 2.20 | 58.10 x19.00 |
| 2/0 | 3 | 1330 X 0.254 | 6 | 18.00 | 2.20 | 66.50 x21.50 |
