Electrical heat resistant cable silicone rubber cable 240mm2 300mm2
1.Brief introduction :

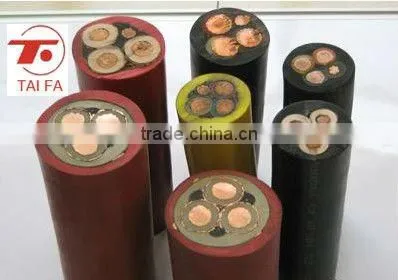

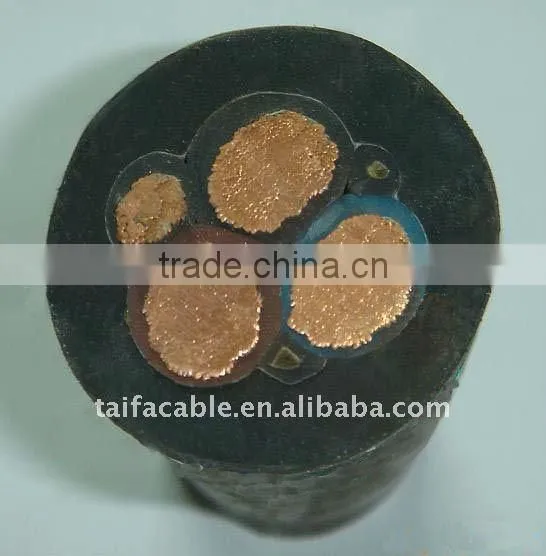

The Coal mine rubber soft power cable is used for the power source connection of varieties of portable equipments under the coal mine ,Coal mining machinery and portable coal mine machinery on the ground.
2.Product implementation standard.
MT818-1999,GB2972-91,Q/320201AF018-2000 Fame retardant properties meet the coal industry standard MT386 Coal-used flame retardant power cable experiment method and requirements for the rules.
3. Product usuage features
3.1 Rated Voltage U/U is with 0.3/0.5KV,0.38/0.66KV and 0.66/1.14KV,3.6/6KV. 3.2 Cable conductor's long term permitted working temperature 65 3.3 The cable's Min.bending radius is the 6 times cable's diameter. 3.4:Used for the 0.66/1.14KV Power cable under the coal mine is with the yello sheath,0.6/1KV power cable sheath is with red color,both of which not permitted to be long term exposure to the sunlight.
1. Products applications:
Rubber cable is suitable for connection with household appliances, electric tools and various mobile electrical equipments of rated voltage up to and including 450/750V.
2. Products standards: BS EN 50525-2-21
3. Products types & names:
--H05RR-F Ordinary rubber sheathed cord.
--H05RN-F Ordinary polychloroprene or other equivalent synthetic elastomer sheathed cord (1-4 cores).
--H07RN-F Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable.
4. Products characteristics:
--Long-term working temperature of cables: EPR insulated cables should not be higher than 65°C,EPT/EPDM insulated cables should not be higher than 90°C.
--Such cables are more flexible and easy to move electrical appliances.
| HAR Code | IEC | Description | Voltage Design | Cores |
| H05RR-F | 60245 IEC 53(YZ)/YZ | Oridinary rubber sheathed cord | 300/500V | 2~6 |
| H05RN-F | 60245 IEC 57(YZW)/YZW | Oridinary polychloroprene or other equivalent synthetic elastomer sheathed cord | 300/500V | 2~6 |
| H07RN-F | 60245 IEC 66(YCW)/YC | Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable | 450/750V | 1~5, 3+1/3+2/4+1 |
| H01N2-D | 60245 IEC 81(YH) | Rubber sheathed arc-welding electrode cable | 100/100V | 10-120 |
| 60245 IEC 82(YHF) | polychloroprene or other equivalent synthetic elastomer sheathed arc-welding electrode cable | 100/100V | 10-120 |
Welding Cable
Detailed Product Description
1th. Service Conditions
This product is suitable for the welding machine whose voltage to the ground is not more than 200V and pulsating current value is 400V.
2th. Model, Names Main applications and Work In the Temperature
Model |
Name |
Main applications |
Working temperature of core ≤0C |
YH |
Natural Rubber Sheath for Welding Cable |
Always used indoor |
65 |
YHF |
Neoprene Rubber Sheath Welding Cable |
Always used outdoor |
65 |
Synthetic elastomer Sheath Welding Cable |
3th. Standards: IEC60245
4th. Specifications, Size, Weight and Technical Data
Conductor Nominal Section (mm2) |
Conductive Core |
Thickness of Section Sheath (mm) |
Average Outer Diameter (mm2) |
20oC Conductor Resistance≤(Ω/km) |
Reference Weight(kg/km) |
||
Number/Diameter of Core(mm) |
Min |
Max |
YH |
YHF |
|||
10 |
322/0.20 |
1.8 |
7.5 |
9.7 |
1.91 |
146 |
153.51 |
16 |
513/0.20 |
2.0 |
9.2 |
11.5 |
1.16 |
218.9 |
230.44 |
25 |
798/0.20 |
2.0 |
10.5 |
13.0 |
0.758 |
316.6 |
331.15 |
35 |
1121/0.20 |
2.0 |
11.5 |
14.5 |
0.536 |
426 |
439.87 |
50 |
1596/0.20 |
2.2 |
13.5 |
17.0 |
0.379 |
592.47 |
610.55 |
70 |
2214/0.20 |
2.4 |
15.0 |
19.5 |
0.268 |
790 |
817.52 |
95 |
2997/0.20 |
2.6 |
17.0 |
22.0 |
0.198 |
1066.17 |
1102.97 |
120 |
1702/0.30 |
2.8 |
19.0 |
24.0 |
0.161 |
1348.25 |
1392.55 |
150 |
2135/0.30 |
3.0 |
21.0 |
27.0 |
0.129 |
1678.5 |
1698.72 |
185 |
1443/0.40 |
3.2 |
22.0 |
29.0 |
0.106 |
1983.8 |
2020.74 |
