Home > Lights & Lighting > LED Lighting Decoration > LED Strip Light > 5050 Rgb Led Strip 60leds/m Led Light Rgb Strip Ip65 Cob Led Strip

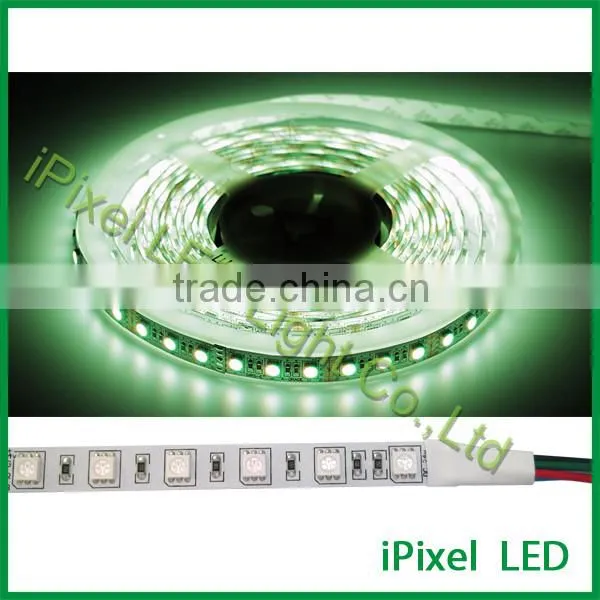

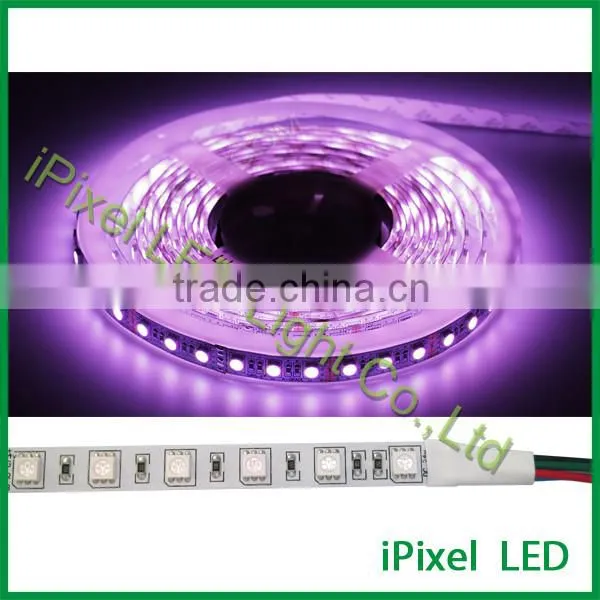

5050 Rgb Led Strip 60leds/m Led Light Rgb Strip Ip65 Cob Led Strip

5050 Rgb Led Strip 60leds/m Led Light Rgb Strip Ip65 Cob Led Strip thumbnail-1
5050 Rgb Led Strip 60leds/m Led Light Rgb Strip Ip65 Cob Led Strip thumbnail-2
5050 Rgb Led Strip 60leds/m Led Light Rgb Strip Ip65 Cob Led Strip thumbnail-3
5050 Rgb Led Strip 60leds/m Led Light Rgb Strip Ip65 Cob Led Strip thumbnail-4
5050 Rgb Led Strip 60leds/m Led Light Rgb Strip Ip65 Cob Led Strip thumbnail-5
5050 Rgb Led Strip 60leds/m Led Light Rgb Strip Ip65 Cob Led Strip photo-1
5050 Rgb Led Strip 60leds/m Led Light Rgb Strip Ip65 Cob Led Strip photo-2
5050 Rgb Led Strip 60leds/m Led Light Rgb Strip Ip65 Cob Led Strip photo-3
5050 Rgb Led Strip 60leds/m Led Light Rgb Strip Ip65 Cob Led Strip photo-4
5050 Rgb Led Strip 60leds/m Led Light Rgb Strip Ip65 Cob Led Strip photo-5
US$ 3.2 - 4.5 MOQ: 1 Roll
Key Specifications
Get Latest Price
LED Light Source:
Epistar Smd5050
Type:
Flex LED Strips
Input Voltage(V):
DC12V/24V
Contact Supplier Request Quote Chat Now
Shenzhen IPixel LED Light Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Yantian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar Smd5050
Type Flex LED Strips
Input Voltage(V) DC12V/24V
Lamp Power 14.4W/M
Lamp Luminous Flux(lm) R:500; G:1400; B: 400
Color Temperature(CCT) RGB
Working Temperature(℃) -30, 60
Working Lifetime(Hour) 50000
Lamp Body Material Copper
Certification CE
Emitting Color RGB
Place of Origin Guangdong, China
Brand Name iPixel LED
Model Number S605050RGB

5050 rgb led strip 60leds/m led light rgb strip ip65  cob led strip

Product Description

1. This flexible LED strip soldered 60 pcs SMD 5050 LED lamp

2. Flexible PCB: White, PCB Width 10mm.Cutable each set of LED: 3 LED or 6 LED

3. Waterproof version, Silicon Tube coating: W14* H4 mm
4. Both 12V / 24V available,constant voltage operation
5. Voltage drop from start to end of 5 M ± 2V.
6. Each end soldered a 2 Pin bare wire 20AWG at 15cm length
7. Standard size 5M in a reel, customizable of length

Product Name

SMD5050 RGB flexible led strip

Model Number

S605050RGB

LED Chip

5050 R, G, B

LED Qty

60LEDs/m

PCB Color

White PCB

PCB Width

10mm

Voltage

DC12V,DC24V

Watts

14.4W/M

IP Rate

IP20, IP65(Silicon-tube waterproof)

Cutted

12V, 3LEDs/group; 24V, 6LEDs/group

Standard Reel Length

5meter/roll, also can be customized

Operating Temperature

-30 ~ +60 °C

Storage Temperature

-40 ~ +80 °C

Beam Angle

140
Detailed Images

 IP20 5050 RGB led strip

5050 rgb led strip 60leds/m led light rgb strip ip65 cob led strip



IP65 5050 RGB led strip

5050 rgb led strip 60leds/m led light rgb strip ip65 cob led strip5050 rgb led strip 60leds/m led light rgb strip ip65 cob led strip

5050 rgb led strip 60leds/m led light rgb strip ip65 cob led strip

5050 rgb led strip 60leds/m led light rgb strip ip65 cob led strip



Related Products

5050 RGBW led strip 4 in one chip

5050 rgb led strip 60leds/m led light rgb strip ip65 cob led strip



RGB/RGBW rf led controller

5050 rgb led strip 60leds/m led light rgb strip ip65 cob led strip



Meanwell 350W 24V led power supply

5050 rgb led strip 60leds/m led light rgb strip ip65 cob led strip



Connection Map

SPI signal: LED Strip+LED power supply +LED controller

DMX control: LED Strip+LED pwer supply+DMX Controller+DMX decoder

LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino...

(offline / PC online)

LED power suppply: Meanwell power supply, T- series, A- series power supply...

(waterproof / non-waterproof)
