Specifications
1.India working Office2.CE&ISO9001 Certificate
3.Factory built in 1991
4.One Year Product Warranty

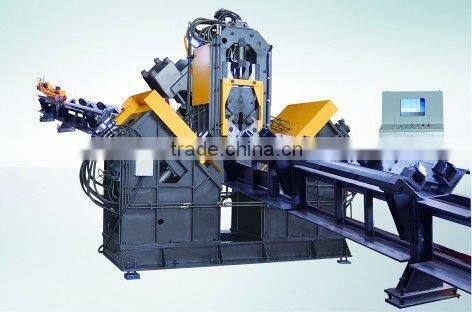

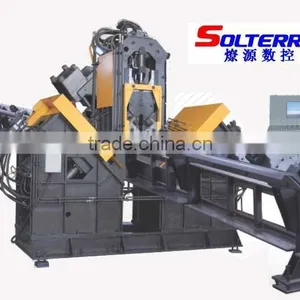

2012 HOT SALECNC Angle Marking&Drilling Production Line
ITEM: APL-2532
Equipment Features:
◊ The machine is a professional automatic equipment for typing, marking and drilling of angle steel.
◊ With CNC and servor motor it can get high efficiency and steady precison.
◊ The main hydraulic, pnuematic and electrical elements are imported
◊ Easy program can use the automatic data from software directly. Computer with English display and can show work piece figure,easy for operation.
Advantages:
- Rotation speeds of all spindles are stepless adjustment realized by frequency converter, feeding speed is also stepless adjustment realized by flow control valves. Rapid feed, working feed and rapid back of drilling spindles can be automatically converted.
- There is a marking unit in the drilling line, Marking stadia can be present conveniently.
- Hydraulic system serves for marking, pressing of workpiece, drilling feed. All main components are of imported from abroad. Cooling system with automatic circling is adopted to prolong the life of drills.

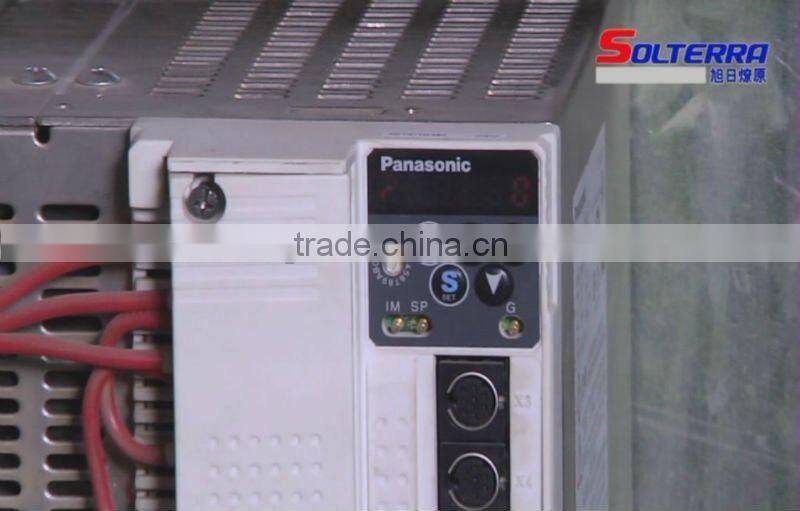

- Control system includes many units, such as host computer, CNC system, AC servo motor, PLC, monitoring switch for outside etc. Machining program can be generated automatically. In computer as long as operator inputs the dimensions of workpiece, which can be conveniently stored, called up, displayed and communicated according to different workpieces.
Main Technical Specifications
Model |
APL-2532 |
|
Function |
Drilling & Marking |
|
Angle Size |
Min. (mm) |
140x140x10 |
Max.(mm) |
250x250x32 |
|
Material |
Q235A or 16Mn |
|
Nominal Marking Power(kN) |
1040 |
|
Number of Character Group |
1 |
|
Character Dimension(mm) |
14x10x19 |
|

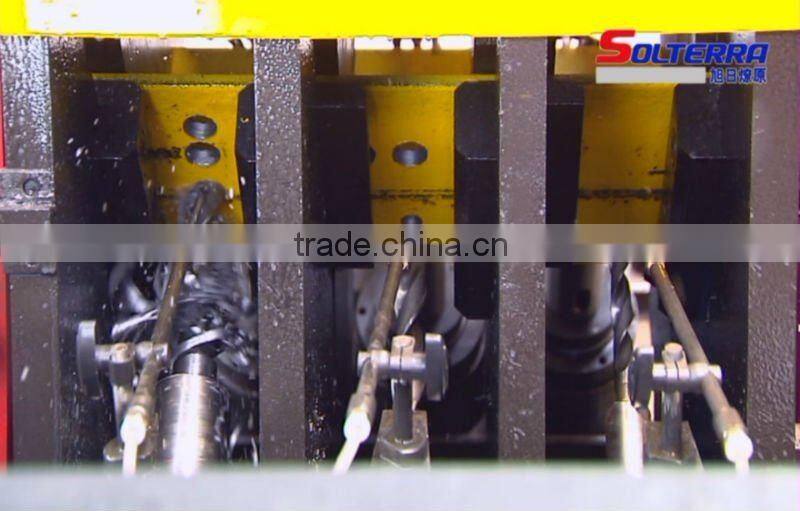

Drill for each Leg |
3 |
|
Main Shaft Speed(r/min) |
180~560(stepless adjustable) |
|
Diameter of Drilling Hole(mm) |
17.5~40 |
|
Drilling Main Axis Travel(mm) |
40~240 |
|
Number of CNC Axis |
3 |
|
Angle Steel Feeding Speed(m/min) |
40(stepless adjustable) |
|
Overall Dimensions(m) |
29x8.9x2.5 |
|
Net Weight(kg) |
Appr.16500kg |
|
Fully ISO Certificate Approved, for more information about the certificate, please feel free to contact me~~
Contact Information:
→→→→→→→→→→→→→→→→→→→→→→→→→→→
Jinan Liaoyuan Machine Co., Ltd
Headquarter: F5, Building A, Jinzhiyuan IT Industrial Park, No. 666, Shunhua East Road, High-tech Zone, Jinan, Shandong, China 250101
Work 1: No. 1996, Huanggang Rd., Jinan, China 250032
Work 2: East Biandian Rd., Huaiying, Jinan, China 250018
Tel: +86 531 Tel: +86 531 5556 2077 / 5558 5377 Fax: +86 531 5558 5077 / 8566 9978
Cell: +86-15953170342
Skype: robert02148
