Specifications
1.ISO&CE2.Factory established in 1991
3.One Year Product Warranty
4.Cnc Angle Marking,Punching and Cutting Line
Promotion!! Cnc Angle Marking,Punching and Cutting Line For Power Transmission Tower
Detailed Product Information:
1.High quality, Fair Price, Fast Delivery.
2.OEM Service, Trail Order
3.The Color, The logo, The package according to your request,
4.We are the Manufacturer,We have many engineers for the solutions for the new market to keep the trend of the world.
Jinan Liaoyuan Machine Co.,Ltd is a fast growing company dedicate to offer Iron tower and steel struction equipment and Win-Door Machinery
Product details:
CNC Angle marking,punching&Cutting line-APL2020 are detailed as follow:
Super quality! Lowest price!! Best service!!!
ITEM: APL-2020
This Series production lines are professional automatic equipments for typing,marking,punching and cutting if angle steel of electric power and
telecommnucaiton angle steel tower. Processing Size: Steel type L63X63X4,length with 16M. It includes 6 parts: Material-applying parts,feeding part,
principal part, finished production conveyor part, hydraulic power part,electrical control part.
Equipment Features:
1) CNC controll, servo motor drive and hydraulic power offer high efficiency and stable working accuracy.
2) Key hydraulic pneumatic and electically elements are imported from Gemany, Japan, South Korea etc., such as Panasonic servo motor and Mitsubishi PLC.
3) Marking, punching and shearing are all automatically operated.
4) Computer adopts friendly interface and supports manual programming. Easy to operate.
5) Marking unit adopts a closed frame with good rigidity; different punching toolings can be intalled accroding to needs.
6) Hydraulic pipeline is ferrule connected, ensuring high level of working security.
7) Workpiece infeeded by CNC carriage with high accuracy.
8) Double bladder accumulator provides sufficient power.
Technical Parameters:
Model |
APL-2020 |
Angle Size (mm) |
63×63×4~200×20×20 |
|
Max. punching capability Diameter×Thickness (mm) |
Φ26×20 |
Nominal punching force (kN) |
1000 |
Marking force (kN) |
550 |
Shearing force (kN) |
1550 |
Max. length of workpiece (m) |
14 |
Max. lenght of finished product(m) |
12 |
No. of punches on every side |
3 |
No. of character group |
4 |
Dimensions of character (mm) |
14×10×19 |
No. of CNC axis |
3 |
Shearing mode |
Double shearing |
Feeding speed (m/min) |
0-60 stepless adjustable |
Processing precision |
GB/T2694-2003 standard |
Programming model |
Keyboard enter, RS232 interface enter, CAD input |
Overal dimensions (mm) |
32×7×2.6 |
Net weight (t) |
20 |
Quality Guarantee:
The Seller shall provide all spare parts needed, be responsible for spare parts replacement and TWELVE (12) months guarantee.
After guarantee period all costs of replacement, cost of spare parts, shipment cost, and others cost shall be covered by Buyer
.
Technical Service:
The seller will supply free online technical service, free training program for the buyer’s staff , on-site installation

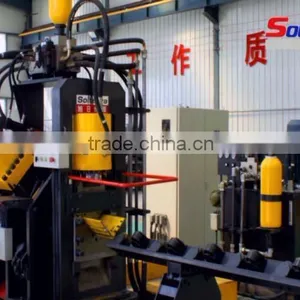

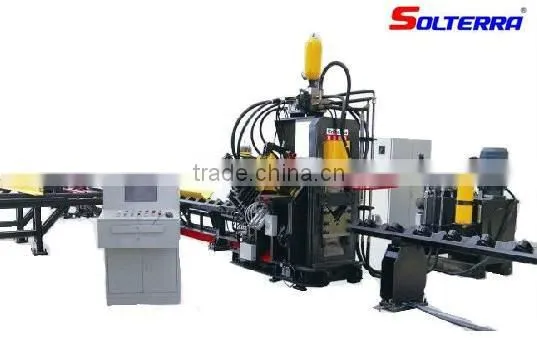

The Picture of the Machine

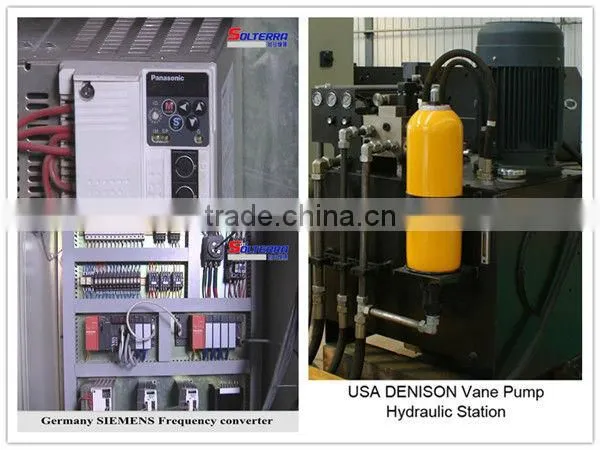

The Main parts of the machine
Jinan Liaoyuan Machine Co.,Ltd Attend Annual Exhibition
Jinan Liaoyuan Future Industrial Park Under Construction
Fully ISO Quality Management System Approved, For more informaiton about the
certificate,please feel free to contact me!!!
