automatic cnc punching and shearing machine for angle sheets
Detailed Product Information:

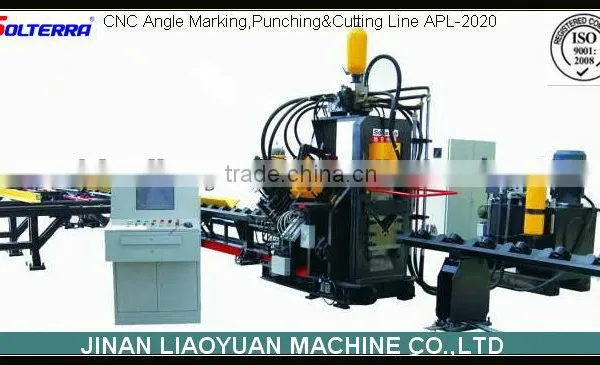

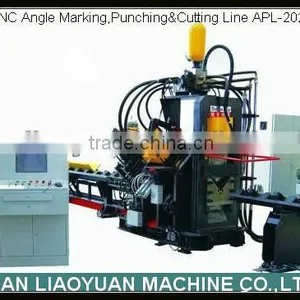

1.CNC Angle Marking, Punching & Cutting Line for Power Transmission Tower
2.High efficiency and easy program
3.ISO9001
Jinan Liaoyuan Machine Co.,Ltd is a fast growing company dedicate to offer Iron tower and steel struction equipment and Win-Door Machinery
Product details:
CNC Angle marking,punching&Cutting line-APL2020 are detailed as follow:
Super quality! Lowest price!! Best service!!!
ITEM: APL-2020
This Series production lines are professional automatic equipments for typing,marking,punching and cutting if angle steel of electric power and telecommnucaiton angle steel tower. Processing Size: Steel type L63X63X4,length with 16M. It includes 6 parts: Material-applying parts,feeding part,principal part, finished production conveyor part, hydraulic power part,electrical control part.
Equipment Features:
1) CNC controll, servo motor drive and hydraulic power offer high efficiency and stable working accuracy.
2) Key hydraulic pneumatic and electically elements are imported from Gemany, Japan, South Korea etc., such as Panasonic servo motor and Mitsubishi PLC.
3) Marking, punching and shearing are all automatically operated.
4) Computer adopts friendly interface and supports manual programming. Easy to operate.
5) Marking unit adopts a closed frame with good rigidity; different punching toolings can be intalled accroding to needs.
6) Hydraulic pipeline is ferrule connected, ensuring high level of working security.
7) Workpiece infeeded by CNC carriage with high accuracy.
8) Double bladder accumulator provides sufficient power.
Technical Parameters:
Model |
APL-2020 |
Angle Size (mm) |
63×63×4~200×20×20 |
|
Max. punching capability Diameter×Thickness (mm) |
Φ26×20 |
Nominal punching force (kN) |
1000 |
Marking force (kN) |
550 |
Shearing force (kN) |
1550 |
Max. length of workpiece (m) |
14 |
Max. lenght of finished product(m) |
12 |
No. of punches on every side |
3 |
No. of character group |
4 |
Dimensions of character (mm) |
14×10×19 |
No. of CNC axis |
3 |
Shearing mode |
Double shearing |
Feeding speed (m/min) |
0-60 stepless adjustable |
Processing precision |
GB/T2694-2003 standard |
Programming model |
Keyboard enter, RS232 interface enter, CAD input |
Overal dimensions (m) |
32×7×2.6 |
Net weight (t) |
20 |
Specific Advantages:
1. India Branch Office.
2. Fully ISO Quality Management System Certificate Approved.
3. One year Product Warranty, with professional technician and good after-sales service.
4. Factory established in 1991, more than 20 years' experience in servicing Steel tower and steel production line.
5. Product from Factory, High Quality and competitive price.
Quality Guarantee:
The Seller shall provide all spare parts needed, be responsible for spare parts replacement and TWELVE (12) months guarantee.
After guarantee period all costs of replacement, cost of spare parts, shipment cost, and others cost shall be covered by Buyer
Technical Service:
The seller will supply free online technical service, free training program for the buyer’s staff , on-site installation
The Main parts of the machine
Company Profile
Jinan Liaoyuan Machine, Established in 1991, is One of the leading Manufacture specialized in Manufacturing and designing different kinds of Steel tower equipment, Transmission tower, CNC Punching Machine, CNC Plate Marking Machine and steel structure equipment PVC window and door machine, Upvc Window and door machine, Aluminum Window and door machine. in china with experience more than 20 years. Our product has passed ISO9001:2008 Quality Management System Certificate and products are sold all over the world, with OEM Service offered, Design Service offered and Buyer label Offered.
Jinan Liaoyuan Machine Co.,Ltd Attend Annual Exhibition
Fully ISO Quality Management System Approved, For more informaiton about the certificate,please feel free to contact me!!!
Contact information
→→→→→→→→→→→→→→→→→→→→→→→→→→→
Jinan Liaoyuan Machine Co., Ltd
Headquarter: F5, Building A, Jinzhiyuan IT Industrial Park, No. 666, Shunhua East Road, High-tech Zone, Jinan, Shandong, China 250101
Work 1: No. 1996, Huanggang Rd., Jinan, China 250032
Work 2: East Biandian Rd., Huaiying, Jinan, China 250018
Tel: +86 531 Tel: +86 531 5556 2077 / 5558 5377 Fax: +86 531 5558 5077 / 8566 9978
Cell: +86-15953170342
Skype: robert02148
