Brand Name iPixel LED
Model Number YM-ST4K
Use Universal
Place of Origin Guangdong, China

YM-ST4K wireless synchronize DMX512 led light controller

led lighting edit softwre master and slave control controller

ST4K Character:
a. wireless synchronize, control area 500 meters
b. with 4 output ports, each port can load 1024 pixels.
c. digital tube show the controller status.
d. program saved in SD card, maximum 15 files.
e. can adjust the play mode, speed etc.
f. over voltage protection.
g. support DMX512 protocol or others drive IC.

led lighting edit softwre master and slave control controller

Dimension

115*100*34mm

Signal type

DMX512

Weight

200g

Color level

RGB 256 levels

Voltage

DC 5-24V

Temperature

-20~65℃

Wattage

5W

Load pixels

2048

Output

4 ports

Software

LED CTL

Support IC

1 line:TM1804,TM1829,UCS1903,TLS3001,TLS3008;

2 lines:DMX512,P9813,LPD6803,LPD8806,SM16716,WS2801,MBI6021,MBI6024,MY9221 etc.

 led lighting edit softwre master and slave control controller

led lighting edit softwre master and slave control controller

led lighting edit softwre master and slave control controller



led lighting edit softwre master and slave control controllerled lighting edit softwre master and slave control controller

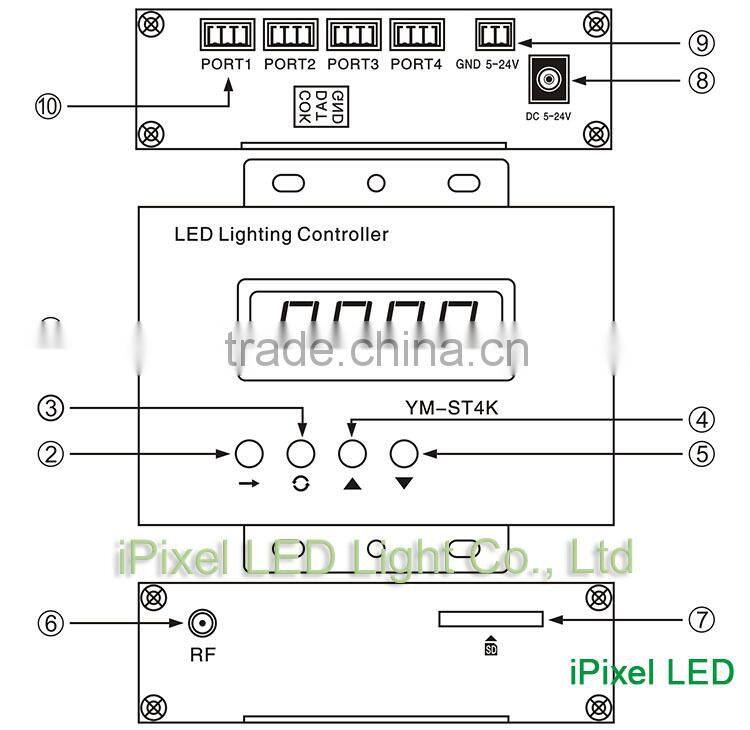

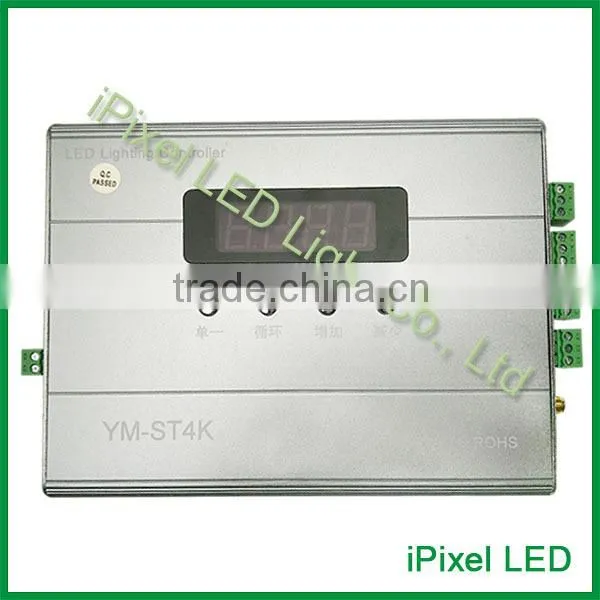

 Panel function:

led lighting edit softwre master and slave control controller



1.Digital tube display.                               6.Antenna port.
2.Single mode / select program.               7.SD card
3.Cycle mode.                                          8.Power 1: DC 5-24V;
4.Add speed(1-30).                                  9.Power 2: DC5-24V; (use one of power)
5.Reduce speed(30-1).                          10.Output signal port.



NOTE 1: “2”+“4”brightness add(1-10), “2”+“5”brightness reduce(10-1).



NOTE 2: switch of power, keeping press“3”and switch on power, the controller will change mode.

There are 3 mode, sender, receiver, and repeater.



NOTE 3; switch of power, keeping press“2”and switch on power, the controller will reset: Speed 20,

brightness 10, sender mode.

led lighting edit softwre master and slave control controller

led lighting edit softwre master and slave control controller

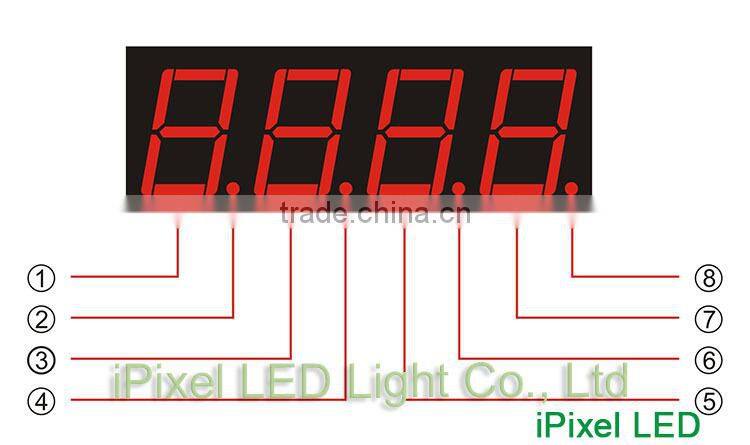

 1:Number of program.(1,2,3,4,5,6,7,8,9,0,A,B,C,D,E,F)

2:Blinking indicator read SD card.
3:“ led lighting edit softwre master and slave control controller”means single mode,“led lighting edit softwre master and slave control controller ”means cycle mode.
5,7:Show plays speed.

led lighting edit softwre master and slave control controller

led lighting edit softwre master and slave control controller

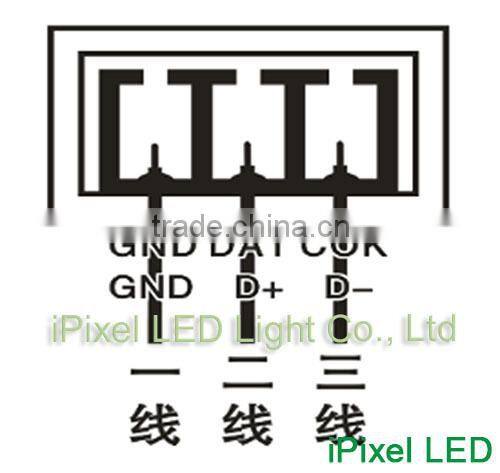

1

2

3

SPI

GND

DATA

CLK

DMX512

GND

D+

D-

led lighting edit softwre master and slave control controller

1.the playback speed +                                                2.Single / cycle

3.Play deceleration                                                       4.Play the file plus

5. brightness plus                                                         6. Clock plus

7. Less Brightness                                                        8. Clock Less
