TAIYITO Video Intercom Smarthome Intelligent Home Digital Indoor Gateway(7")
TAIYITO video intercom smarthome Intelligent Home Digital Indoor Gateway(7")
Key Information
MOQ | 1 Set |
Normal Delivery Time | 3~7 days |
Mass Production Time | 4 weeks |
Service Accepted | OEM/ODM |
Preferred Payment Terms | T/T, West Union, Ali Pay, Trade Assurance |

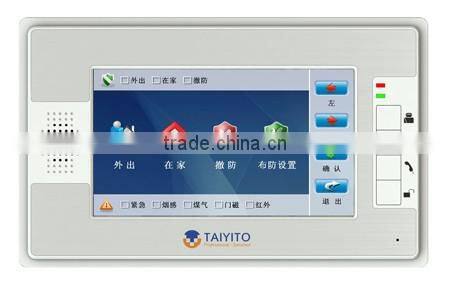

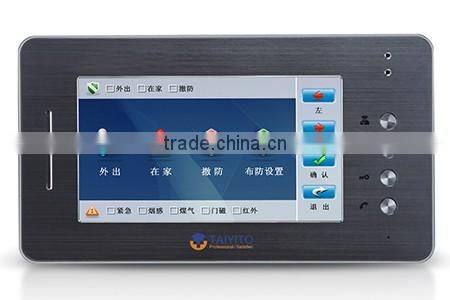

1. About TAIYITO visual intercom Intelligent Home Digital Indoor Gateway(7")
Popular Brief fashion design, ABS material Panel are are simple and elegant.
The Digital Intelligent video intercom system,adopts standard TCP / IP transport protocol, Network architecture using three layer switch-based network (LAN) transmission technology. Multi channel intercom at the same time can be allowed for this system, and there is alarm recording and alarm recording process management window on Management Center Computer. The Indoor Terminal User Manual adopts 7 inch Digital liquid crystal LED Touch Screen
2. Description of Basic Function for TAIYITO video intercom smarthome Intelligent Home Digital Indoor Gateway(7")
- Ø Visual intercom
Indoor terminal device could "accept" the visual call from outdoor, wall, management and other network terminal,could call all same type terminals and the management terminal under system with two-way visual intercom.
- Ø remote unlock/lock
Indoor terminal device has "unlock" function button, you could unlock/lock the gate door, house or anywhere has a electric door lock under the system.
- Ø Monitor control

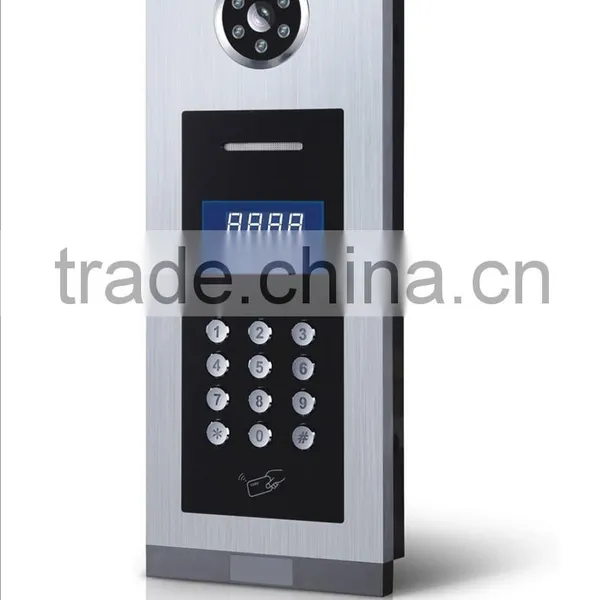

Indoor terminal device could control outdoor terminal/wall camera to monitor the gate area or the surrounding environment, and could monitor the linkage of the camera system.
- Ø Leave message
When user leaves home, the terminal device could set"answer"to "leave message", for leaving message from visitors.
- Ø Community call
Terminal device could video/call each other in the same community.
- Ø Call log
Terminal device could automatically record the missed calls, received calls and dialed calls and other messages, and display the standard recording time, for the query at any time.
- Ø Smart home (need plug device upgrade)
Terminal device could control the home appliances, external intelligent switch, works with a variety of scene modes. TDWZ6619-H11 could not do as a visual intercom but also a zigbee system controller which compatible with Taiyito smart home products.
- Ø Home security alarm
Terminal device could set extension standoff module, one button switch on/off, or a password switch. System with forced password disarm/alarm function, when it is on a non voluntary disarming, system send the alarm code to the management center.Indoor terminal can be connected with the infrared, emergency button, smoke, gas sensor, etc. and control not less than 8 standoff areas.
- Ø Status detection
The user terminal could state detection function to check the working status of standoff probe, it is convenient and quick
- Ø Fast self-test
fast explore the configure information of the terminal, such as the specific distribution of the network IP, room number and system version. To provide convenience support for the installation and maintenance of the project.
- Ø Automatically upgrade
Information terminal equipment system automatically detects the latest software version, and automatically update.

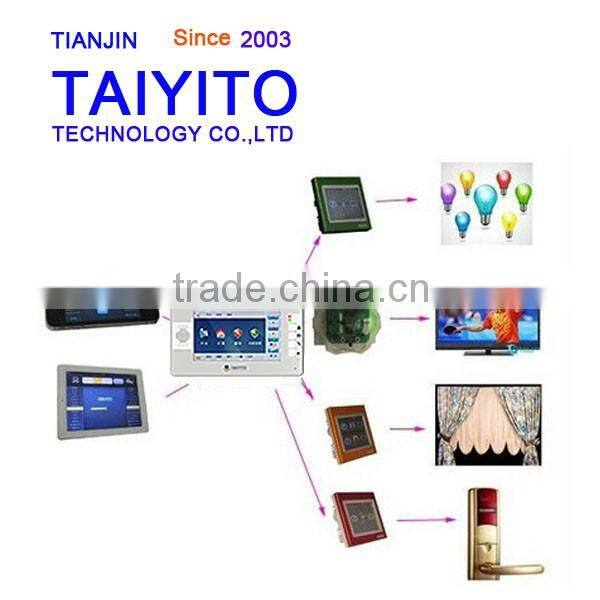

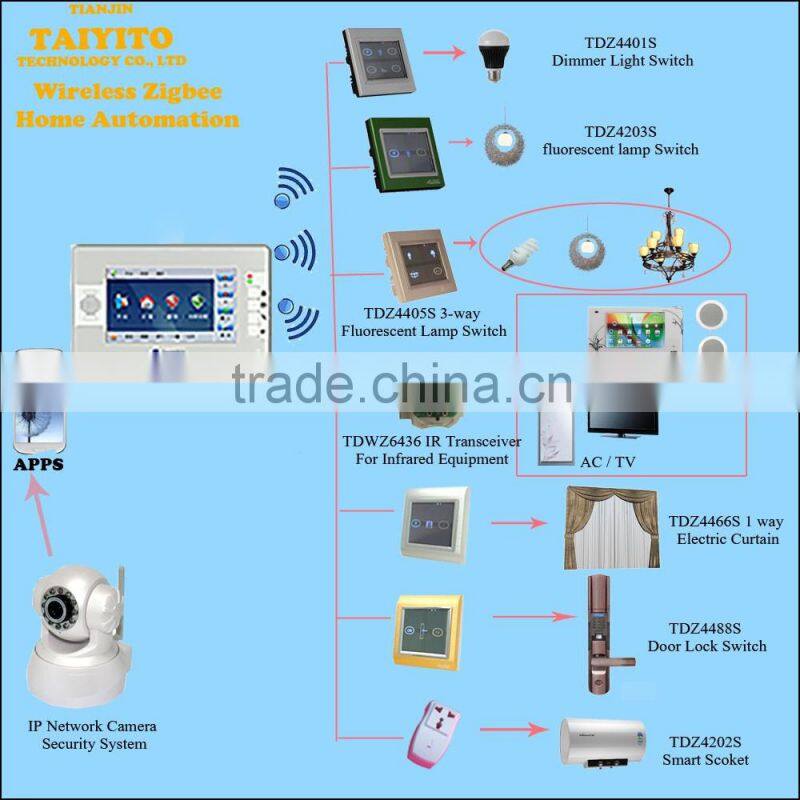

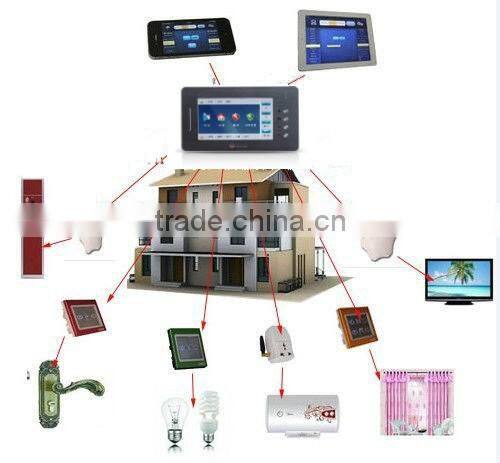

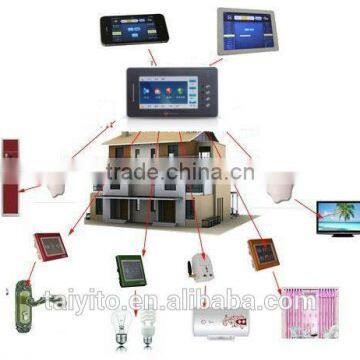

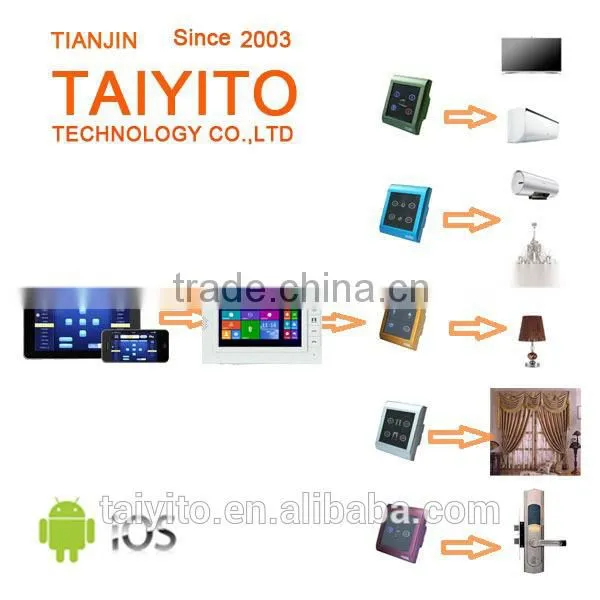

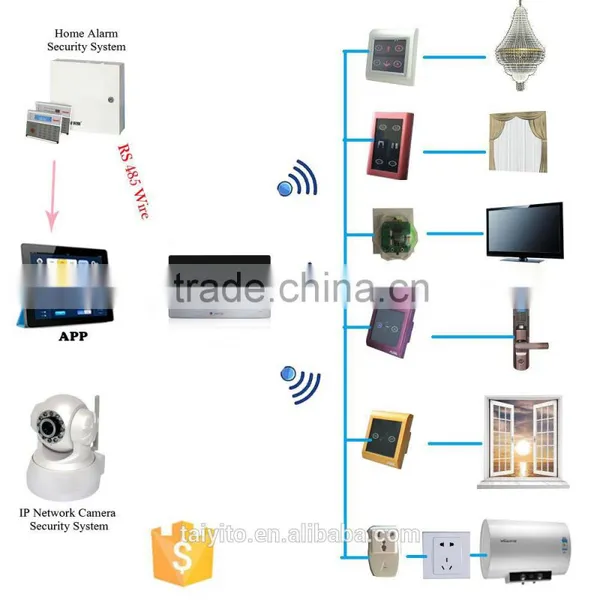

3. Function and Control Method for TAIYITO video intercom smarthome Intelligent Home Digital Indoor Gateway(7")
Function | IOS/Android App Control |
Touch Remote Control | |
Centralized Control | |
Scene Control | |
Timing Control | |
GSM Control | |
Control Method | On/Off and Dimmer of Light |
On/Off and Vol+/- of TV, AC, Back Ground Music | |
On/Off of Water Heater, Cooker | |
Open/Close, Up/Down and Pause of Electric Curtain, Window Opener | |
Open/Close of Fingerprint Door Lock | |
Monitoring of House by IP Camera | |
Compatible with Security System, Door Phone |
4. Product Technical Parameter of TAIYITO video intercom smarthome Intelligent Home Digital Indoor Gateway(7")
Commodity: | Intelligent Home Digital Indoor Gateway(7") |
Code: | TDWZ6619-HL |
Installation: | Wall type (depending on the specific mold) |
Display: | 7″ TFT LCD (colour) |
Touch screen: | High precision Four-wire resistance touch-screen |
Panel Material: | Silver / gold acrylic panel |
Resolution: | 800×480 |
Bell: | Electronic bell≥70dB |
Power: | DC 12V/1A |
Working electrical current: | < 300mA |
Working temperature: | -20ºC ~ +70ºC |
The Maximum power: | < 3.6W |
Outlook size: | 139(H) mm×245(W) mm×21(D) mm |
5. Our Company
Tianjin TAIYITO Technology Co., Ltd relying on the powerful strength in R&D, has produced a series of ZigBee products with independent intellectual property. We are the IEEE802.15.4 Wireless ZigBee home automation R&D Manufacturer, specializing in this field for more than 10 years.

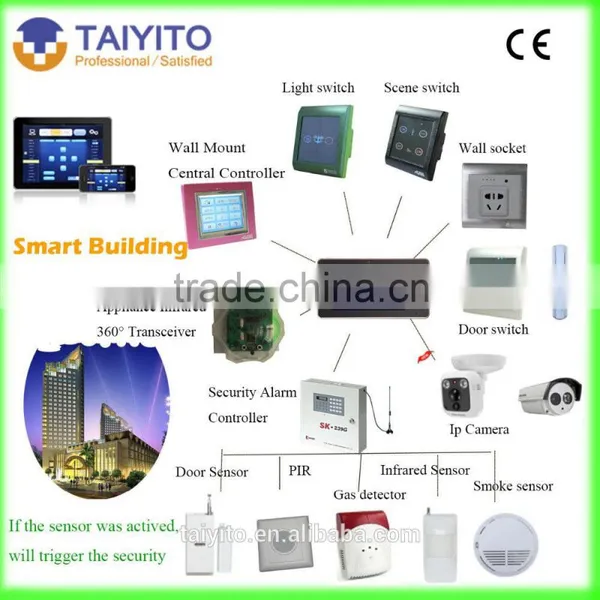

In line with international standard protocol, super network capacity and the anti-jamming ability of two-way communication function, the products are including fingerprint and password lock, light, curtain, fun, window, fresh air, fission and central air conditioning, infrared electric control and other electrical appliances. Besides, we also made technology interface with other relative home automation products, and then can realize the security alarm system, monitoring system, background music system, visual intercom system and so on.
6. Warranty & After Sale Service for TAIYITO video intercom smarthome Intelligent Home Digital Indoor Gateway(7")
1) Warranty: 1 year
2) Products should be sent back in their original condition by buyer due to technical problems.
3) Defective products should be returned in 7 days from the date of cargo receipt.
4) All shipping costs of return are borne by buyer.
5) Kindly please contact us ASAP when meet problem on products.
7. Payment of TAIYITO video intercom smarthome Intelligent Home Digital Indoor Gateway(7")
T/T, West Union preferred; Alibaba One-touch and Aliexpress are available

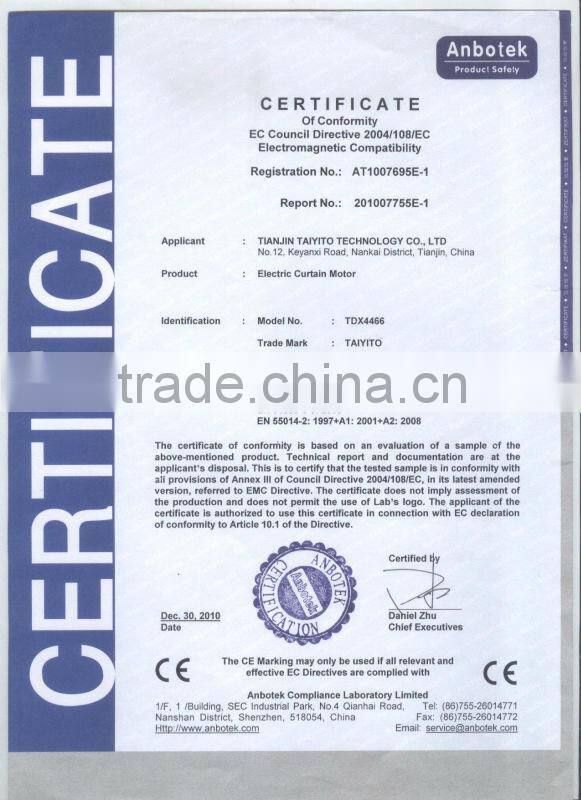

8. CE Certificate and Patent for TAIYITO video intercom smarthome Intelligent Home Digital Indoor Gateway(7")

9. Packaging and Shipping of TAIYITO video intercom smarthome Intelligent Home Digital Indoor Gateway(7")
10. Contact Information
TIANJIN TAIYITO TECHNOLOGY CO.,LTD
Office Address:
No.248, Baidi Road, NanKai District, TianJin, China
Zip Code: 300192
Website: Http://
Tel: 0086-22-87899781 / 0086-22- 27611356
If you have any more questions, please don't hesitate to contact us.
