DMX512 Encoder/Address coder
Product Specifications:
Dimensions 115 * 77 * 34mm output data signal RS485
Weight 200g storage interface SD card
Exterior color gray 256 gray levels for each RGB
Power Supply DC 5-24V Operating temperature -20 ~ 65 ℃
The maximum power consumption of 5W Ambient temperature -20 ~ 65 ℃
Output control port 1 port supporting software LED control software
Maximum control pixels by 512 pixels controlled IC: DMX512
Output port connection: ( Figure )
Coded connection
Line -GND
Tier -D +
Three lines -D-
Four lines -PI
Five lines -NC
Note:
To reduce the risk of electric shock, fire or personal injury , read and follow the warnings and precautions in order to prevent the occurrence of such events.
Do not install this controller in a magnetic and high-pressure environment
To reduce the component due to a short circuit caused the fire and the risk of damage , make sure the line is connected securely connected .
Make sure the controller altogether good ventilation and proper temperature environment.
Controller distance between the lamp within 10 m spacing lamps and lighting fixtures , please consult the manufacturer over the pitch range , you can add a signal amplifier.
Make sure the power supply voltage DC5-24V.
Do not plug the power cable in the open , be sure to turn on the power connection is secure and properly before the power .

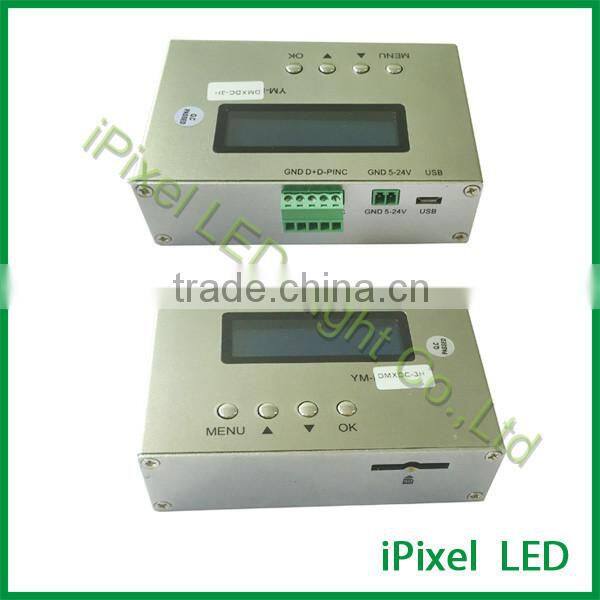

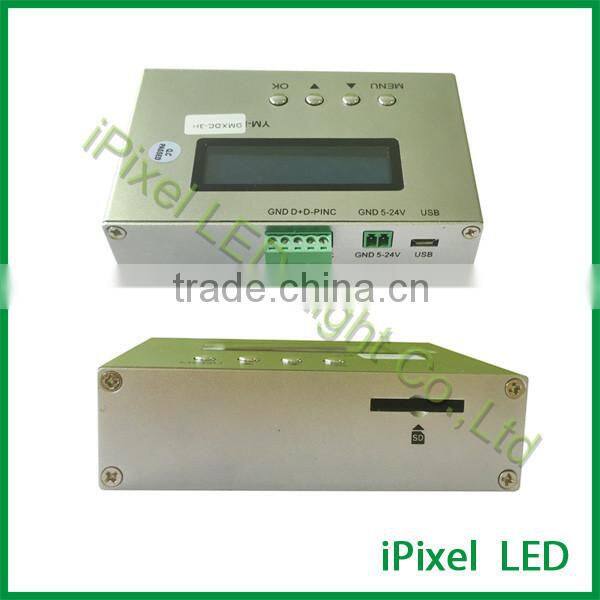

Picture:
