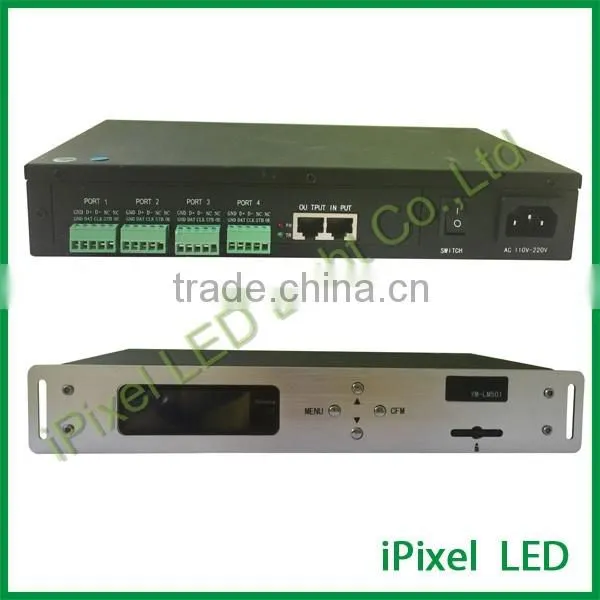

YM-LM501 DMX LED controller led matrix dmx controller
1.1;LM501 Key Description:
-LCD Display
-Up Arrow Increase the key: In the modified state (bottom left of the screen displays "+ -" sign) up cycle adjustment data value, otherwise the cycle selection menu with other levels;
-MENU - Function keys: to enter or exit the menu settings;
-Down Arrow- Reduce the key: In the modified state (bottom left of the screen displays "+ -" sign) down MENU cycle adjustment data value, otherwise choose another menu with circulating levels;
-CFM - OK button: Select the menu item or data value is determined;
-SD card reader;
-Flag models;
-Power supply AC100-220V;
-Power switch;
-Cable input / output ports;
-FH red light;:TR green indicator light;
-A signal output port.
-Switching languages
Chinese: In the main interface, press button for three seconds or more;
English: In the main interface, press button for three seconds or more. ,
1.3,LCD screen displays:
After power-up, the controller enters normal working condition. LCD displays the main screen. Screen displays the IP address, host (M), MADRIX use to set Subnet and Universe
| Size | 260*154*45mm | The output data signal | TTL |
| Weight | 1085g | Storage Interface | SD card |
| Color | Gray | Gray levels | 65536 |
| Power Supply | AC220V 50Hz | Operating Temperature | -30~70℃ |
| Power Consumption | Maximum 10W | Ambient temperature | -30~70℃ |
| Output control port | 4 port | Supporting software | LED control software |
| Maximum control pixels | 4*512 Pixel | ControllableIC | |
| Single line:TM1804,TM1829,UCS1903,TLS3001,TLS3008,,, | |||
| Two lines:DMX512,P9813,LPD6803,LPD8806,SM16716,WS2801,MBI6021,MBI6024,MY9221,,, | |||
