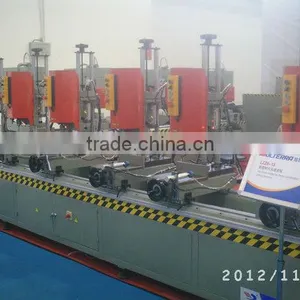

Aluminum Multi head drilling machine for Curtain walls
This Machine is popular for Processing Aluminum Profiles and curtain walls
Product Details:
Detailed information of Multi head drilling machine for curtain walls are as followed:
Super quality! Lowest price!! Best service!!!
As a Manufaturer, We are looking forward to finding the agents of our products all over the world!!
Equipment Features:
1. Used for drilling holes on aluminum profiles and curtain wall profiles, expecially apply for long workpieces and mass production.
2. The processing Max. profile section size is 250*250mm, and the max. processing length is 5000mm.
3. Multi-head boring anchor can be fixed to meet multi-holes processing requirement.
4. Feeding system adopts hydraulic-damping cylinder, which ensures a smooth feeding.
5. Imported PLC control system makes a possible machine heads' linkage.
Main Specification and Technical Parameters:
| Mode | LZZ6-13 |
| Power Supply | 380V 50Hz |
| Cutting Motor Power | 4*0.75kw |
| Max Drilling Hole Diameter | 13mm |
| Max. Distance Between Two Drilling Holes | 5000mm |
| Min. Distance Between Each Group Holes | 300mm |
| Power Unit Quantity | 4 |
| Max. Moving Distance at Horizontal Direction of Drilling Head | 120mm |
| Moving Distance at Vertical Direction | 150mm |
| Worktable Size (L*W) | 300*220mm |
| Drilling Head Feeding Travel | 125mm |
| Feeding Pressure | 0.5~0.8MPa |
| Max. Processing Profile Section Size | 250*250mm |
| Overall Dimension(L*W*H) | 5500*1100*1800mm |
| Weight | about 880kg |
After-sale service

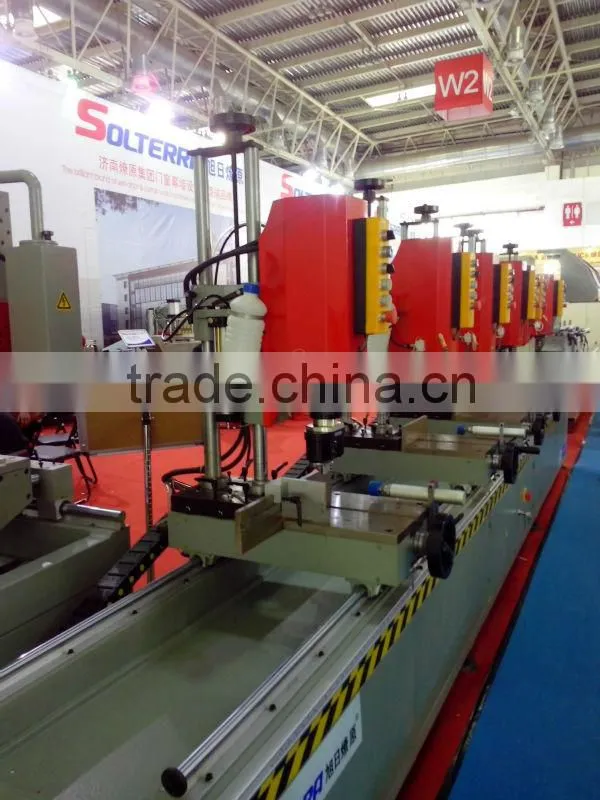

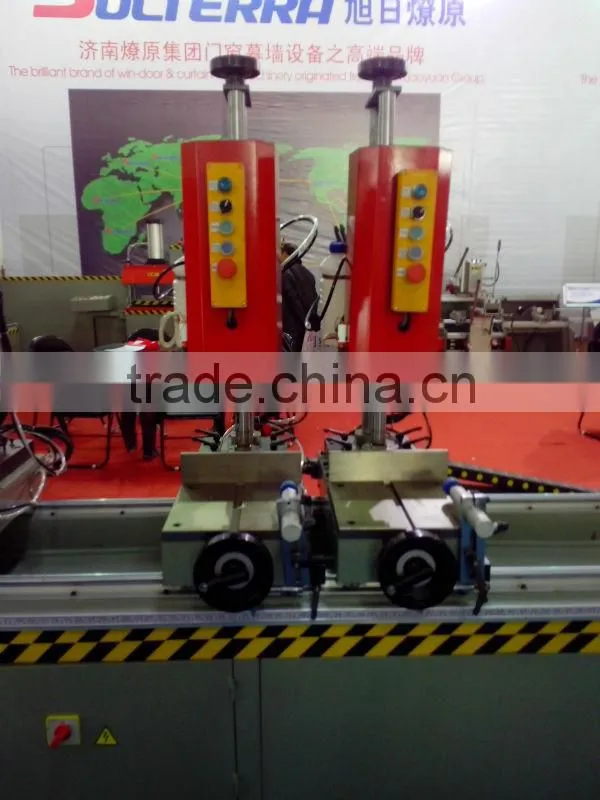

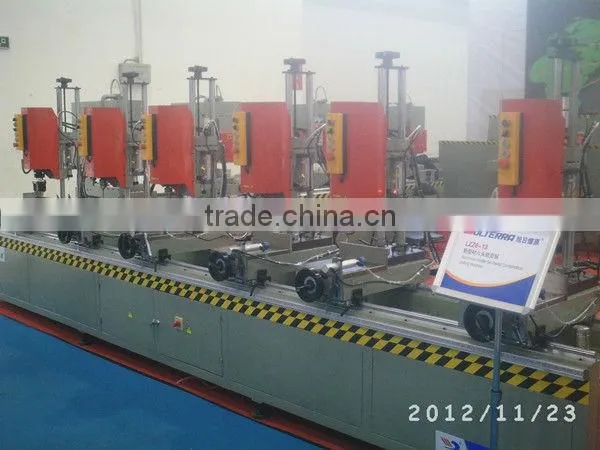

The Machine Picture:
Company Profile
Jinan Liaoyuan Machine Co.,Ltd Attend Annual Machinery Exhibition
With Fully ISO9001 Approved, For more information about the certificate,please feel free to contact me!!
