Brick Machine QT5-15
1,Cycle time:15-20s
2, pallet size:1100*560*20mm
3, power:37.4kw
ISO2008&CE&SGS

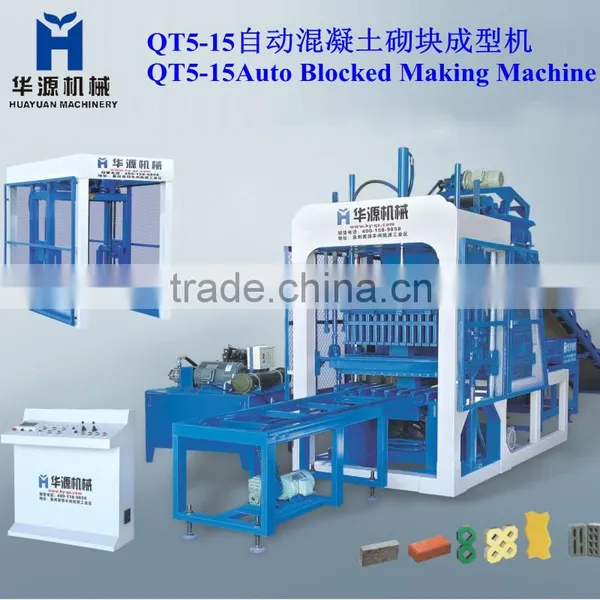

New technology QT5-15 automatic cement brick machine from famous brick making machine China Supplier
1. Brief intruduction of QT5-15 automatic brick machine :
1 It is a compact brick machine with electric and hydraulic system, each procedure action locks with each other to guarantee the machine operate safely, easily and dependablely.
2 Through mold-releasing oil cyclinder, the mold box was locked into the vibration table with high rigidity to reach the synchronous vibration, so that the concrete can be fluidified and exhausted in two or three seconds to ensure the high-density, especially suitable to produce the standard blocks, which can be piled up immediately so that the pallet investment can be saved directly.
3 The unique forcing charge system can make use of various kinds of industrial waster and material such as coal ash, cement, sand, stone, slag, and so on. The machine can severs several purposes and produce various specification standard bricks, concrete blocks, porous blocks, paving bricks etc.

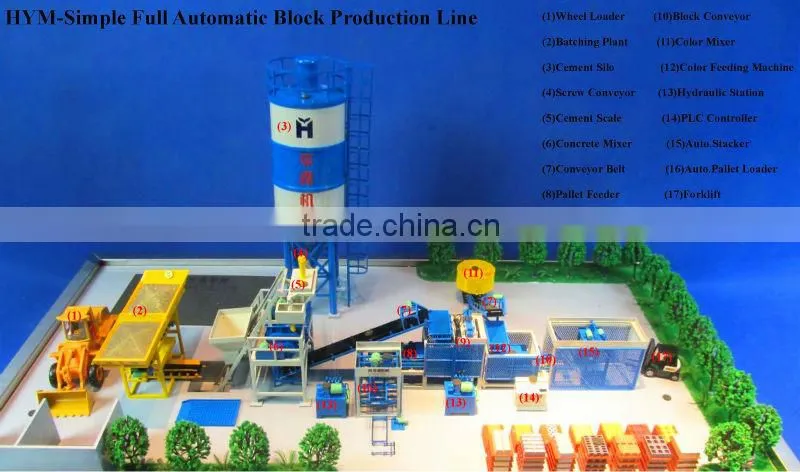

2, QT5-15 automatic brick machine production line SPECIALTY :
You choose our brick machine you choose the best.
1.It almost can make all kinds of Block, paver curbstone,hourdis,EPS brick and so on
2.It is easy to change the mould. It only need about 10-20 minute.
3.Low investment and achieving much faster results, you can profit in half to one year after investing.
4.Electricity element: we choose the product of German Schneider/Mitsubishi
5.Hydraulic elements: we choose the products of Japan Yuken.
6.Force feeder: Feeding cement rapidly equality and directional into mould box ,the error of each block weight is less 2% and the intension is under 10%.

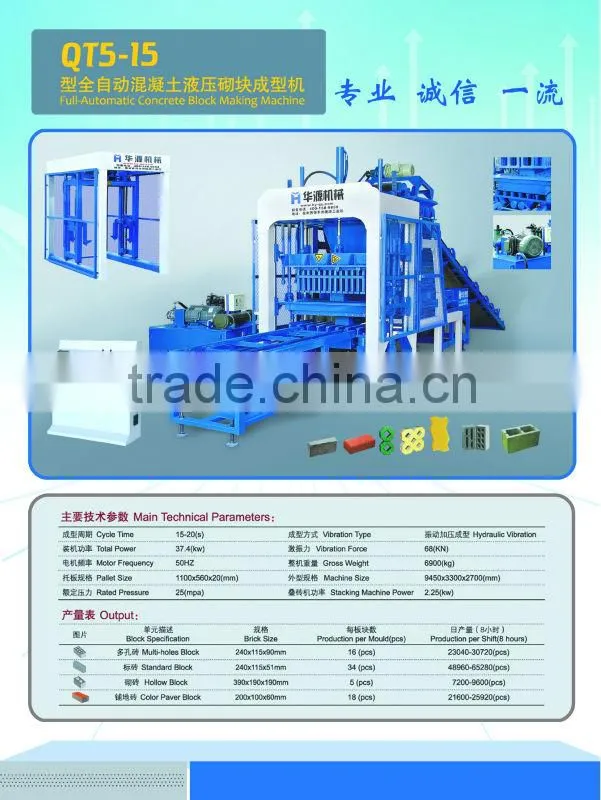

3,Main technical parameters of QT5-15 automatic cement brick machine:
Cycle Time |
15-20 S |
Vibration Type |
hydraulic vibration |
Total Power |
28kw |
Vibration |
60(KN) |
Vibration Frequency |
4600r/min |
Gross Weight |
8000(kg) |
Pallet Size |
1050x580x20mm |
Machine Size |
7400x1950x2800mm |
Rated Pressure |
16(mpa) |
Stacking Machine Power |
2.2kw |
4.QT5-15 automatic brick machine Capacity:
Brick |
Sizes |
Output/ mould |
Pcs/Shift(8hours) |
picture |
Blocks |
390x190x190mm |
5 |
7200-9600 |
|
Porous bricks |
240x115x90mm |
16 |
23040-30720 |
|
Interlocking block |
200x100x60mm |
18 |
21600-25920 |
|
Solid bricks |
240x115x51mm |
34 |
48960-65280 |
|

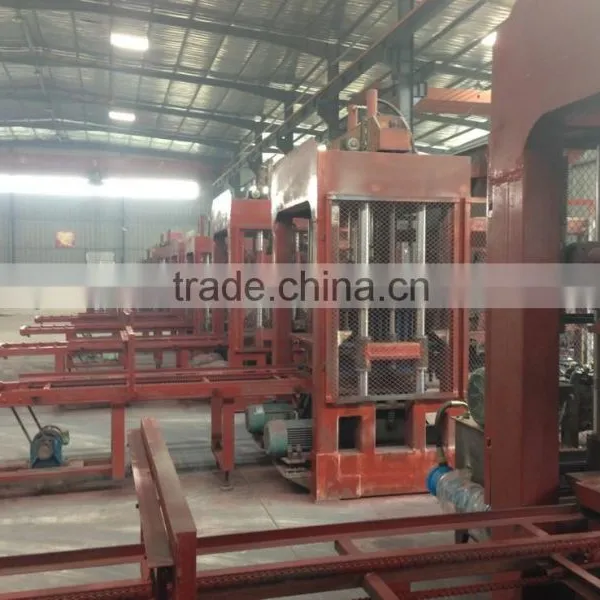

5.Workshop and Products Shows HYM brick machine:

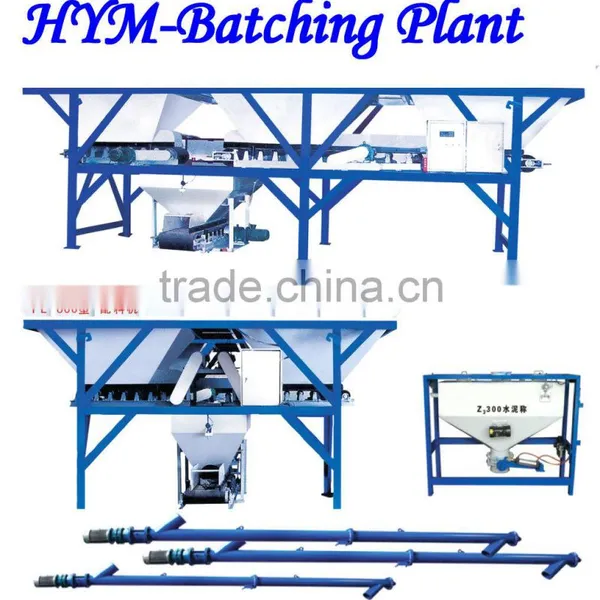

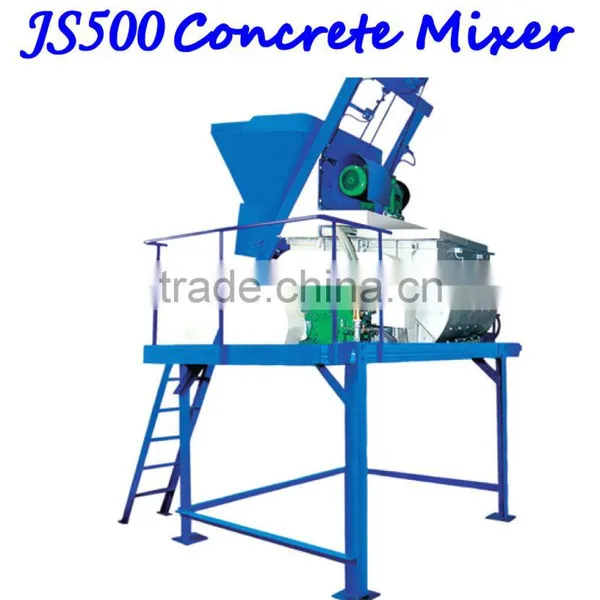

6, Auxiliary Products suit for automatick brick machine:
7.Our world family for Huayuan brick machine:

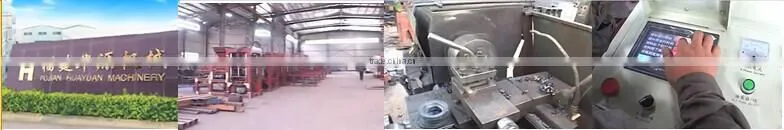

8,Introduce Huayua Machinery Manufacturer:
HuaYuan brick machne which is founded in 1988, is a leading manufacturer and exporter of concrete block machinery with over 20 years experience.with the high degree of automation, reliable and stable quality and first-class after-sales service, HuaYuan brick machine has gained a high compliment from its clients.
HY series brick machne production lines, with superior quality,strong durability and high efficiency, are improved by the combination advanced technology and the value repeat and new clients.These lines are applicable to produce hollow bricks, interlock bricks, paving bricks, solid bricks etc.
In the future, we the HuanYuan Men will always sticks to the principle of " Quality creates value", insist on innovation and keep pace of the world. We will adhere to honest and practical work to make better products and perfect service. Let’s creates a beautiful and harmonious business together.
