JF used portable bus truck spray booth room clean bake and paint painting baking room more clean efficient environment for sale

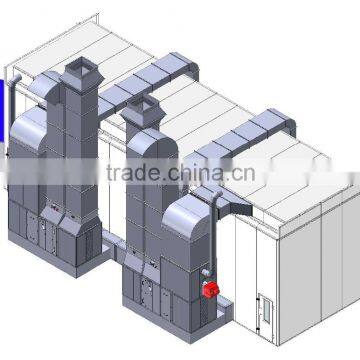

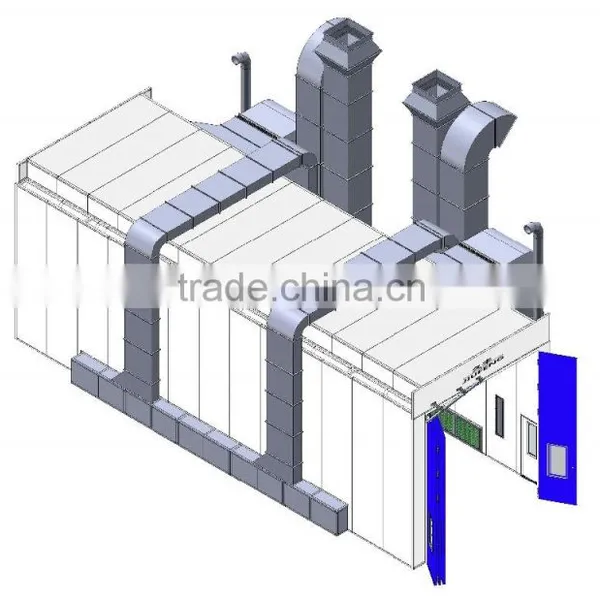

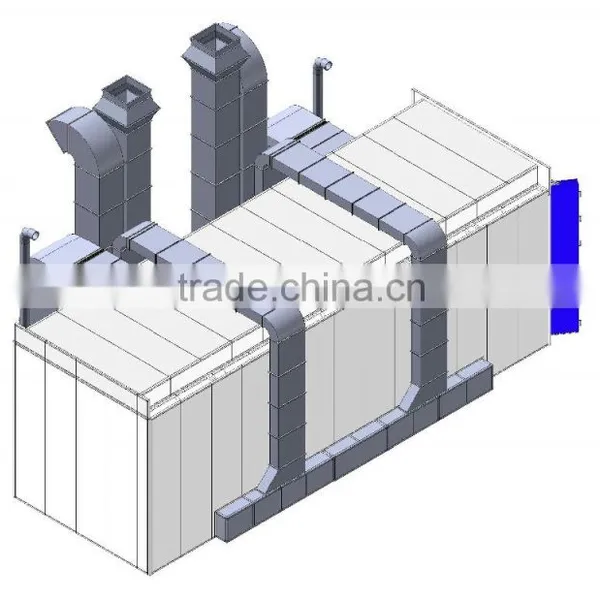

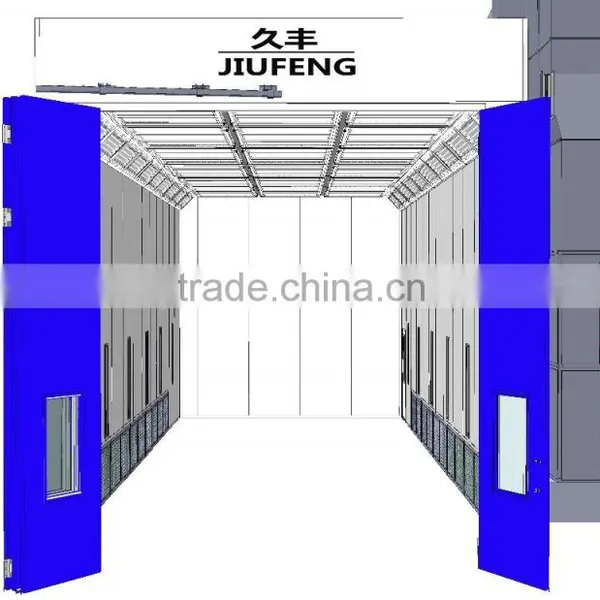

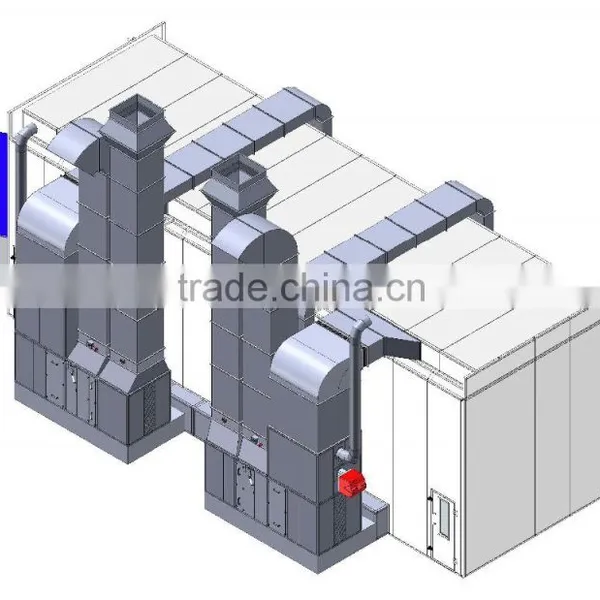

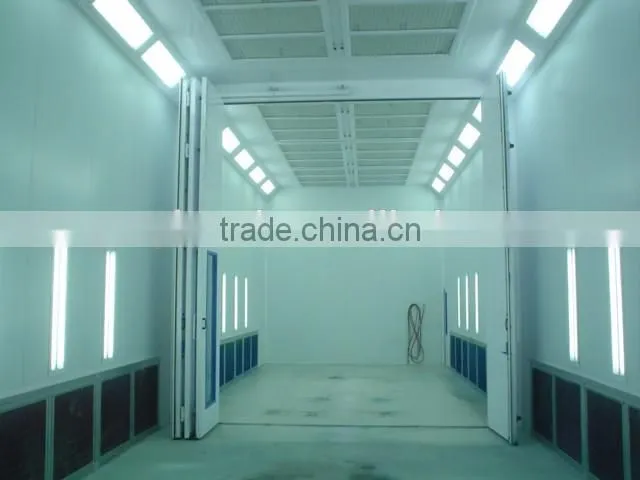

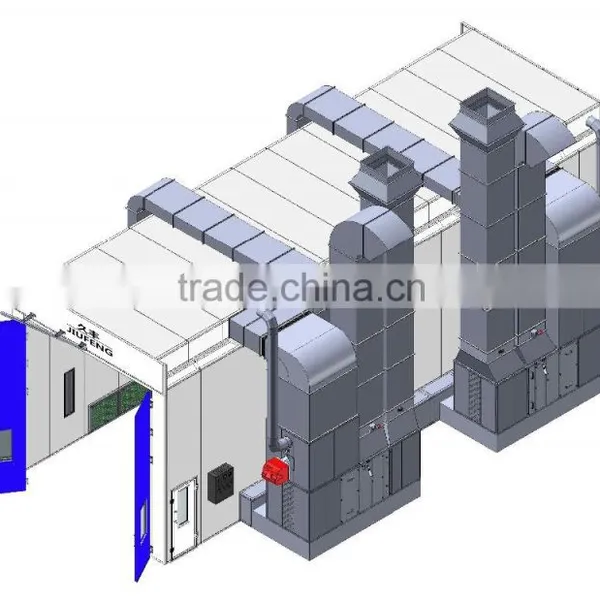

Product picture
Product components
Specification
Model: JF 15B
| Booth Dimensions | |
|---|---|
| - Internal Size(LxBxH) | 15000x5000x5000mm |
| - External Size(LxBxH) | 15150x7700x5900 mm |
| Foundation and Floor | |
| - Loading Capacity of Galvanized Grating | NO |
| - Surface Area | 33M² ( 2 rows air exhust plenum chamber) |
| - Metal Basement | NO |
| - Drive-in Ramps | NO |
| Wall and Door | |
| - Steel Wall and Roof Panel | Double Construction with Insulations EPS 50mm |
| - Thickness | Double Construction with Insulations EPS 50mm |
| - Folded Entrance Door With Safety Glass Window | 3200x2700 mm(BxH) |
| - Operator’s Door With Safety , Glass Window | 800x2000 mm(BxH) |
| Lighting | |
| - Ceiling Lightings | 8 Units, each 4x36 W, Total 1152W |
| - Side Lightings | 8 Units, each 2x36 W, Total 576W |
| - Brightness | >1000 Lux, IP54 Grade |
| Filtration | |
| - Prefilters | Fiberglass,Paint-Stop-Filters Plate type duel filters |
| - Ceiling Filters | EU5 Fine Filters, 6 Units |
| - Floor Filters | Fiberglass, Paint-Stop-Filters |
| Ventilation System | |
| - Direct Drive Motor (Fresh Air) | 2x7.5KW,970RPM,380V,50HZ motor certification:CE |
| - Direct Drive Motor (Exhaust Air) | 2x7.5KW,970RPM,380V,50HZ Domestic motor certification:CE |
| - Fan Capacity | 50.000m³/h |
| - Air Flow Speed | +/- 0.20 m/sin an empty booth |
| Heating System | |
| - Heating Exchanger | Stainless Steel 1Gr18Ni9Ti |
| - Heating Exchange Capacity | 2x232KW(260.000kcal/H)RIELLO |
| - Max. Drying Temperature | 80 °C |
| - Heating time | 10-15 min (from 20 to 60°C) by Drying Phase |
| - Heating Type (on option) | Diesel / Gas Burner |
| Control Board | |
| - Control system | Stander control Delta Depressurization start system EN60204-1-2006 |
| - Function | Spraying ,baking, warming spray paint, emergency stop switch |
| - PLC | yes |
| - Inverter control | On option |
| - Import element | master device import element |
| - Overpressure Manometer | yes |
| - Alarm equipment | yes |
Export professional packages.Our packages are professional. We use the iron bracket package and it can fix the products and prevent them from broken. Moreover, we will label every components and it is easy for the customers to distinguish.
Factory
We are professional manufacturer for 12 years in China
Warranty time: 2 years. During the warranty time, any time, any problem caused by products’ quality,has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL or TNT Carrier.
Service time: Life long maintenance
Shenzhen Jiufeng Electromechanical Equipment Co., Ltd. is a professional manufacturer for car spraying, baking and largest automobile spraying/baking booth in South China since Year 2002 . With strong R&D experiences, advanced technology and guarantee quality , JF brand spray booth is getting more and more popular all over the world .
JF target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, JF enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives.
We has passed the ISO9001:2000 quality system certification and ensures that every department follows the articles of the system. We stick to the philosophy of precise, accurate, harmonious and mutual-benefit are devoted to the development, design, manufacturing and sales of the products, and make the products more practical, beautiful, secure, accurate, environmental friendly and energy saving .
We provide a design service, with advice on all aspects of all the build, including airflow, ducting, filters, lighting, environmental issues and health and safety issues.
If you wish to discuss any aspect of your project
...Please feel free to contact us...
Contact person: Yecole Ye
Phone:+ 86 15089362579
Trade manager: cn1518809459ufuq
