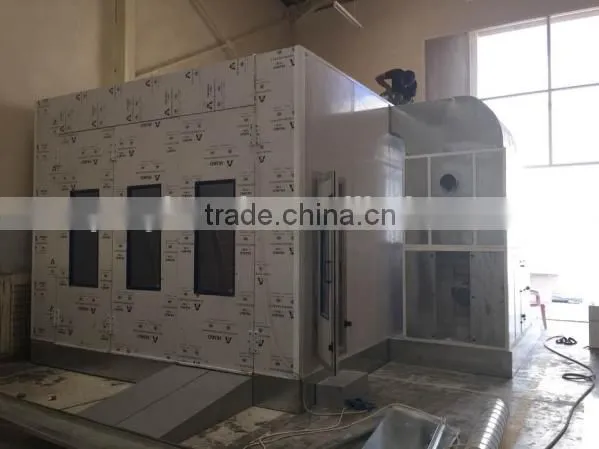

JF durable and cheap minibus painting booth for sale bake and paint room for fast selling

Configuration

Inside size

8600×4000×3500mm(L×W×H)

Outside size

8700×5550×4320mm(L×W×H)

Main door

Sheet metal manual door, 2+1 folding gate,3000×3400mm(W×H), sheet metal manual big glass observation window.

Service door

One set, with pressure lock, 650×1850mm(W×H), with observation window.

Basement

Galvanized plate bending forming. two rows of Strengthening bearing grids and three rows of metal antiskid diamond plate. Basement height is 300mm. No floor filter under the grids, with 2 piece of drive-in ramps(900*2000(W×L))

Wall board

Thickness: 50mm, Socket type, width 1150mm, Color steel thickness the inner and outer:0.426mm, wallboard fill with EPS

Lighting

Ceiling light: 10 sets, each set with 3×36W LED tube, Side light: 12sets, each set with 2×36W LED tube , Total Brightness≥1100Lux

Inlet fan

1 set of turbo fan, 11kW, air volume: 30000 m3/h.

Exhaust fan

1 set of turbo fan, 11kW, air volume: 30000 m3/h, standard exhaust pipe: 3 straight and 1 bend.

Heating system

Italian RIELLO G10 diesel burner, stainless steel high efficiency heat exchangers, spray paint throttle conversion using a pneumatic mechanism.

Filter system

Pre-filter,Ceiling sub-high efficiency filter, fiber glass filter

Roof panel

Galvanized plate bending forming

Control system

Painting, warm painting, baking, baking time setting, lighting, emergency stop switch, power:380V(220V)/50Hz

Total power

24.5Kw
