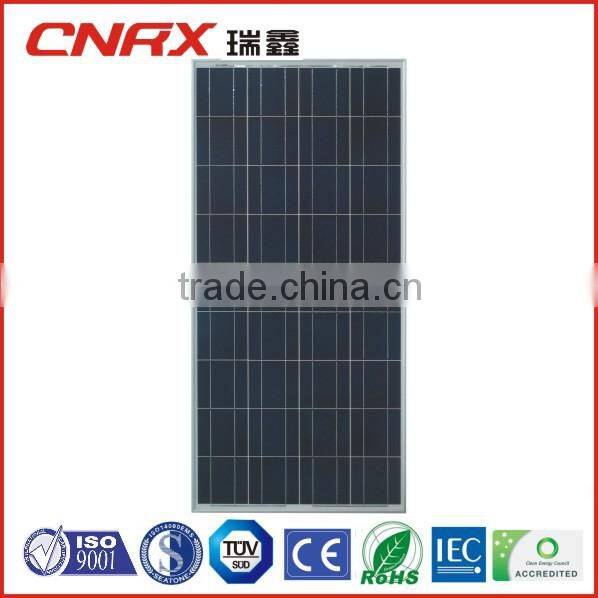

China Manufacturer Ruixin Group direct price of 36cells poly Solar panel max power 150Watt price per watt with TUV CE IEC ROHS
20 Years Professional Manufacture / TUV CE Rohs certificate / 600MW per year/ quality warranty
. 10 years limited product warranty.
. 15 years at 90% of the minimal rated power output.
. 25 years at 80% of the minimal rated power output.
| Model | Wp (W) |
Voc (V) |
Isc(A) | Vmp (V) |
Imp (A) |
L*W*H(MM) | Weight (Kg) |
Description |
| RXM150-36 | 150 | 21.96 | 9.11 | 17.98 | 8.35 | 1480*680*35 | 12 | 4*9 |
| Electrical Characteristics | ||||||||
| Size and Number of cells | 156mm*156mm 36pcs(4*9) | |||||||
| Maximum Power(Pmax) | W | 150 | ||||||
| Tolerance | ±3% | |||||||
| Open Circuit Voltage(Voc) | V | 21.96 | ||||||
| Short Circuit Current(Isc) | A | 9.11 | ||||||
| Maximum Power Voltage(Vmp) | V | 17.98 | ||||||
| Maximum Power Current(Imp) | A | 8.35 | ||||||
| Max.syst.Oper.voltage | V | 1000V | ||||||
| Dimension | mm | 1480*680*35 | ||||||
| Weight | kg | 12 | ||||||
| Operate Temp.scope | ℃ | -40/+85 | ||||||
| Glass,Type and Thickness | Ultra-white,Low Iron,Tempered Glass 3.2mm | |||||||
| Junction Box | IP65,Pass TUV | |||||||
| Cable Type,Diameter and Length | 1×2.5mm²,TUV certified,900mm | |||||||
| Bypass-Diods | 2 | |||||||
| Frame | Aluminum alloy of silvery white | |||||||
| Encapsulant | EVA | |||||||
| Back | TPT | |||||||
| Mechanical Load | 5400Pa | |||||||
| Resistances | 227gsteel ball fall down from 1m height and 60m/s wind | |||||||
| Minimum order quantity | 10 pcs | |||||||
| Delivery time | 10to15 days | |||||||
| (Standard test condition:AM1.5,1000W/m2,25℃) | ||||||||
| (We can guarantee 5 years with 100% performance guarantee,10 years 90% rated power output,25 years 80% rated power output.) | ||||||||
. products are packed by paper carton or wooden box, we usually make the package by customers’ need.
. Packaging: standard export package suitable for long sea voyage and tough handling
. Delivery Detail: 10-25 days depending on order quality
. Founded in 1995, authorized as the national non-region enterprise group in 2001.
. 180000 square meters for producing.
. Certificate: ISO9001, ISO14001, OHSMS18001, TUV,CE,ROHS,CCC, etc.
. Above 1500 Employees.
. More experience for projects, OEM, ODM.
. Hi-tech professional and efficient R&D team.
. Newest technology and advance equipments.
.Quick service and warranty.
. Are you factory?
Yes, we are a leading manufacture for solar panel, cable, transformer in China.
. Do you supply samples?
Samples are available for testing and market test.
. Warranty of Solar Panel
By our warranty terms.
. Guides and after- service Consultancy
After-service consultancy just for you and to make your problems to solve easily. Hours 24
. OEM & ODM Service
We have effective teams for R&D, engineering, production, QA, Sales, and advance equipments, assuring a high quality product and prompt delivery for customers.
. Payment terms?
T/T, L/C, credit, West union for order now.
