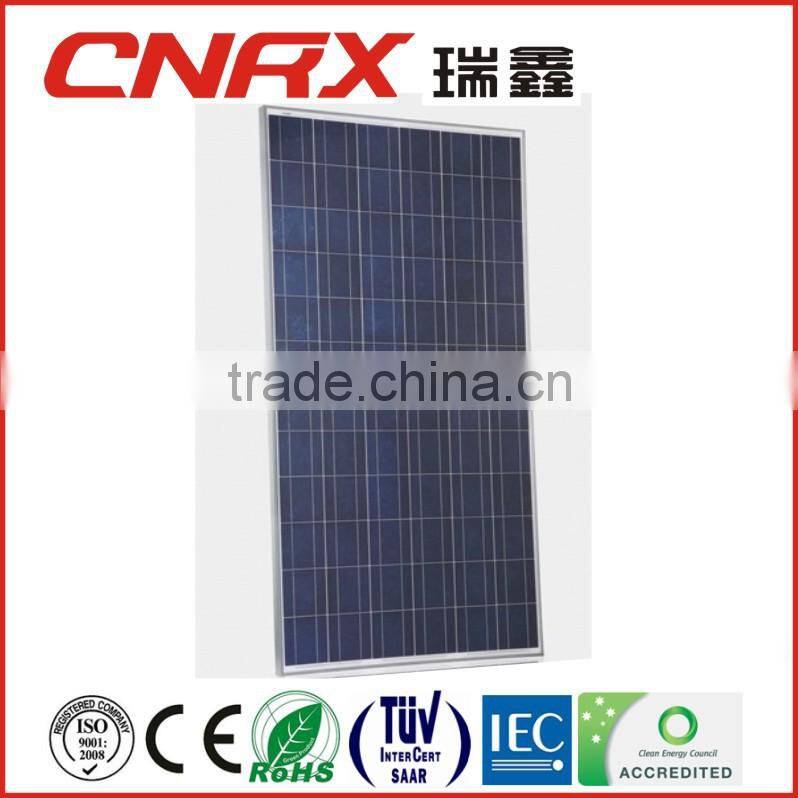

China manufacturer Best price for 305 watt POLY solar module 72cells 156*156 solar panel with TUV CE IEC ROHS
20 Years Professional Manufacture / TUV CE Rohs certificate / 600MW per year/ quality warranty
. 10 years limited product warranty.
. 15 years at 90% of the minimal rated power output.
. 25 years at 80% of the minimal rated power output.
Type |
RX295P-72 |
RX300P-72 |
RX305M-72 |
RX310P-72 |
RX315P-72 |
Max-Power Pm(W) |
285 |
290 |
295 |
300 |
305 |
Module-Power Range(W) |
290>Pm≥285 |
295>Pm≥290 |
300>Pm≥295 |
305>Pm≥300 |
Pm≥305 |
Power Tolerance(W) |
+0~+5 |
+0~+5 |
+0~+5 |
+0~+5 |
+0~+5 |
Max-Power Voltage(V) |
36.4 |
36.5 |
36.6 |
36.7 |
36.8 |
Max-Power Current lm(A) |
7.83 |
7.95 |
8.07 |
8.19 |
8.30 |
Short-Ciruit Current lsc(A) |
8.55 |
8.70 |
8.85 |
8.90 |
9.15 |
Open-Circuit Voltage Voc(V) |
45.1 |
45.3 |
45.5 |
45.7 |
45.9 |
Max-System Voltage(VDC) |
1000V(IEC) |
||||
Cell Efficiency(%) |
16.97 |
17.28 |
17.59 |
17.9 |
18.21 |
Module Efficiency(%) |
14.72 |
14.98 |
15.23 |
15.49 |
15.75 |
Max.Series Fuse(A) |
15 |
||||
Pm Temperature Coefficients(W/℃) |
-1.1041 |
||||
Lsc Temperature Coefficients(A/℃) |
0.00418 |
||||
Voc Lsc Temperature Coefficients(V/℃) |
-0.1261 |
||||
NPCT Nominal Operating Cell Temperature |
47±2℃ |
||||
Cable type,Diameter and Length |
4mm,TUV certified,900mm |
Type of Connector |
Compatible Type IV |
Number,type and arrangement of cells |
72 pcs,Mono-Crystalline Silicon(6×12) |
Cell Size(mm) |
156×156(D200) |
Dimension(mm) |
1950×990×45 |
Weight(kg) |
26 |
No.of Draining Holes in Frame |
10 |
Glass,Type and Thickness |
High Transmission,Low lron,Tempered Glass 3.2mm |
. products are packed by paper carton or wooden box, we usually make the package by customers’ need.
. Packaging: standard export package suitable for long sea voyage and tough handling
. Delivery Detail: 10-25 days depending on order quality
. Founded in 1995, authorized as the national non-region enterprise group in 2001.
. 180000 square meters for producing.
. Certificate: ISO9001, ISO14001, OHSMS18001, TUV,CE,ROHS,CCC, etc.
. Above 1500 Employees.
. More experience for projects, OEM, ODM.
. Hi-tech professional and efficient R&D team.
. Newest technology and advance equipments.
.Quick service and warranty.
. Are you factory?
Yes, we are a leading manufacture for solar panel, cable, transformer in China.
. Do you supply samples?
Samples are available for testing and market test.
. Warranty of Solar Panel
By our warranty terms.
. Guides and after- service Consultancy
After-service consultancy just for you and to make your problems to solve easily. Hours 24
. OEM & ODM Service
We have effective teams for R&D, engineering, production, QA, Sales, and advance equipments, assuring a high quality product and prompt delivery for customers.
. Payment terms?
T/T, L/C, credit, West union for order now.
