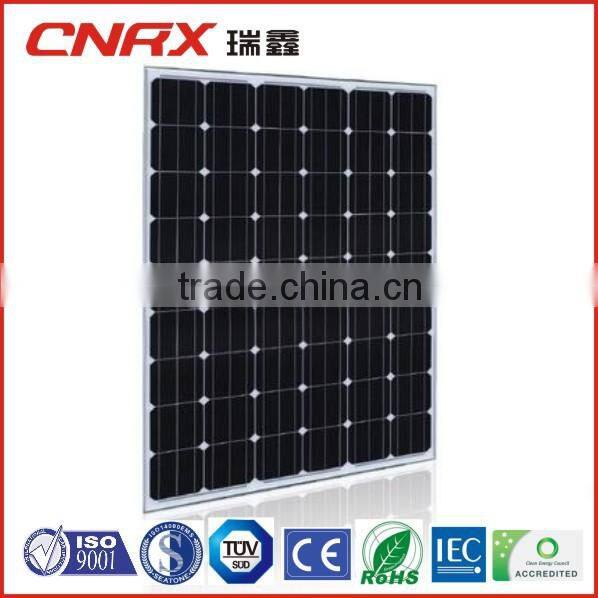

Help CenterChina Manufacturer Ruixin Group FOR Home Solar Systems 54cells MONO Solar Panel Max Power 230Watt Price per Watt With TUV CE IEC
Related Products
-
China Manufacturer Best Price for 305 Watt POLY Solar Module 72cells 156*156 Solar Panel With TUV CE IEC ROHSNegotiableMOQ: 100 Pieces -
China Supplier YueQing Ruixin Group Solar Module Best Price for MONO 72 Cell 156*156 Solar Panel Module With TUV CE IEC ROHSNegotiableMOQ: 100 Pieces
-
Mono 250w Solar Panel in China With TUV CE CertificateUS$ 0.49 - 0.62MOQ: 1 Watt
-
Mono 50watt Solar Panel Manufacturers in China Factory Direct Price High Quality With TUV ROHS CE in DubaiNegotiableMOQ: 100 Pieces
-
Mono 50watt China Solar Panel Supplier 18v Solar Module Factory Direct Price High Quality With TUV ROHS CENegotiableMOQ: 100 Pieces
China Manufacturer YueQing Ruixin Group home solar systems 54 pcs cells Poly solar panel max power 225W price per watt with TUV
20 Years Professional Manufacture / TUV CE Rohs certificate / 600MW per year/ quality warranty
. 10 years limited product warranty.
. 15 years at 90% of the minimal rated power output.
. 25 years at 80% of the minimal rated power output.
Type |
RX210M-54 |
RX215M-54 |
RX 220M-54 |
RX225M-54 |
RX 230M-54 |
Max-Power Pm(W) |
210 |
215 |
220 |
225 |
230 |
Module-Power Range(W) |
215>Pm≥210 |
220>Pm≥215 |
225>Pm≥220 |
230>Pm≥225 |
Pm≥230 |
Power Tolerance(W) |
+0~+5 |
+0~+5 |
+0~+5 |
+0~+5 |
+0~+5 |
Max-Power Voltage(V) |
27.6 |
27.9 |
28.2 |
28.6 |
29.1 |
Max-Power Current lm(A) |
7.6 |
7.7 |
7.8 |
7.85 |
7.9 |
Short-Ciruit Current lsc(A) |
8.48 |
8.6 |
8.7 |
8.85 |
8.9 |
Open-Circuit Voltage Voc(V) |
33 |
33.3 |
33.7 |
33.9 |
34.4 |
Max-System Voltage(VDC) |
600V(UL)/ 1000V(lEC) |
||||
Cell Efficiency(%) |
16.3 |
16.7 |
17 |
17.4 |
17.8 |
Module Efficiency(%) |
14.3 |
14.6 |
15 |
15.3 |
15.6 |
Max.Series Fuse(A) |
15 |
||||
Pm Temperature Coefficients(W/℃) |
-1.1041 |
||||
Lsc Temperature Coefficients(A/℃) |
0.00418 |
||||
Voc Lsc Temperature Coefficients(V/℃) |
-0.1261 |
||||
NPCT Nominal Operating Cell Temperature |
47±2℃ |
||||
Cable type,Diameter and Length |
4mm,TUV certified,750mm |
Type of Connector |
Compatible Type IV |
Number,type and arrangement of cells |
54 pcs,Mono-Crystalline Silicon(6×9) |
Cell Size(mm) |
156×156 |
Dimension(mm) |
1480×990×40 |
Weight(kg) |
17 |
No.of Draining Holes in Frame |
10 |
Glass,Type and Thickness |
High Transmission,Low lron,Tempered Glass 3.2mm |
Packing Configuration |
24 pcs/box |
Quantity/Pallet |
48 pcs/pallet |
Loading Capacity |
720 pcs/40ft |
. products are packed by paper carton or wooden box, we usually make the package by customers’ need.
. Packaging: standard export package suitable for long sea voyage and tough handling
. Delivery Detail: 10-25 days depending on order quality
. Founded in 1995, authorized as the national non-region enterprise group in 2001.
. 180000 square meters for producing.
. Certificate: ISO9001, ISO14001, OHSMS18001, TUV,CE,ROHS,CCC, etc.
. Above 1500 Employees.
. More experience for projects, OEM, ODM.
. Hi-tech professional and efficient R&D team.
. Newest technology and advance equipments.
.Quick service and warranty.
. Are you factory?
Yes, we are a leading manufacture for solar panel, cable, transformer in China.
. Do you supply samples?
Samples are available for testing and market test.
. Warranty of Solar Panel
By our warranty terms.
. Guides and after- service Consultancy
After-service consultancy just for you and to make your problems to solve easily. Hours 24
. OEM & ODM Service
We have effective teams for R&D, engineering, production, QA, Sales, and advance equipments, assuring a high quality product and prompt delivery for customers.
. Payment terms?
T/T, L/C, credit, West union for order now.
