Specifications
Marine flexible solar panel1.higher outdoor performance in low and diffuse light conditions
2.Light weight
3.Self-adhesive

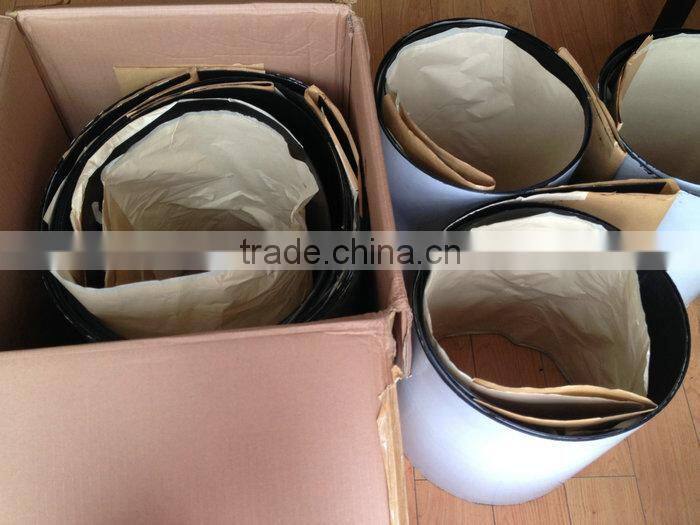

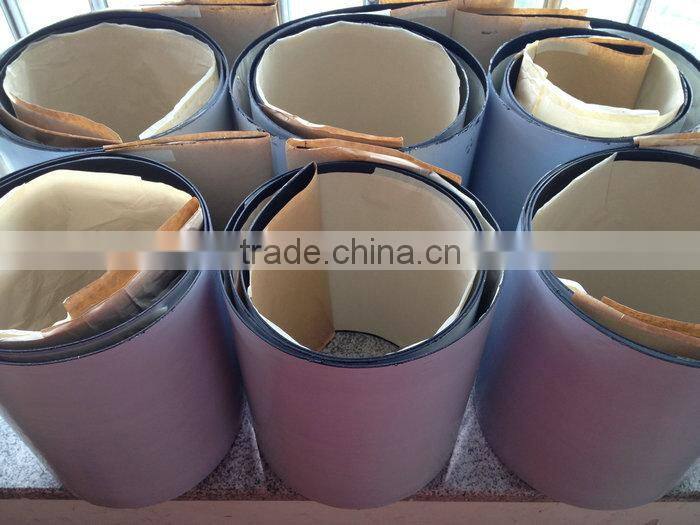

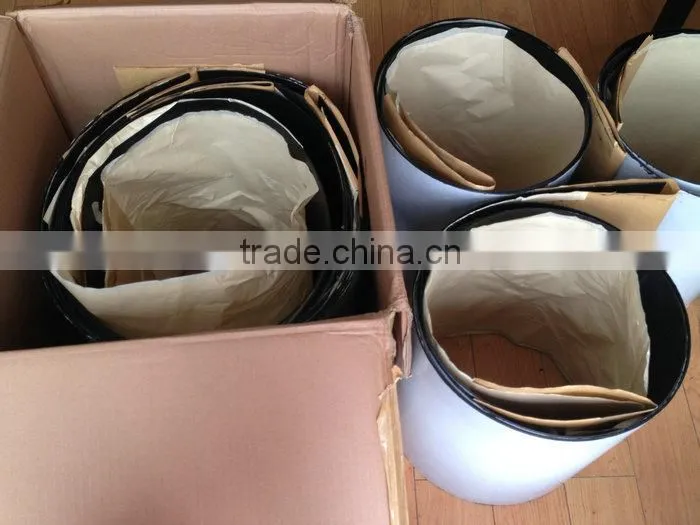

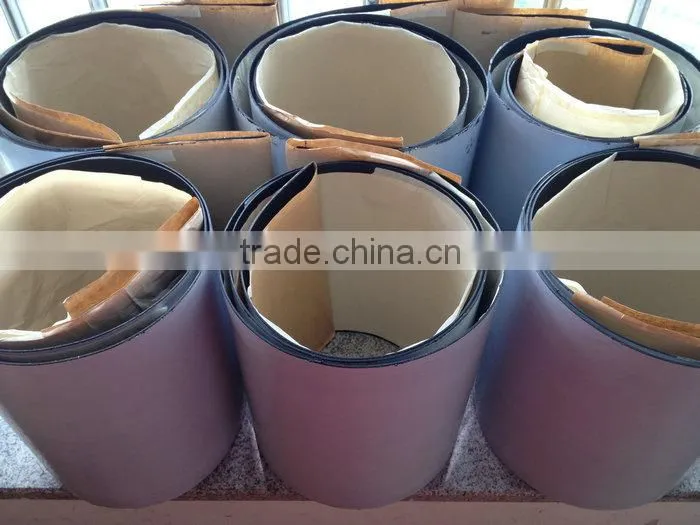

Marine flexible solar panel
Performance Characteristics
Rated Power (Pmax): 144 Wp
Production Pmax Tolerance: ± 5 %
Construction Characteristics
Dimensions: Length: 5486 mm (216"), Width: 394 mm (15.5"), Depth: 4 mm (0.2"),
16 mm (0.6") including potted terminal housing assembly
Weight: 7.7 kg (17.0 lbs)
Output Cables: 4 mm2 (12 AWG) cable with weatherproof DC rated quick-connect terminals*
560mm (22“) length.
By-pass Diodes: Connected across every solar cell
Encapsulation: Durable ETFE high light-transmissive polymer
Adhesive: Ethylene propylene copolymer adhesive-sealant with microbial inhibitor
Cell Type: 22 triple junction amorphous silicon solar cells 356 mm x 239 mm
(14" x 9.4") connected in series
Application Criterion

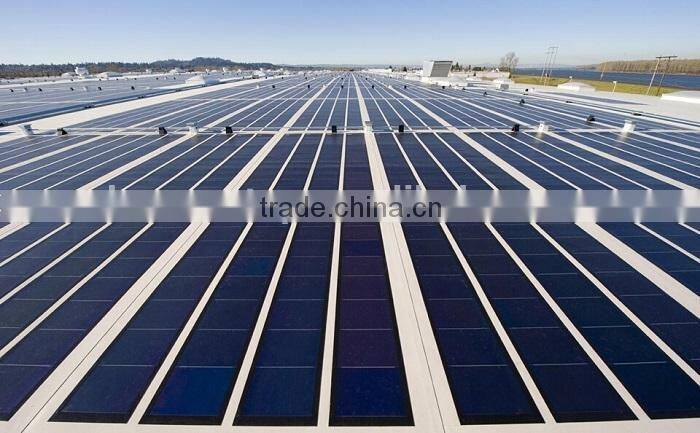

• New or qualified new roof installations
• Installation by certified installers only
• Installation temperature between 10 °C - 40 °C (50 °F - 100 °F)
• Maximum roof temperature 85 °C (185 °F)
• Minimum slope: 5/8:12 (3°)
• Maximum slope 21:12 (60°)
• Membrane: Select EPDM and TPO substrates from approved manufacturers only

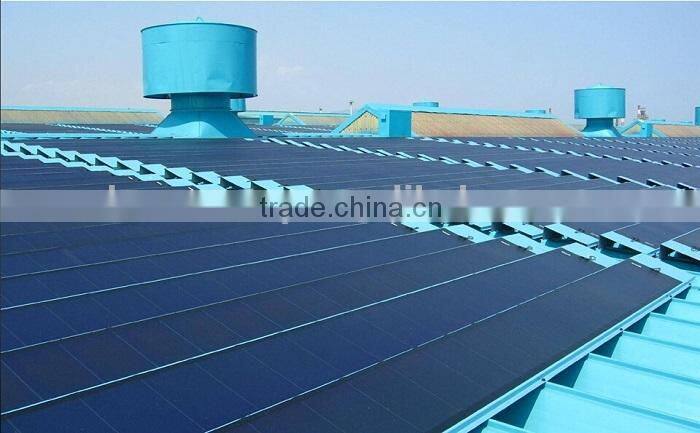

• Metal: PVDF Coated (Galvalume® or Zincalume®) steel metal roofing pan with flat surface (without
pencil beads or decorative stippling) and 406 mm (16“) minimum width
Electrical Specifications
STC
(Standard Test Conditions)
( 1000 W/m2, AM 1.5, 25 °C Cell Temperature)
Maximum Power (Pmax): 144 W
Voltage at Pmax (Vmp): 33.0 V
Current at Pmax (lmp): 4.36 A
Short-circuit Current (Isc): 5.3 A
Open-circuit Voltage (Voc): 46.2 V
Maximum Series Fuse Rating: 8 A
Temperature Coefficients
(at AM 1.5, 1000 W/m2 irradiance)
Temperature Coefficient (TC) of Isc: 0.001/°K(0.10%/°C)
Temperature Coefficient (TC) of Voc: -0.0038/°K (-0.38%/°C)
Temperature Coefficient (TC) of Pmax: 0.0021/°K (-0.21%/°C)
Temperature Coefficient (TC) of Imp: 0.001/°K (0.10%/°C)
Temperature Coefficient (TC) of Vmp: -0.0031/°K (-0.31%/°C)
y = yreference • [1 + TC • (T- Treference)]
Thin flim flexible solar panel products list:
1):Power:31W&33W
Size:1410*394*4mm
2):Power:68W&72W
Size:2849*394*4mm
3):Power:136W&144W
Size:5486*394*4mm
Please feel free to contact us for more details.
We also can offer you semi flexible solar panel, mono solar panel, poly solar module, solar inverter, solar controller, lead acid battery, lifepo4 battery, solar connector and other related items.
