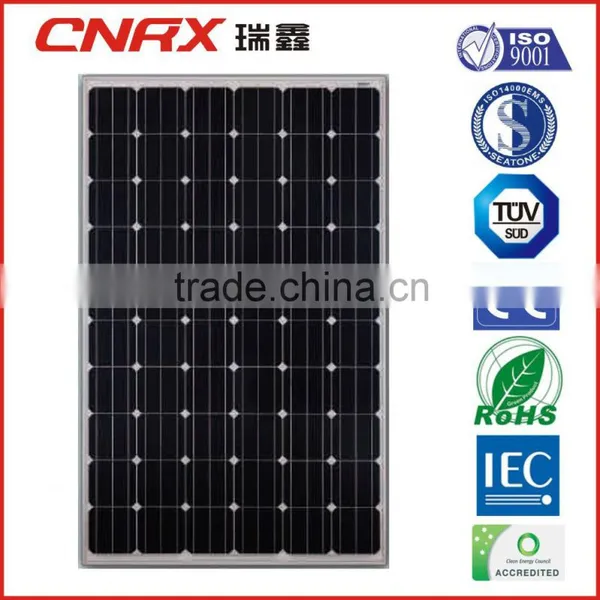

Help CenterMono 250w Solar Panel in China With TUV CE Certificate
Related Products
-
Mono 50watt Solar Panel Manufacturers in China Factory Direct Price High Quality With TUV ROHS CE in DubaiNegotiableMOQ: 100 Pieces -
Mono 50watt China Solar Panel Supplier 18v Solar Module Factory Direct Price High Quality With TUV ROHS CENegotiableMOQ: 100 Pieces
-
Made in China YueQing Ruixin Group 50w Solar Panel / Module Supplier Factory Direct Price With TUV ROHS CE High QualityNegotiableMOQ: 100 Pieces
-
Solar ProductionsUS$ 16.8 - 18MOQ: 1000 Pieces
-
Solar ProductionsUS$ 16.8 - 18MOQ: 1000 Pieces
20 Years Professional Manufacture / TUV CE Rohs certificate / 600MW per year/ quality warranty 25years for Mono 250W Solar Panel
Warranties. 10 years limited product warranty.
. 15 years at 90% of the minimal rated power output.
. 25 years at 80% of the minimal rated power output.
Solar Panel Advantages
Mono 250w Solar panel Specifications:
|
Mode |
Mono solar panel 250W |
Cell (mm) |
156*156mm |
|
No of cells and connection |
60PCS (6*10) |
|
Dimension of solar panel(mm) |
1650*990*40mm |
|
Weight(kg) |
22.5kgs |
|
Cable(mm²) |
4 mm² |
|
Juction Box |
IP67 |
|
Connector |
MC4 compatible |
|
Packaging |
25PCS/per pallet, 28pallets/40ft |
Electrical Parameters
Type |
RXM235-60 |
RXM240-60 |
RXM245-60 |
RXM250-60 |
RXM255-60 |
Max-Power Pm(W) |
235 |
240 |
245 |
250 |
255 |
Module-Power Range(W) |
240>Pm≥235 |
245>Pm≥240 |
250>Pm≥245 |
255>Pm≥250 |
Pm≥255 |
Power Tolerance(W) |
+0~+5 |
+0~+5 |
+0~+5 |
+0~+5 |
+0~+5 |
Max-Power Voltage(V) |
30.8 |
31.1 |
31.4 |
31.85 |
32.3 |
Max-Power Current lm(A) |
7.64 |
7.73 |
7.81 |
7.85 |
7.9 |
Short-Ciruit Current lsc(A) |
8.55 |
8.65 |
8.75 |
8.85 |
8.9 |
Open-Circuit Voltage Voc(V) |
36.6 |
37 |
37.3 |
37.65 |
38.2 |
Max-System Voltage(VDC) |
600V(UL)/1000V(IEC) |
||||
Cell Efficiency(%) |
16.4 |
16.7 |
17.1 |
17.4 |
17.8 |
Module Efficiency(%) |
14.3 |
14.6 |
14.9 |
15.2 |
15.5 |
Max.Series Fuse(A) |
15 |
||||
Pm Temperature Coefficients(W/℃) |
-1.1041 |
||||
Lsc Temperature Coefficients(A/℃) |
0.00418 |
||||
Voc Lsc Temperature Coefficients(V/℃) |
-0.1261 |
||||
NPCT Nominal Operating Cell Temperature |
47±2℃ |
||||
Production & testing Processes
Solar Panel Applications
. Products are packed by corrugated carton or wooden box with wooden pallllet.
Our Service
. Are you factory?
Yes, we are a leading manufacture for solar panel, cable, transformer in China.
. Do you supply samples?
Samples are available for testing and market test.
. Warranty of mono 250W solar panel
By our warranty terms.
. Guides and after- service Consultancy
After-service consultancy just for you and to make your problems to solve easily. Hours 24
. OEM & ODM Service
We have effective teams for R&D, engineering, production, QA, Sales, and advance equipments, assuring a high quality product and prompt delivery for customers.
. Payment terms?
T/T, L/C, credit, West union for order now.
Why choose ruixin?
.Founded in 1995, authorized as the national non-region enterprise group in 2001.
.180000 square meters for producing.
.Certificate: ISO9001, ISO14001, OHSMS18001, TUV,CE,ROHS,CCC, etc.
. Above 1500 Employees.
. More experience for projects, OEM, ODM.
. Hi-tech professional and efficient R&D team.
. Newest technology and advance equipments.
.Quick service and warranty.
Packing & shipping
. Shipping: Usually delivery from Ningbo port or Shanghai port.
