Residental Parking Use Automated Parking Systems Rotary Parking System with Good After-Sale Service
Description:
It is a modern series parking management system for managing pay-to-park facilities with high traffic flow, for both occasional and registered parker.

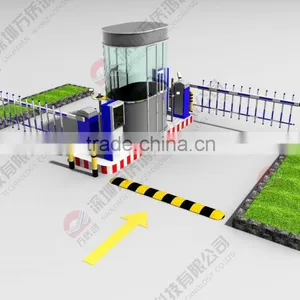

For a hourly parker, when he comes to entry, he himself presses a button to take a proximity card from entry controller, after that the entry barrier automatically opens and he enters, when he comes to exit where a manual-pay-station is installed nearby, he gives his card to the guard, the guard read the card on a card reader, parking amount will be shown on the LED display or computer, then the parker pay cash and then barrier open and he leaves.
For a registered parker, he enters or leaves by card swiping.
Equipments(Smart Car parking system)as belows:
| Equipment | Entrance Equipments | Exit Equipments | C. Management Center |
| List |
a. Automatic Barrier Gate b. Vehicle sensor and cable 1 c. Equipments for RFID 1. Entrance parking box 2. Control Panel 3. ID/IC card 4. ID/IC card reader 5. LED display 6. Voice Prompt 7. Interphone 8. Power Supply 9. Vehicle sensor and cable 2 |
a. Automatic Barrier Gate b. Vehicle sensor and cable 1 c. Equipments for RFID 1. Exit parking box 2. Control Panel 3. ID/IC card reader 4. Vehicle sensor and cable 2 5. LED display 6. Voice Prompt 7. Interphone 8. Power supply
|
a. ID/IC Card Register b. Management Software c. Management Computer(no quote) d. Communication Shift e. ID/IC card f. interphone(optional) |
Applications:
residential community, office building, factory, hosipital, government building,school,military bases,docks,customs,jails,unclear power station,highway etc.
Armenia Car Parking system:
Philippines Car Parking system:
Barriers:
Dimensions: 345 x 295 x 1, 100mm
Arm material: aluminum-alloy
Housing material: 1.6mm cold-rolled steel
Voltage: 220V-240V
Motor voltage: AC 20V
Protection grade: IP65
Rail up or down time: 4 to 6 seconds
Transmission sine linkage
Boom type: straight or foldable (optional)
Rated power: 80W
Boom length: 3-6meters
Frequency: 50 to 60Hz
Boom dimensions (W x H): 45 x 100mm
Working temperature: -45 to 80 centigrade degree
Boom weight: 5.5kg
Operating humidity: no less than 90%
Operating life: 500 million
Net weight: 49kg
Gross weight: 55kg
Parking Box Parameters:
Product Name |
Shrot Range Car Parking Box |
Card Reading Distance |
3-15cm |
Working Voltage |
220V±15% |
Frequency |
50 to 60Hz |
Communication Interface |
RS485/RS232 |
Working Temperature |
'-30°C to +60°C |
Working Humidity |
≤95% non-condensing |
Housing Size |
480*210*1350mm |
Housing Material |
1.8mm cold-rolled steel plate |
Card Dispense Capacity |
300 pieces(can be expanded) |
Housing Color |
Different Color Available |
