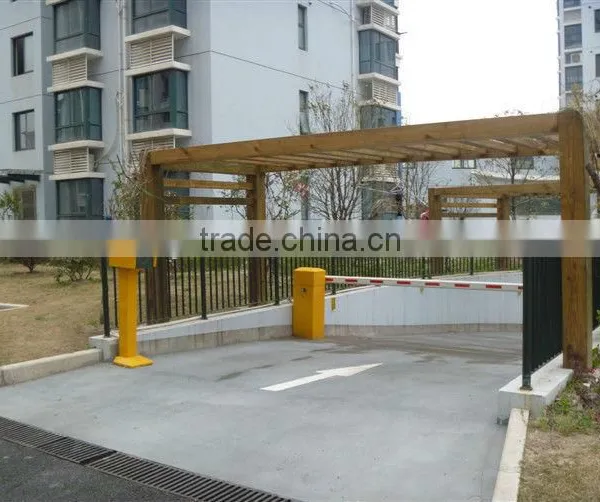

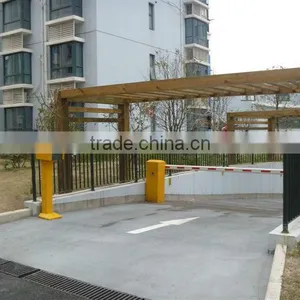

Short Range 3-15cm Simple Design Intelligent Car Parking System for Residential Community,Office Building,Docks,Jails,School Etc

Short Range 3-15cm Simple Design Intelligent Car Parking System for Residential Community,Office Building,Docks,Jails,School,Hospital,Factory,Government Building,Military Bases,Nuclear Power Station,Parks,Subway etc.

simple and ecnomic style
short range card reader 3-15cm
coating does not fading in 3 to 5 years
for fixed parker only

WQ-861 car parking mangement system

long range 3-15cm card reader

For registered parker only

When he entries, entry barrier will automatically open and he enters w/o stop if the tad is read by long range RFID reader in 3-15meters. the same will happen at the exit.

It is the ideal solution for parking lots with high traffic flow such as shopping center, exhibition center, hospitals, airports etc.

1, Entrance Equipment:

A), Automatic Barrier (straight arm)

B), Vehicle sensor 1 and cable

C), Equipments for RFID

      a, Box for entry

      b, Control board

      c, ID reader

      d, card machine

      e, Vehicle sensor 2 and cable  2sets

      f: power

      g: transformer power (optional)

2,  Exit Equipment:

A), Automatic Barrier (straight arm)

B), Vehicle sensor 1 and cable   1 set

C), Equipments for RFID

      a, Box for exit

      b, Control board

      c, ID reader

      d: power

      e: transformer power (optional)

3), Management center

A), ID card register

B), Management software and software dog

C), Management computer (no quote)

D), Communication shift

E), ID card

Details of barriers:

size: 345 x 295 x 1000mm

Arm Material: aluminum alloy

Housing  material: 1.8mm cold-rolled steel

Voltage: 220V ± 10, 110 ± 10%

Motor voltage: 220V

Gross weight: 50kg

Protection grade: IP65

Rail up or down time: 4 to 6 seconds

Transmission sine linkage

Boom type: straight

Rated  power: 80W

Boom length: ≤6000mm

Frequency: 50 to 60Hz

Boom dimension (W x H): 45 x 100mm

Working temperature: -45 to +80 degrees Celsius

Boom weight: 5.5kg

Operating humidity: ≤90% RH (non-condensing)

Operation life: ≥500million times</ul>

Details of Box:

Material: 1.8mm cold-rolled stainless steel

Size:  275*300*1240mm

The system owns novel and beautiful apperance

Appicable to a varity of smart card parking management system

Industrial grade silicon makes it integrated with the international quality standards

Parking box dealt with water proof, dust proof anti-rust coating

the system is equipped with ID short distance reader so that the distance of card reader can achieve 5-15CM

Applying to community and goverment department
