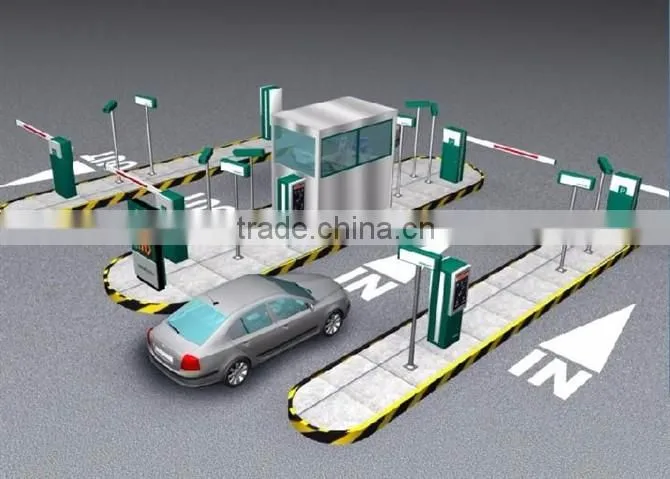

One Entrance and One Exit Intelligent Barcode&RFID Car Parking System With Affordable Price

             One Entrance and One Exit Intelligent Barcode&RFID Car Parking System with Affordable Price

Features of Smart Car Parking System:

--Support Auto Payment. RFID Card. Barcode and Access Control Functions.

--Multiple network modes to realize remote data and image transmission

-- Easy to install. Debug and maintain. Testing function available

-- Compatible with Long distance reader function.. Off-line working available

-- 13.56MHZ. 125KHZ. Barcode. RFID. UHF. Bluetooth available in one control board

-- Automatic Card/ Barcode dispenser

-- Housing iwth waterproof. Dustproof and rustproof design

-- Flexible system configuration.extended to multi-level parking lot management system

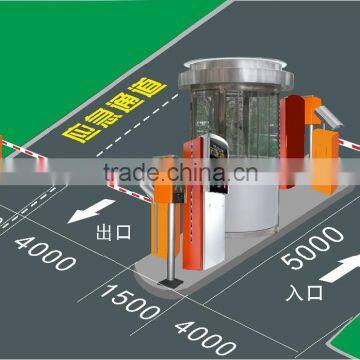

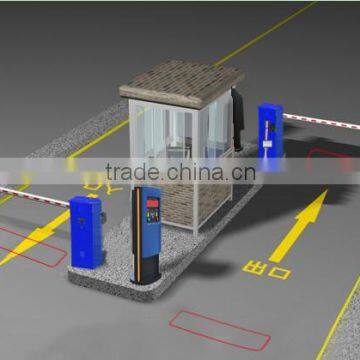

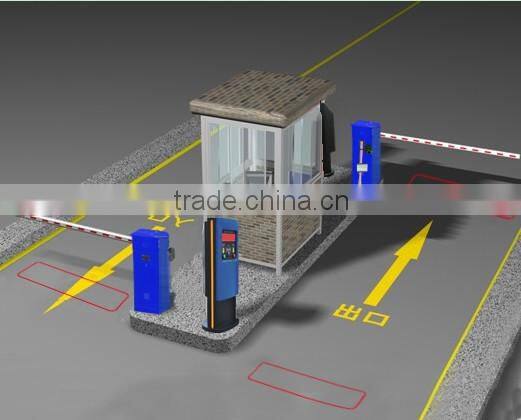

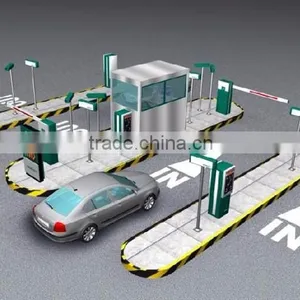

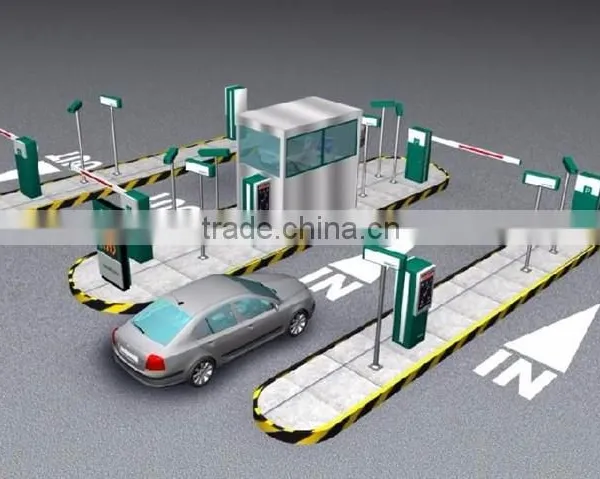

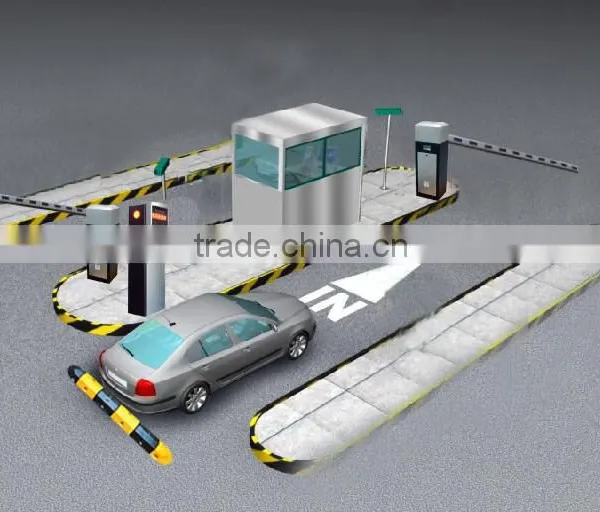

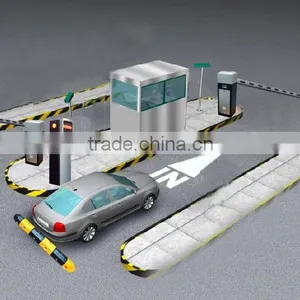

Equipments(Smart Car parking system)as belows:

WQH PMS Working Steps:

How To Entry ?

Step 1----- The Vehicle covers the Loop coil.

Step 2 ----- Driver press the push button on the entry parking case.

Step 3 ----- The card dispenser spit an RFID Card. system recording all the information.like data.entry time.

Step 4 ----- Boom barrier open automatically

Step 5 ----- After driver pass the 2th loop coin. The Boom barrier close automatically

How To Pay and Exit ( For Manual Payment )?

Step 1----- Vistor drive to the payment centre station and give his to the operator (Station near the Exit point )

Step 2----- Operator put  the card in the card issue device

Step 3----- System shows the card information on the LED display automatically.

       Including The card holder. How long the car stay inside the parking system. How much need to pay

Step 4----- After driver pay the cash. Operator click " open barrier ". then boom barrier open

Step 5----- After the car pass the loop coil. the boom barrier close

How To Pay and Exit ( Auto-Payment Station ) ?

Step 1----- Vistor drive to the Auto-payment Station and place card on the reader

Step 2----- The auto-payment machine show how long the car stay and how much need to pay

Step 3----- Vistor Insert Coin or Notes to the bill acceptor then print out receiption

Step 4----- Vistor take the card to the exit point and place on the reader. then barrier open automatically

Step 5----- After the car pass the loop coil. the boom barrier close

Barriers Information:

Dimensions: 345 x 295 x 1, 100mm

Arm material: aluminum-alloy

Housing material: 1.6mm cold-rolled steel

Voltage: 220V-240V

Motor voltage: AC 20V

Protection grade: IP65

Rail up or down time: 4 to 6 seconds

Transmission sine linkage

Boom type: straight or foldable (optional)

Rated power: 80W

Boom length: 3-6meters

Frequency: 50 to 60Hz

Boom dimensions (W x H): 45 x 100mm

Working temperature: -45 to 80 centigrade degree

Boom weight: 5.5kg

Operating humidity: no less than 90%

Operating life: 500 million

Net weight: 49kg

Gross weight: 55kg

Parking Box Parameters:
