(GSM Quad-band) 2 relay output,Remote water pump auto switch 12V,AC power failure alarm S130S140S150

>>GSM Controller * 1
>>Power supply adapter * 1 (12V 1.5A)
>>USB Cable * 1
>>CD (Pc programmer tool) * 1
>>GSM Antenna * 1
>>Package Size:W190*D140*H60mm
>>Gross Weight: 1.0Kg
10pcs per carton

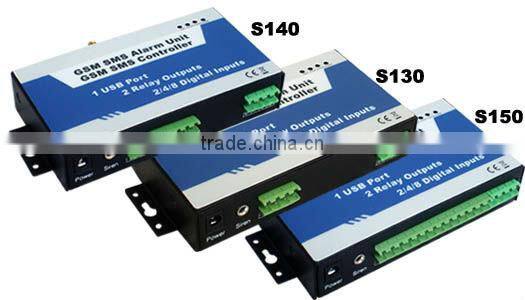

King Pigeon S130 S140 S150 GSM Wireless Remote Switch,

SMS Remote Controller, Home Automation

Turn Relay ON OFF by Mobile Phone SMS Text Command

Keyword: or moto, valve, power,Remote Coller, Wireless Remotwitch, GScontroller, Automation,Remote Contler S130rk an by GSM network.Also cald GSM Remote Controller in industry area.

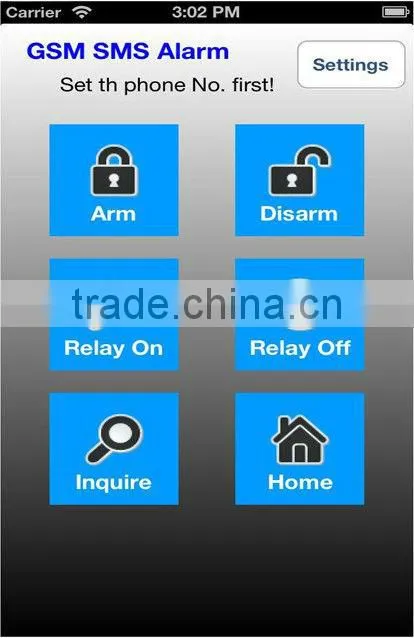

Android App Available Now!!!

Make Control Easier!

1.Wireless remote controller work by GSM Quad-band Network

2.Lighting/Pump/Generator/Motor/Valve Remote switch controller

3.Wireless GSM Switch 2/4/8 NC/NO Dry Contact Inputs & 2 Relay Outputs

>>>>>>SMS Controller Alarm, S130 S140 S150 used for:

>>>GSM Water leak alarm,

>>>GSM Humidity alarm;

>>>GSM Automation System;

>>>Power Station,Transformer,Regulator,Stabilizer monitoring and control;

>>>Vending machine controller;

>>>Power facility control and alarm;

>>>Pump,Motor,Tank,Generators monitoring and switch control.

The GSM SMS Controller-Alarm S130 S140 S150 is a universal GSM Remote Control switch and GSM Alarm Unit.

The GSM SMS Controller-Alarm S130 S140 S150 provides 2/4/8 digital inputs(NC/NO/EOL);

The GSM SMS Controller-Alarm S130 S140 S150 is very easy for setup via USB Port to PC.

The GSM SMS Controller-Alarm S130 S140 S150 allows you to monitor and control an alarm or remote stations or equipments or machines by SMS.

>>>>>>GSM SMS Controller & Alarm Features:

>>> 1 relay output (240VAC/3A) can be switched ON/OFF by sending a SMS text;

>>> 1 relay output (240VAC/3A) can be switch on 0-120mins if any inputs triggered;

>>> 2/4/8 Alarm logic inputs, NC or NO and EOL is optional;

>>> 3 SMS Alert numbers and 5 auto-dial phone numbers can accept to the alarm message;

>>> Two-way voice communication* by external microphone and speaker;

>>> Supports armed, disarmed, inquiry status, switch ON or OFF relay output by SMS Commands;

>>> Password protection, prevents unauthorized user;

>>> Configuration from PC Programmer software via USB port;

>>> Time stamped alarm messages;

>>> Backup rechargeable battery inside, runtime more than 24hours;

>>>Operate from anywhere, anytime;

>>> Based on GSM Network Qua-band, applied to many applications.

>>>>>>The GSM SMS Controller & Alarm suitable for:

1.Security Alarm System applications;

2.Supervision and monitoring alarm systems;

3.Automatic monitoring system;

4.Vending Machines security protection;

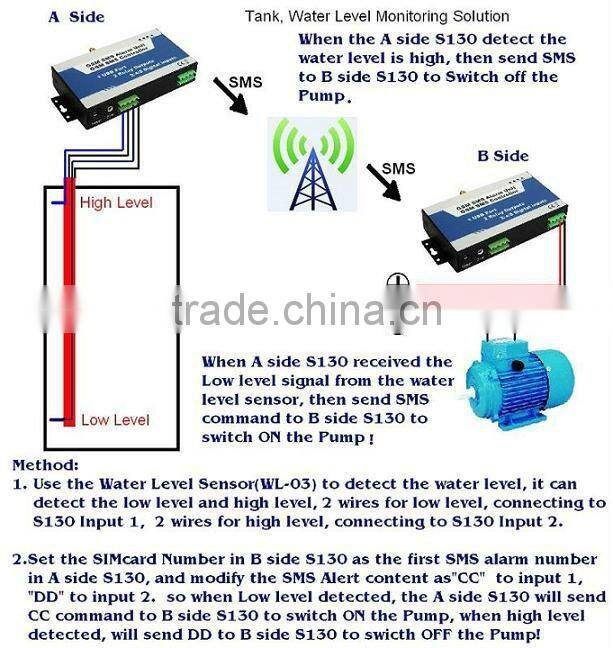

5.Pumping Stations, Tanks, Oil or Water levels;

6.Buildings and Real Estate;

7.Weather Stations;

8.River Monitoring and Flood Control;

9.Oil and gas pipelines;

10.Corrosion protection

11.Temperatures, water leakage applications;

12.Wellheads, boat, vehicle;

13.Energy saving, street lights control system;

14.Valve controls;

15.Transformer stations;

16.Unmanned machine rooms;

17.Control room application;

18.Automation System, M2M;

19.GSM Access Control System, GSM Gate Opener, etc.

>>>>>>S130/S140/S150 Specifications:

GSM Frequency: Default 900/1800/1900MHz, Optional 850/1900/1800/1900MHz

Power adapter: DC 12V/1.5A

Power Current: Max:500mA   Type :50mA

SIM Card     :    Supporting 3V SIM Card

GSM Antenna : 50 Ω SMA Antenna interface,

Serial       : USB Port

Input Type : S130: 2 Dry Contact, NC,NO,EOL

             S140: 4 Dry Contact, NC,NO,EOL

             S150: 8 Dry Contact, NC,NO,EOL

Output Type : 2 Relay Output, 240VAC/3A, Relay inside.

>>>>>>Standard Package list:

>>GSM Controller * 1

>>Power supply adapter * 1 (12V 1.5A)

>>USB Cable * 1

>>CD (Pc programmer tool) * 1

>>GSM Antenna * 1

>>Package Size:W190*D140*H60mm

>>Gross Weight: 1.0Kg

10pcs per carton

Welcome OEM/ODM Service

Put Your LOGO on Unit and Package Available!

Skype: AmericaGsmAlarm
