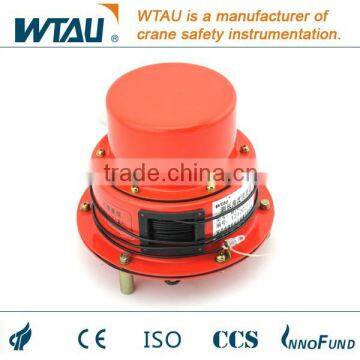

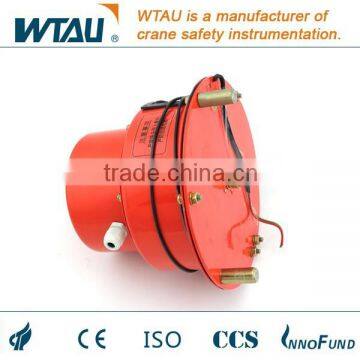

The Length/Angle sensor
Description
The Length/Angle sensor is installed in the boom of the crane, assisting the instrument control and display the length of the crane arm, lifting the arm relative to the horizontal plane Angle, and the control of the crane hoisting height, etc. The technical indicator of the products is located in the front in the whole country.
Model: WTC/J- R (right mounting type), WTC/J- L (left mounting type)
Components: the electrically conductive plastic potentiometer (CPP)
Size
Main parameters
Model |
Relay Signal |
Length measurement range |
Angle measurement range |
Signal Output |
Length nonlinearity |
Angle nonlinearity |
WTC/J-15L/R |
3 signals (Power, public, signal) |
0-15m |
-10°~90° |
0~10V |
≤0.2% |
≤0.15° |
WTC/J-25L/R |
3 signals (Power, public, signal) |
0~25m |
-10°~90° |
0~10V |
≤0.2% |
≤0.15° |
WTC/J-45L/R |
3 signals (Power, public, signal) |
0~45m |
-10°~90° |
0~10V |
≤0.2% |
≤0.15° |
Installation pictures
