WTAU Crane BH Type Weighing Sensor and Load Cell

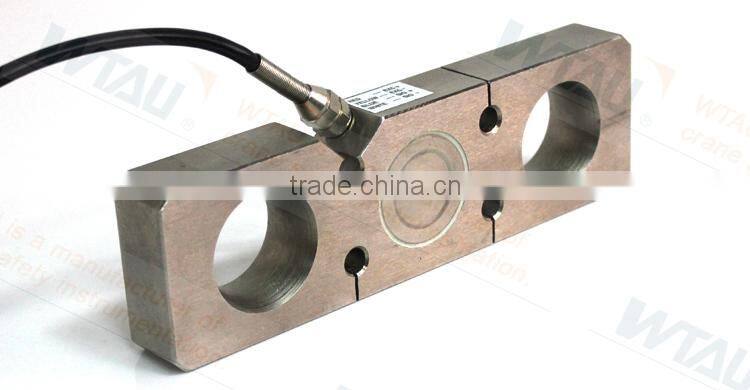

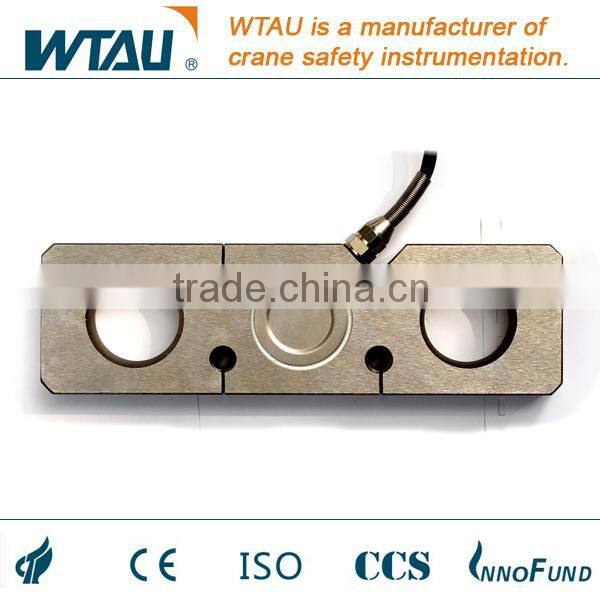

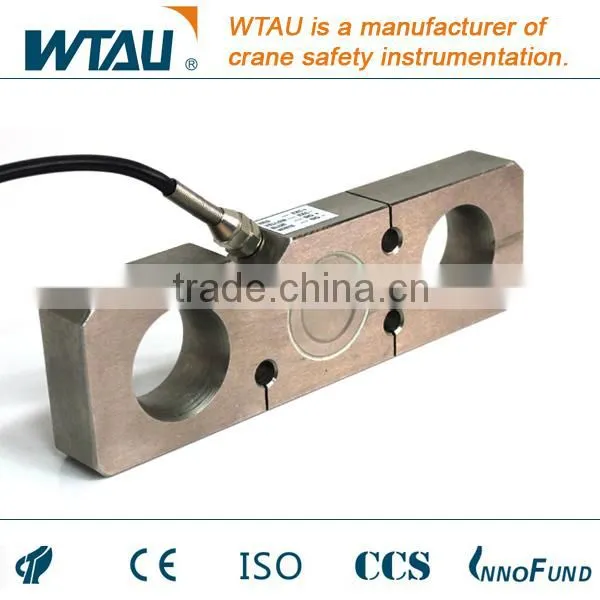

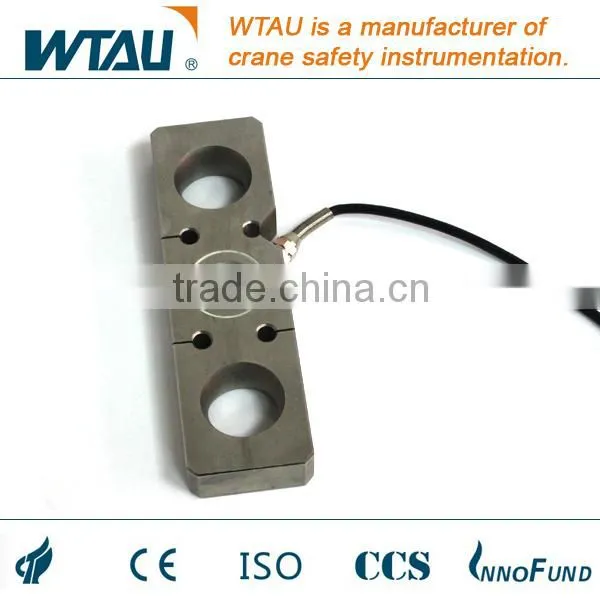

BH type Load Cell

Description

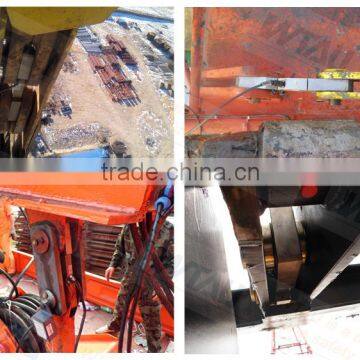

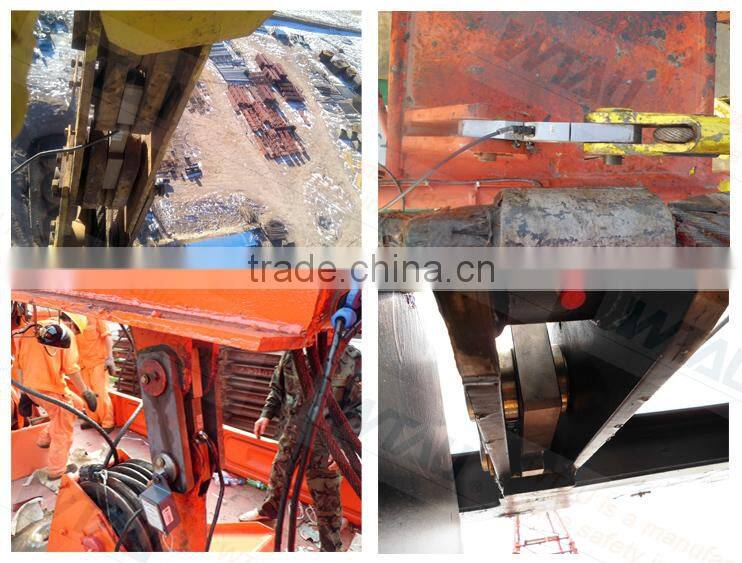

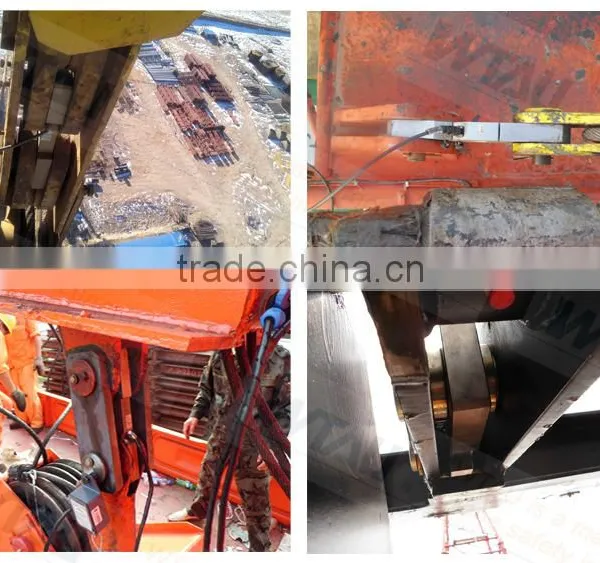

BH type load cell mainly used for measuring the pulling force of the crane wirerope .

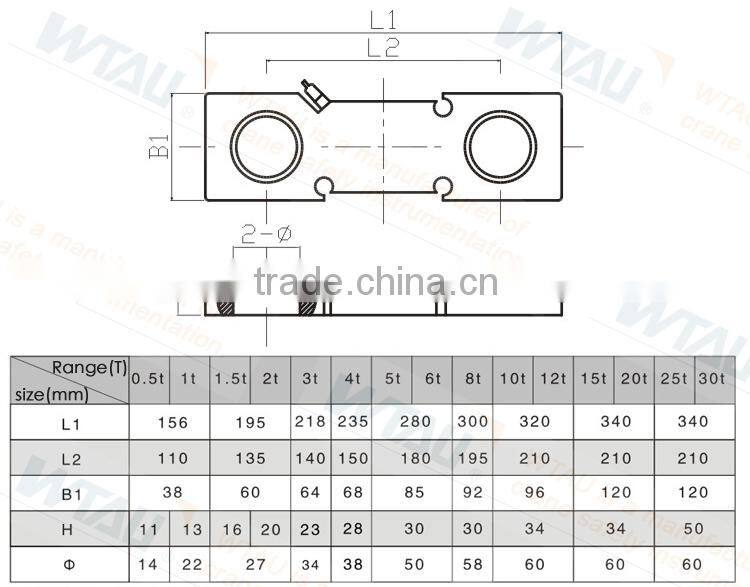

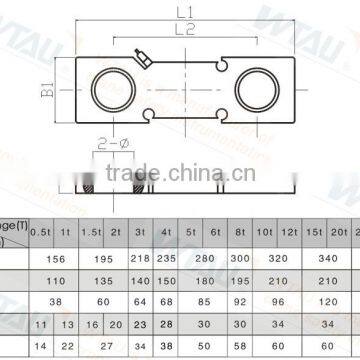

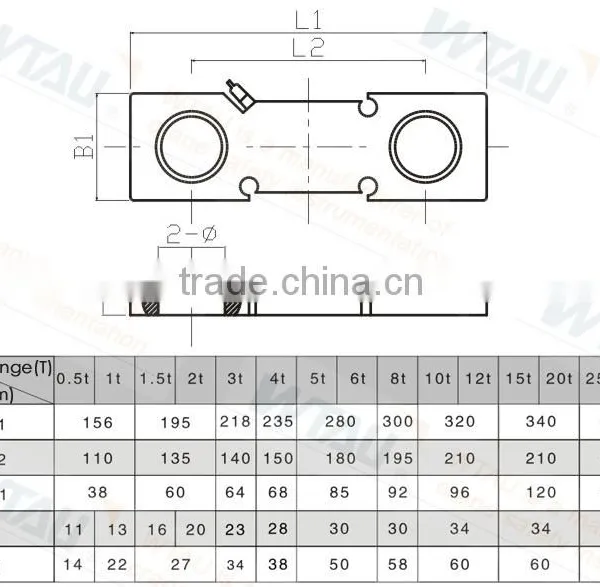

Size

Main parameters

Specified load: 10, 15, 20, 25, 30, 40, 50t       Temperature Effect On Output:±0.02%F.S/10℃

Max overload: 250%F.S                     Sensitivity: 1.0±0.005mV/V

Input impedance: 750±20Ω                  Driving voltage: 10~12V DC

Synthetic errors: ±0.02%F.S; ±0.03%F.S        Output impedance: 703±3Ω

Max driving voltage: 15V DC                Creepage(30 min): ±0.02%F.S

Insulation resistance: ≥5000MΩ               Sealed IP: IP68

Null balance: ±1%F.S                       Working temperature range:-30~+70℃

Material: Alloy steel                        Null temperature influence: ±0.02%F.S/10℃

Safe overload: 150%F.S                     Cable: Φ5mm

 Any requirement will be welcomed.
