Product Details
| Place of Origin | Hubei, China | Brand Name | WTAU | |
| Model Number | PY |
Product Description
PY type load cell and weighing sensor for crane

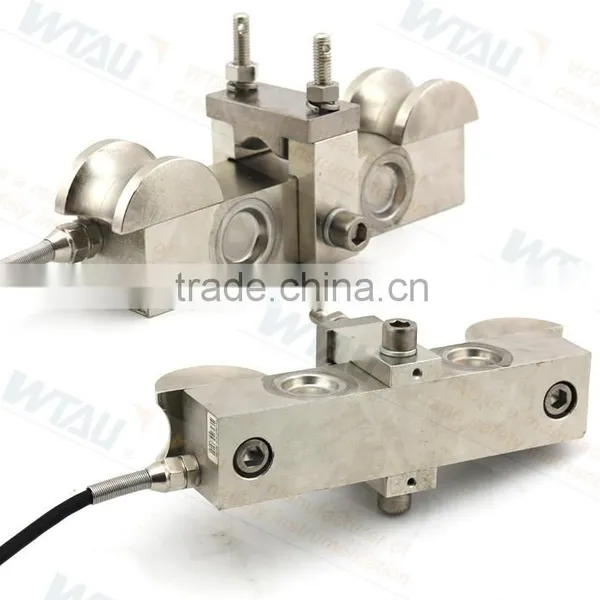

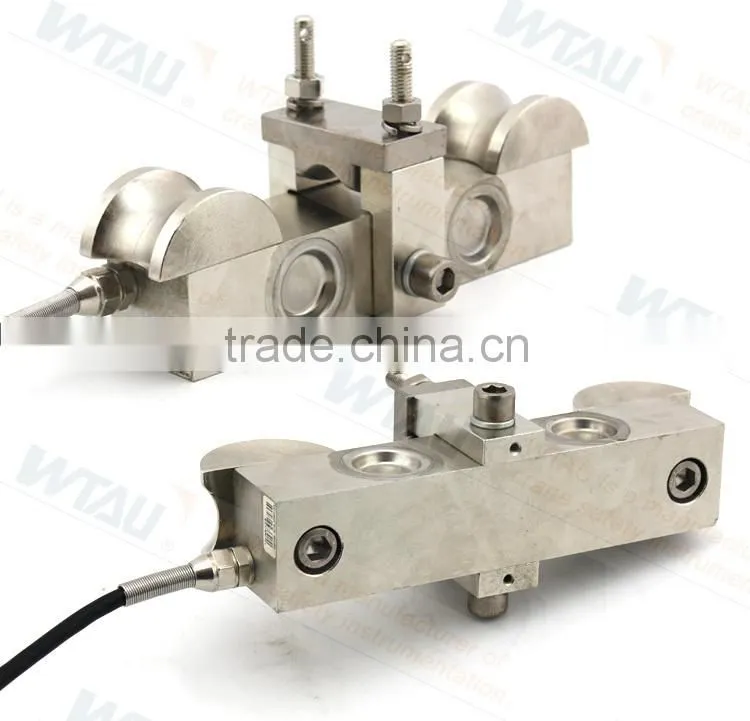

PY type load cell
Description

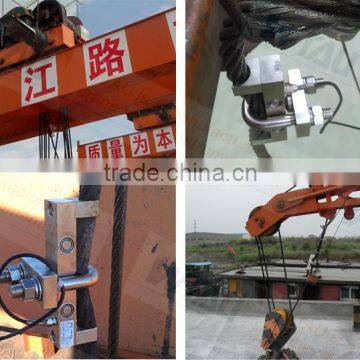

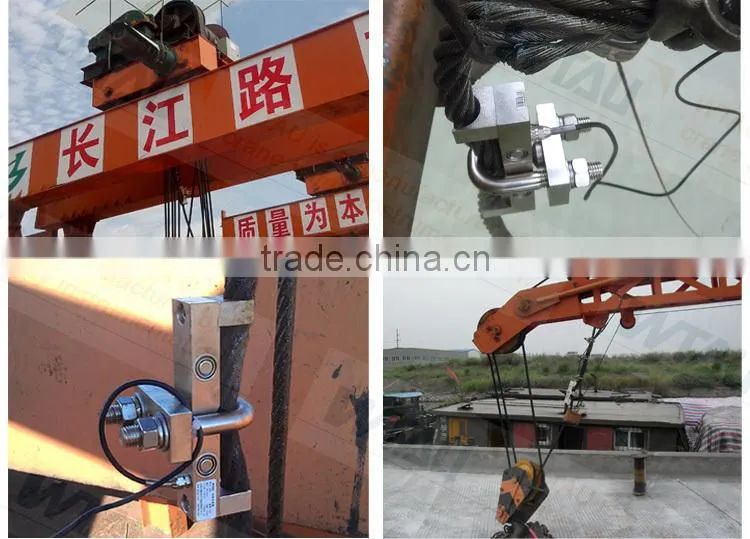

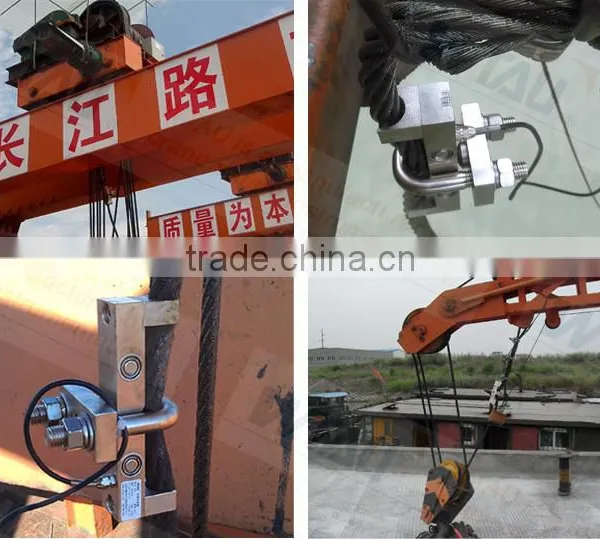

PY type load cell is mainly used for measuring the pulling force of crane wirerope.

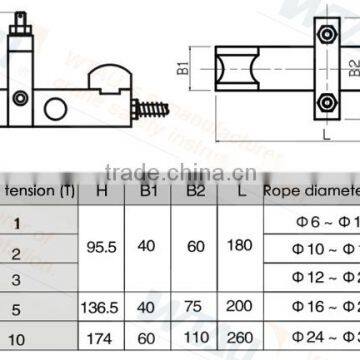

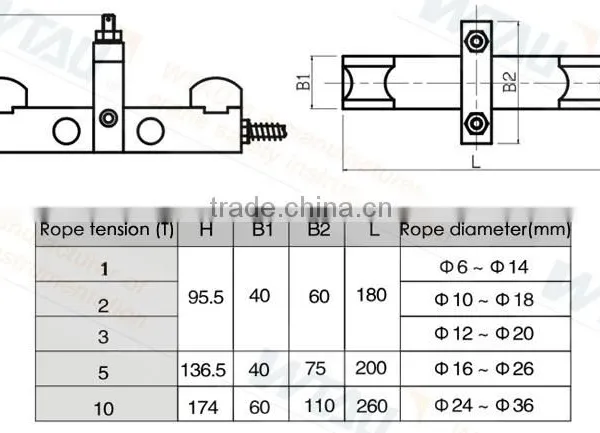

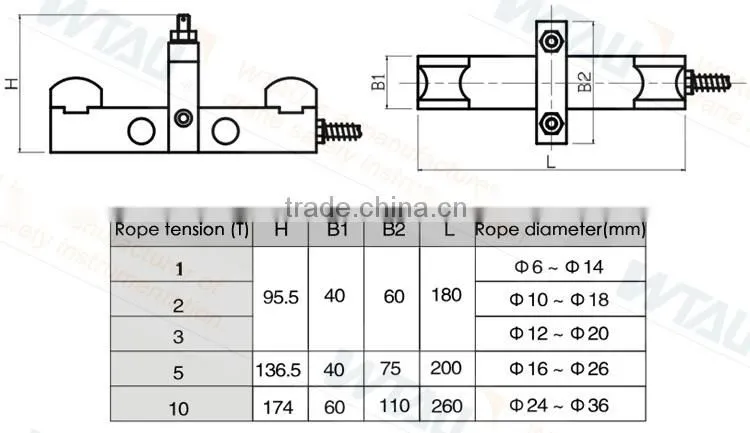

Size
Main Parameters
1. accuracy class:0.05
2. Sensitivity:1.0±0.005mV/V
3. Input resistance:750±20Ω
4.Output impedance:702±2Ω
5. Insulation resistance: ≥5000MΩ
6. Power Supply: 15V
7. Safe Load Limit: 150% F.S.
8.Temperature Range: -30℃~+70℃
9. IP Grade: IP66 IP67
10. The output signal: 0 ~ 20 mV voltage analog signal; 4 ~ 20 mA current signal output can be customized.
