Capacity 2.5T Four-wheel Drive Counterbalanced China Diesel Forklift Truck

Brand /Model

                        CPCD25FR

Loading capacity

2500kgs

Load center

500mm

H1 lifting height

3000mm

Tilting angles(forward/ backward)

6/ 12

Min right angle aisle width

2050mm

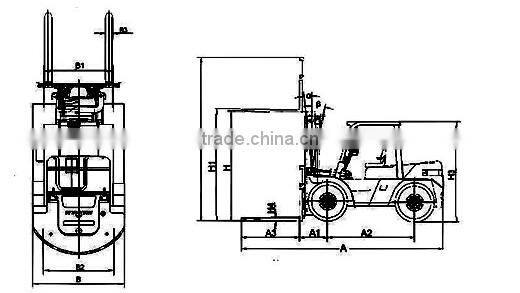

Dimensions

A overall length including fork

3605mm

B overall width

1160mm

H overall height mast lowered

2095mm

H2 overall height mast extend

4080mm

Total weight

3600 kg

B3 Fork width

122mm

H4 Fork thickness

40 mm

A3 Fork length

1070 mm

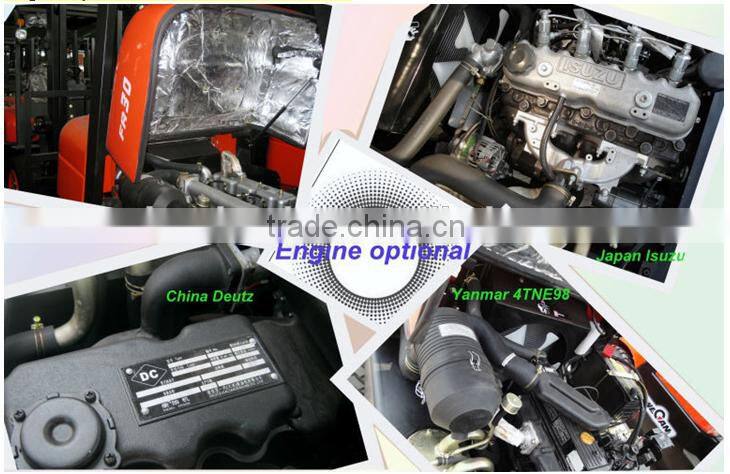

Engine

Engine model

490

Rated power

39 kw

Rotate speed at rated power

2650 rpm

Max. Torque

157 nm

Rotate speed at max. Torque

1980 rpm

Type of power shift

Hydraulic transmission
