Condition
New
Place of Origin
Shandong, China
Brand Name
TAIAN
Model Number
CPCD50f
Type
Manual Pallet Truck
Power Souce
AC Motor
Rated Loading Capacity
5000KGS
Max. Lifting Height
8000mm
Min. Lifting Height
3000mm
Fork Length
1220MM
Fork Width
150MM
Overall Dimensions
4350*1400*2330mm
Certification
CE and ISO cetificate
After-sales Service Provided
Overseas third-party support available
Specifications

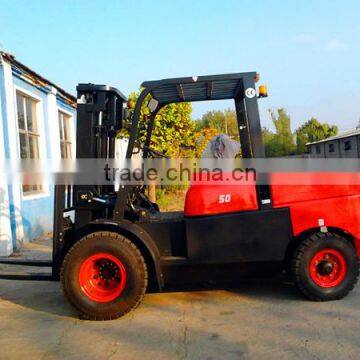

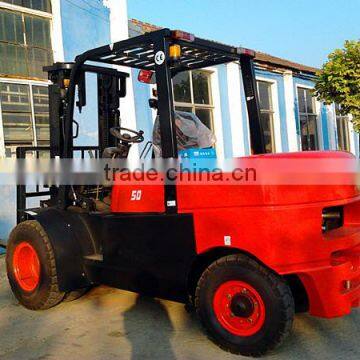

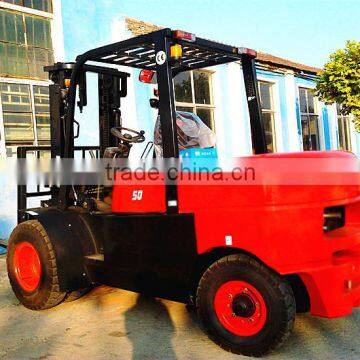

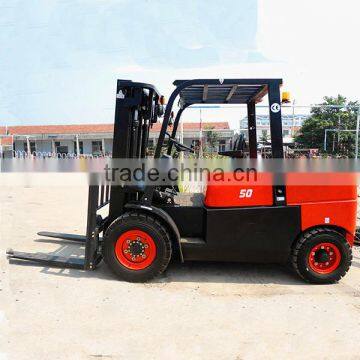

5 ton Diesel Manual Forklift Truck CPCD50FRated capacity: 5 ton
China Brand Engine or Original Imported Engine
Product Description
| Brand /Model | WECAN /CPCD50F | |
| Load capacity | 5000 kg | |
| Load center | 500 mm | |
| Power type | Diesel | |
| Max. lifting speeds (with load) | 375 mm/s | |
| Max. driving speeds (with/without load) | 20/24 km/h | |
| Max. towing (with/without load) | 31/18 kn | |
| Gradeability (with/without load) | 15%/20% | |
| Lifting height | 3000 mm | |
| Free lift | 150 mm | |
| Tilting angles (forward/ backward) | 6º/12º | |
| Min. turing radius | 3000 mm | |
| Min. right angle aisle width | 2750 mm | |
| Min. under-clearance | 170 mm | |
| Dimensions | Overall length (including fork) | 4350 mm |
| Overall width | 1400 mm | |
| Overall height (mast lowered) | 2330 mm | |
| Overall height (mast extended) | 4265 mm | |
| Overall height to overhead guard | 2330 mm | |
| Fork overhang | 585 mm | |
| Wheel base | 2150 mm | |
| Tread | Front tread | 1180 mm |
| Rear tread | 1190 mm | |
| Tyre | Front tyre | 300-15 |
| Rear tyre | 7.00-12 | |
| Total weight | 6800 kg | |
| Fork width | 150 mm | |
| Fork thickness | 55 mm | |
| Backrest height | 1275 mm | |
| Fork length | 1070(1200) mm | |

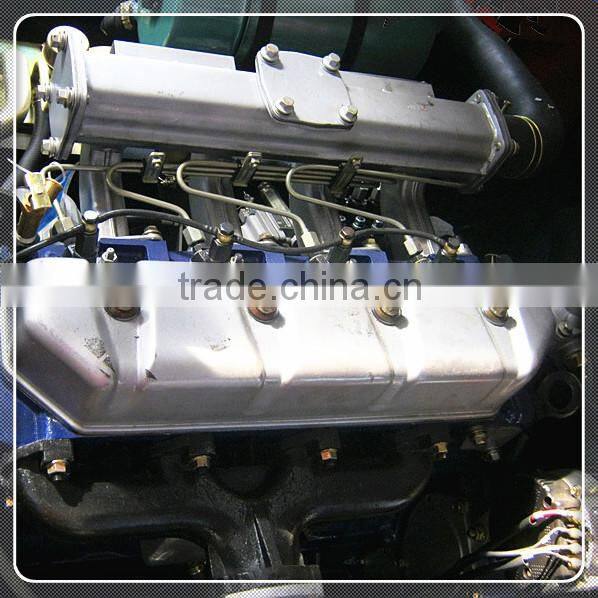

| Engine | Engine model | LR4A3/4JR3 |
| Rated power | 59 kw | |
| Rotate speed at rated power | 2400/2200 rpm | |
| Max. torque | 275/300 nm | |
| Rotate speed at max. torque | 1600/1800 rpm | |
| Type of power shift | Tor-con | |
