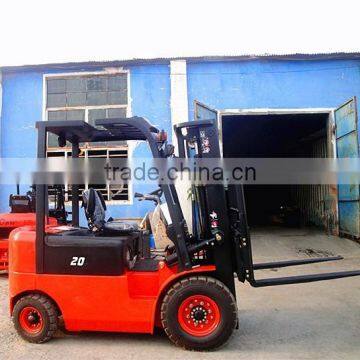

2 Tons Diesel Forklift Truck With Best Price

Name: 2 Tons Diesel Forklift Truck With Best Price
Brand: TAIAN
SKU: 129024927
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

TAIAN

Taian Dongyue Carrying Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name TAIAN

Model Number CPCD20FR

Type Powered Pallet Truck

Power Souce Diesel Engine

Rated Loading Capacity 2000kg

Max. Lifting Height 7300mm

Min. Lifting Height 3000mm

Fork Length 1070mm

Fork Width 100mm

Overall Dimensions 3605*1160*2095MM

Certification CE&ISO9001-2008

After-sales Service Provided Overseas third-party support available

2 Tons Diesel Forklift Truck with Best Price:

MODEL		CPCD20FR
Load capacity		2000 kg
Load center		500 mm
Power type		Diesel
Max. lifting speeds(with load)		400 mm/s
Max. driving speeds(with/without load)		17/19 km/h
Max towering (with load)		14/9 kn
Grade ability(with load)		15/20%
Lifting height		3000 mm
Free lift		60 mm
Tilting angles(forward-backward)		6°/12°
Min. turning radius		2450 mm
Min. Right angle aisle width		2050 mm
Min. under-clearance		110 mm
Dimensions	Overall length(including fork)	3605 mm
	Overall width	1160 mm
	Overall height(mast lowered)	2095 mm
	Overall height(mast extended)	4080 mm
Overall height to overhead guard		2095 mm
Fork overhang		451 mm
Wheel base		1640 mm
Tread	Front tread	970 mm
	Rear tread	970 mm
Tire	Front tire	7.00-12
	Rear tire	6.00-9
Total weight		3320 kg
Fork width		100 mm
Fork thickness		40 mm
Backrest height		1000 mm
Fork length		1070 mm
Engine	Engine model	490
	Rated power	39 kw
	Rotate speed at rated power	2650 rpm
	Max. Torque	157 nm
	Rotate speed at max. Torque	1980 rpm
Type of power shift		Tor-con
