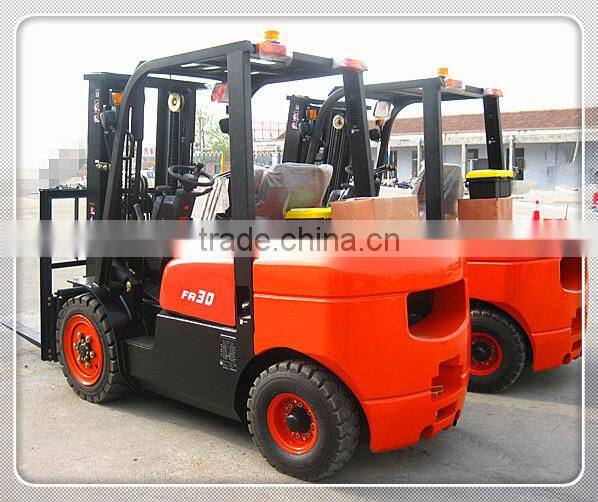

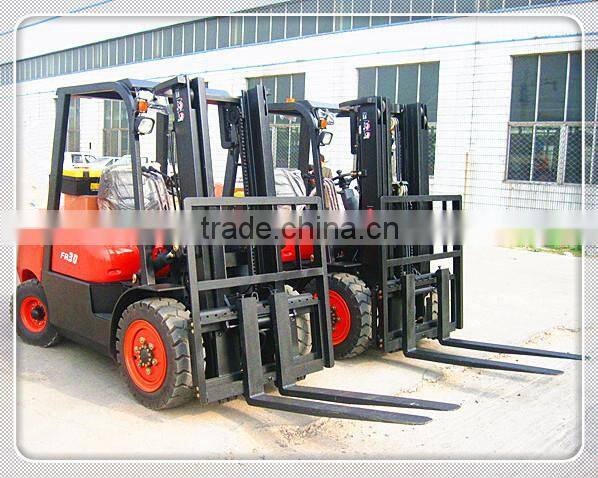

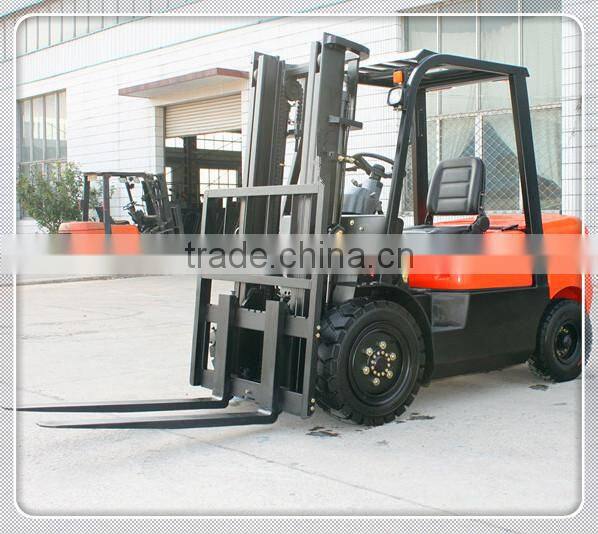

2013 Best Sale China Diesel Forklift CPCD30FR

2013 best sale China diesel forklift CPCD30FR:

(1)Load capacity:3000 kg

(2)Load center:500 mm

(3)Power type:diesel

(4)Max.lifting speeds(full load):400 mm/s

(5)Max.driving speeds(with/without load):18/20 km/h

(6)Max.towing(with/without load):15.5/10.5 kN

(7)Gradeability(with/without load):15/20 %

(8)Lifting height(H1):3000 mm

(9)Tilting angles(forward-backward)(α/β):6/12 °

(10)Min.turning radius:2500 mm

(11)Min.right angle aisle width:2110 mm

(12)Min.under-clearance:135 mm

(13)Overall height to overhead guard(H3):2110 mm

(14)Fork overhang(A1):465 mm

(15)Wheel base(A2):1700 mm

(16)Total weight:4320 kg

Dimensions:

(17)Overall length(A):3800 mm

(18)Overall width(B):1230 mm

(19)Overall height(mast lowered)(H):2110 mm

(20)Overall height(mast extend)(H2):4270 mm

Tyre:

(21)Front tyre:28*9-15

(22)Rear tyre:6.50-10

(23)Front tread(B1):1000 mm

(24)Front tread(B2):970 mm

Fork:

(25)Fork length(A3):1220 mm

(26)Fork width(B3):125 mm

(27)Fork thickness(H4):45 mm

(28)Backrest height:1225 mm

Engine:

(29)Engine model:Chinese engine 490BPG

(30)Rate power:39 kw

(31)Rotate speed at rate power:2650 rpm

(32)Max.torque:157 Nm

(33)Rotate speed at max torque:1980 rpm

Packing details:2pcs/20'CTN  5pcs/40'CTN

For optional:

(1)Engine: JAPAN ISUZU , JAPAN YANMAR , CHINA ENGINE  and so on.

(2)Mast:

2-STAGE MAST 3.3M

2-STAGE MAST 3.5M

2-STAGE MAST 4M

2-STAGE MAST 4.5M

2-STAGE MAST 5.0M

3-STAGE MAST 7.3M

3-STAGE MAST 6M

3-STAGE MAST 5.5M

3- STAGE MAST 5.0M

3-STAGE MAST 4.5M

(3)Fork:

1220 MM FORKS

1370MM FORK

1520 MM FORK

1820MM FORK

2000MM FORK

If you have any questions,pls has no hesitation to contact with us,we will supply professional and timely service.
