Specifications

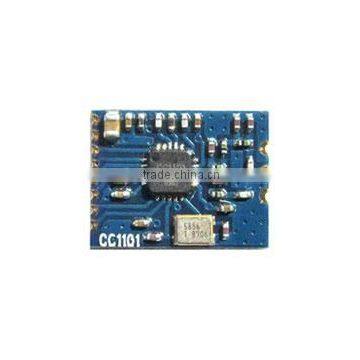

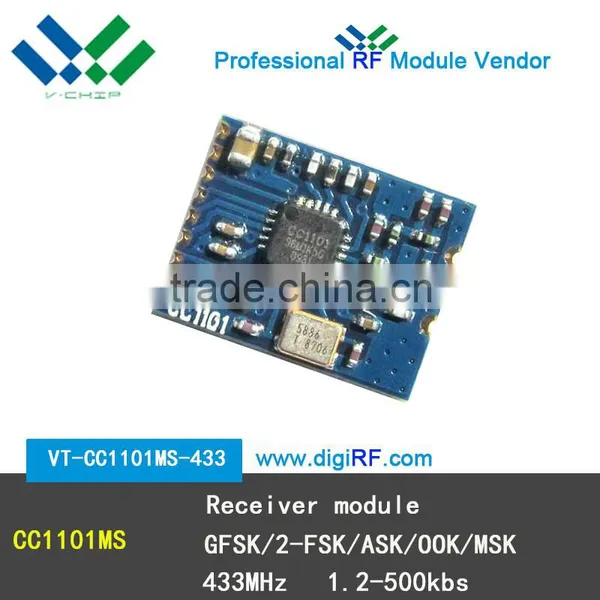

The VT-CC1101S-433M RF module is low cost and highly integrated UHF transceiver designed for very low power wireless applications
The VT-CC1101-433M RF module is low cost and highly integrated UHF transceiver designed for very low power wireless applications. These certified modules, operating in the license free 868 MHz ISM band, can be easily integrated into your application, thereby reducing development time and cost.
Key features
* Multi-channel transceiver @433MHz
* Supports FSK, GFSK, ASK/OOK and MSK
* Configurable data rates 1.2k to 500 kbps
* Separate 64 byte RX and TX data FIFOs
* Wake-on-Radio functionality
* Digital RSSI output
* Programmable Carrier Sense indicator
* Programmable output power up to 10dBm
* Optional Forward Error Correction function
* Support automatic Clear Channel Assessment
* SPI interface
* Low power 1.8~3.6V supply
* Small size only 15.2X11.8X2.4mm
Applications
* Ultra low power UHF wireless transceivers
* 315/433/868 and 915 MHz ISM/SRD band systems
* Home and building automation
* Wireless alarm and security systems
* AMR Automatic Meter Reading
* Remote gate control
* Car alarm system
* Two-way RKE Remote Keyless Entry
* Low power telemetry
* Industrial monitoring and control
* Wireless sensor networks
Electrical Characteristics
NO |
TEST ITEM |
TEST CRITERIA & REQUIREMENT |
REMARKS |
1 |
Modulation mode |
ASK/ OOK /2-FSK/GFSK /MSK |
|
2 |
Center frequency |
433MHz |
Programable |
3 |
Frequency error |
+/-10KHz |
|
4 |
Transmission power |
-30-+10dBm(10mW) |
Programable |
5 |
Receiving sensitivity |
-110 -112dBm |
1.2Kdata rate. |
6 |
Data rate |
1.2-500Kbps |
Programable |
7 |
Transmitting current |
≤30mA at 10dBm |
≤16mA at 0dBm |
8 |
Receiving current |
≤16mA |
|
9 |
Sleeping current |
≤1uA |
|
10 |
Bandwidth |
100KHz |
at ≤2.4k data rate. |
11 |
Reliable transmit distance |
200M |
at open area |
12 |
Power supply |
1.8-3.6VDC |
|
13 |
Working temperature |
-25~80 |
|
