Description

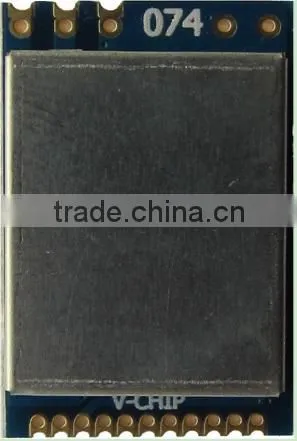

The VT-DTMSA5-433 module is designed as a wireless sub module for wireless communication between devices like controls, POS systems, data collectors etc. It offers several addressing modes and relieves the host systems of wireless-specific task such as checksum calculation, address resolution.
It can be deployed whenever the wireless exchange of data packet between two or more parties is required.
Thanks to its small size and the external SMA antenna connector, the module can easily be installed in existing systems without any external circuits.
Key Features
GFSK modulation
Communication distance up to 800 meter
Supports addressing transparent communication
Auto add preamble, checksum, address information
Supports setting mode to configure parameters Channel, Interface
Band Rate, Radio Data Rate, Output Power, Source Address,
Destination Address
UART interface
Half Duplex communication, 8N1 format
3.3V DC Power Supply
Consumption: Transmit <140mA; Receive <25mA
Optional Antenna
Application
Automatic Meter Reading
Wireless Sensor Network
Data Collector
Controls, Remote Controls
POS Systems
Building Automation
Android Controls
Specification
Testing condition:Ta=25°C, VCC=3.3V
Parameter Value Condition/Note
Center Frequency 433MHz Programmable
Modulation GFSK Customize for ASK/FSK/OOK/MSK
Output Power Max: 20dBm Programmable
Sensitivity -110dBm 1.2kbps
Radio Data Rate Max 500kbps Programmable
USB Interface Rate Max 230.4kbps Programmable
Protocol Format 8N1 Programmable
Transmit Current <140mA Depend on output power
Receive Current <25mA
Distance 800 meter Open area; 20dBm; 2.4kbps
Operate Humidity 10%~90%
Operate Temperature -20℃~85℃
Input Voltage 3.3VDC±10% ±100mV
Antenna 50ohm
Size
