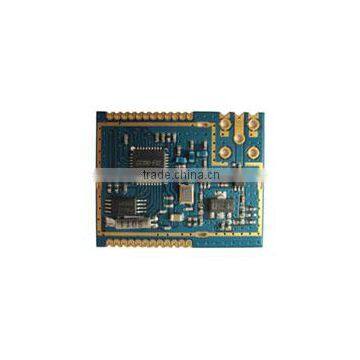

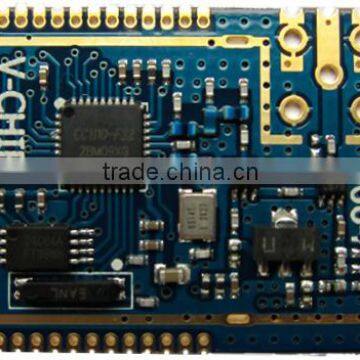

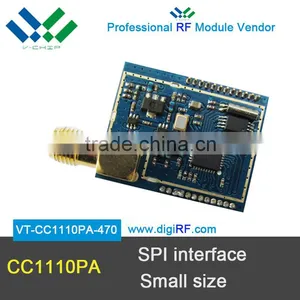

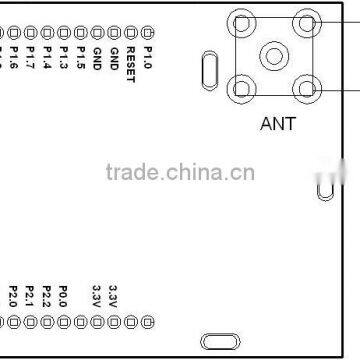

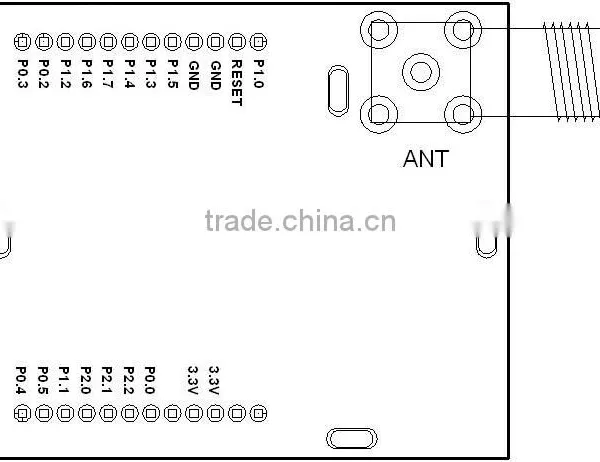

wireless 1km CC1110 pa RF Wireless module UHF transiver water meter module

General Description

VT-CC1110PA-470M is based on RF Transceiver CC1100E of TI Chipcon,it’s a small size and ultra low power UHF wireless module. CC1100E is a low cost true single chip UHF transmitter designed for very low power wireless applications. The circuit is mainly intended for the ISM (Industrial, Scientific and Medical) and SRD (Short Range Device) frequency bands at 470 and 950MHz with data rate as high as 500Kbps. The module integrated many RF functions and PA to make the maximum output power up to +22dBm. Customer can use it conveniently and reducing your development time.

Features

l  Central frequency is 470~510MHz wireless transceiver, 950~960MHz are customized.

l   Programmable baseband modulator with GFSK/2-FSK/ASK/OOK/MSK

l  Programmable data rate 1.2~500Kbps

l  Programmable output power up to +20dBm for all supported frequencies,the communication distance is above 800m in sight

l  Forward Error Correction (FEC) with interleaving and high receiver sensitivity

l  Point to point, point to multipoint communication

l  Low power consumption, especially when use chip coil inductors, the current consumption is only 70mA at 18dBm output power.

l  Programmable Carrier Sense (CS) indicator and digital RSSI output

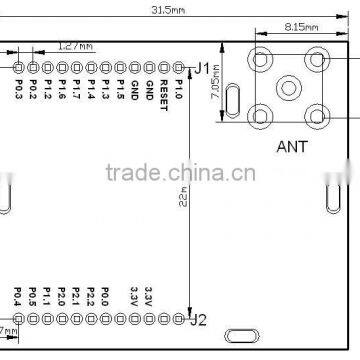

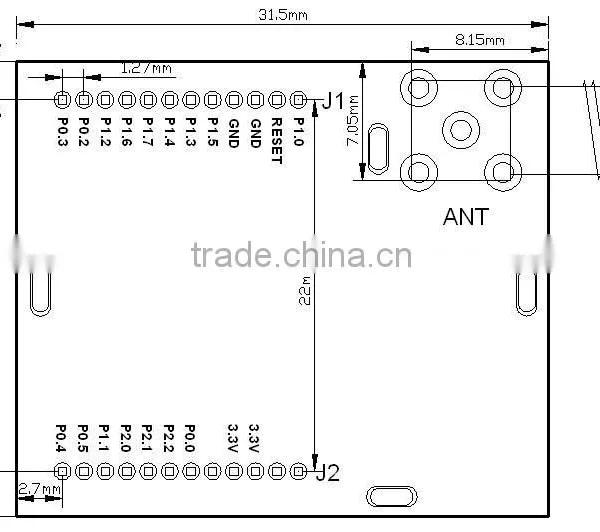

l  Small dimension: 32.0mm×17.0mm×2.4 mm

l  High performance RF system when work with MCU

l  SPI interface

Applications

l  Ultra low-power wireless applications operating in the 470/950 MHz ISM/SRD bands

     Logistics Tracking System

l  Wireless sensor networks

l  Home and building automation

l  Advanced Metering Infrastructure (AMI)

l  Wireless metering

l  Wireless alarm and security systems

General Characteristics

Test operating conditions:Ta=25°C,VCC=3.3V if nothing else stated.
