2D Underground Resistivity Imaging System Multi-electrode Converter
- 100 Set / Sets per Month
- Chongqing China
- T/T
You May Like
-
Geophysical Ground Water Resistivity Meter, Resistivity Measuring Instrument
-
Geophysical Inspection Underground Resistivity Meter
-
2016 New !!! Deep Underground Water Detection 500M Underground Water finder
-
DDC-8 Undergroud Water Detection
-
Mineral and Water Detector DZD For Mineral And Water Recources Survey
-
geological exploration instrument gps
Product Details
| Place of Origin | Chongqing, China | Brand Name | Gold | |
| Model Number | DUK-2A |
Product Description

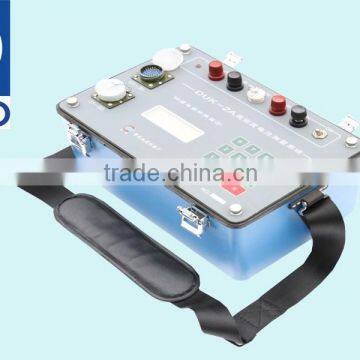

2D Underground Resistivity Imaging System Multi-electrode Converter
Being used as the multiplex electrode converter to DZD-6A multi-function dc resistivity and ip instrument, these two instruments combine to be the DUK-2A multi-electrode resistivity survey system.
Widely used for high-resolution research, tomography and monitoring applications.High resolution engineering geological exploration, civil engineering, hydrology engineering, environmental. Metal and non-metallic resources exploration and geothermal exploration.
DUK-2A multiplex electrode converter
Conversion electrodes: 60 channels or 120 channels
Operating mode: 16-key keypad with 90 character LCD display combines to form man-machine dialogue operation.
Maximum allowable current: 2A
Maximum withstand voltage: 500V DC
Insulating property: 500M ohm
Working temperature: -10C Celcius ~ +50C Celcius
Weight: 7kg (60 channels)/ 7.5kg (120 channels)
Volume: 305*200*202mm (60 channels)/ 324*200*245mm (120 channels)
