4G/NB-IOT/LoRa/WiFi Wireless Industrial Temperature Sensor

4G/NB-IOT/LoRa/WiFi Wireless Industrial Temperature Sensor

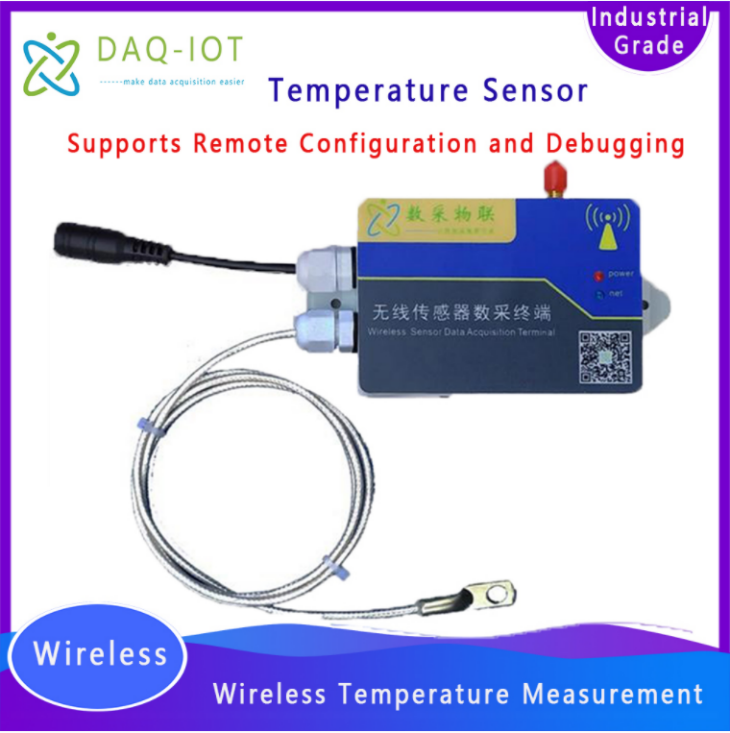

DAQ-GP-PT100 wireless industrial temperature sensor transmitter terminal is a wireless temperature measurement product for industrial field launched by Shanghai Data Acquisition Technology Co., LTD. This product converts the thermocouple and thermal resistance signals into input electrical signals or measured temperatures and reports the data regularly in 4G/LORA and other ways. As a new generation of temperature measurement data cloud products can be widely used in metallurgy, petrochemical, electric power, light industry, textile, food, national defense and scientific research and other industrial sectors.

The sensor terminal supports 4G/NB-IOT/LoRa/WiFi communication mode (NB-IOT/LoRa communication mode is used by default for battery power supply), which overcomes the wireless communication block caused by the special environment of the site, greatly simplifying the site deployment time and reducing construction costs. This terminal can support up to 8 channels of temperature acquisition, with pt100 temperature probe shape variety, wide measuring temperature range, high measuring accuracy, easy to install.

We solemnly promise that:

 What you buy is not only the product, but also the meticulous and thoughtful technical support services!!!( =^_^= )

 This product, the site only ordinary workers connected to electricity installation! No debugging!

 We provide free remote guidance, remote configuration and debugging service, and send the data to the user-specified cloud platform.

Free Internet of Things solution consulting services!

Collection Type: contact point temperature

Temperature Range: -200℃~+450℃

Temperature Accuracy Class: 0.2 degrees

Collection Frequency: 1 second to 24 hours. Remote configuration is supported

Power Supply: Battery power supply or 12V DC /220V AC

Wireless Transmission Mode: NB-IOT / LoRa / WiFi

Communication Protocol: MQTT / TCP / UDP / HTTP / SSL / ModBus RTU, and other protocols can be customized

Data Forwarding: any public network server

Number of Server Centers: up to simultaneous data reporting to 7 cloud servers.

Heartbeat Packet: support custom heartbeat packet, can be set to signal intensity.

Registration Package: support custom registration package, can be set to IMEI code.

Positioning: Support LBS base station positioning to facilitate the query of device location.

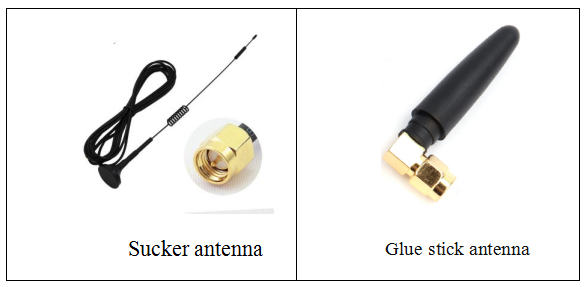

Antenna Type: sucker or glue stick external antenna (optional built-in antenna)

Material: PC plastic (enclosure)

Main Protection Level: IP65

Main Body Size: 200mm×94mm×60mm

Ranging Probe Structure: patch type

Main Mounting Method: wall hanging or screw fastening

Probe Installation Method: adhesive or screw fastening, cable binding installation

Ambient Temperature:-25°C～75°C，Humidity: 0~95% (non-condensing)

v Simple installation, fast deployment, help the Internet of things project quickly landing.

v Support custom registration package and heartbeat package, facilitate the platform to distinguish devices.

v Support any private Internet of Things cloud platform and configuration software, and provide data protocol docking.

v Support Ali cloud, Baidu Tiangong, OneNet, Tencent Cloud and other mainstream cloud platforms.

v Supports multiple external sensors.

v Non-invasive measurement, which does not affect the normal operation of the equipment.

v Support remote configuration parameters and FOTA remote upgrade to minimize the personnel cost of site construction and maintenance.

For UDP / TCP / MQTT / HTTP and other push methods, users should provide the public network IP (or domain name) address and port number of the cloud server to receive the data.

Example of JSON format:

{"T":56.72,"ID":"860344048491162"}

Message analysis:

{

"T": 56.72, // The temperature of the first channel

"ID": "860344048491162" //Device ID

}

If you need to customize other communication protocols, you can contact the business personnel to communicate them.

The product is connected to our designated industrial Internet of Things platform by default, and the platform interface is as follows:

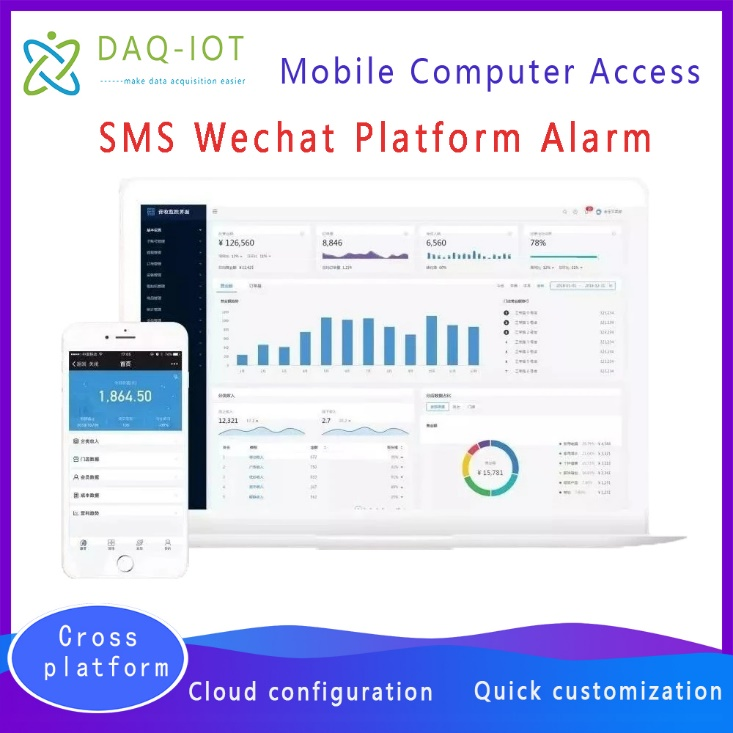

Computer-side browser interface

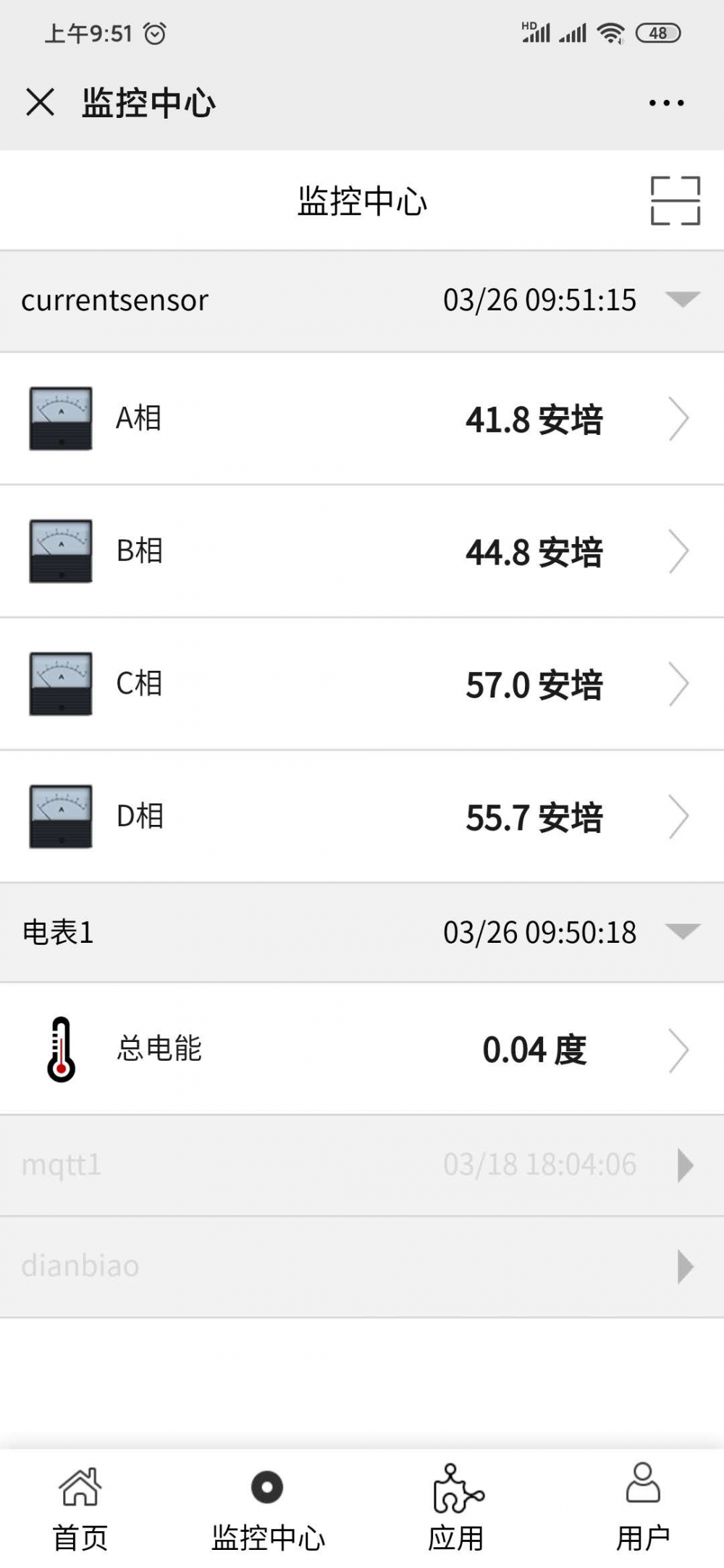

Mobile terminal WeChat access interface

Take the connection of Ali Cloud platform as an example. After users create products and add devices on the Ali Cloud Internet of Things platform, users need to provide a triad: {ProductKey, DeviceName, DeviceSecret} and the MQTT theme to be released.

For example, the value of triples is:

ProductKey = b0FMK1Ga5cp

DeviceName = 862991419835241

DeviceSecret = y7MTCG6Gk33Ux26bbWSpANl4OaI0bg5Q

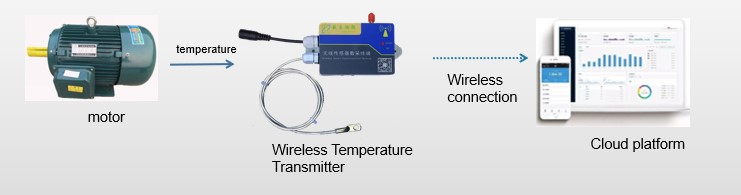

Equipment operating temperature monitoring
