summary

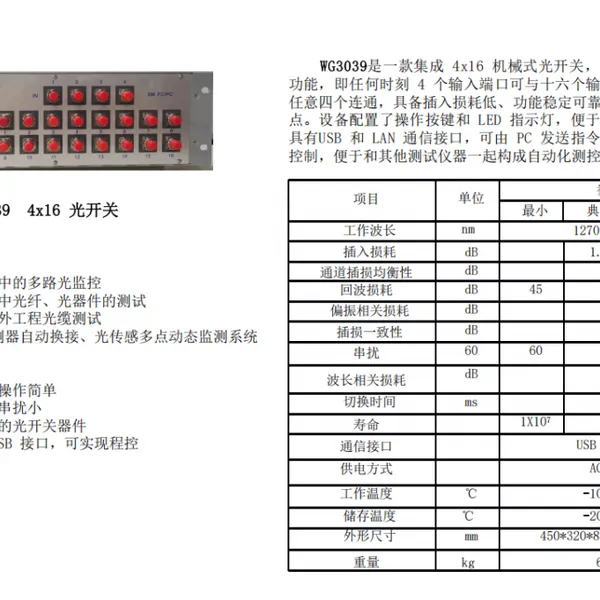

WG3031 is an integrated 4x16 mechanical optical switch with all-optical switching function, which means there are 4 switches at any time
The input port can be connected to any four of the sixteen output ports, with low insertion loss and stable functionality
The characteristic of good reliability and repeatability. The device is equipped with operation buttons and LED indicator lights for easy manual setting. Simultaneously possessing
USB and LAN communication interfaces, allowing PC to send commands to complete all operations and controls, facilitating integration with other testing instruments
Construct an automated measurement and control system.
characteristic
High integration and easy operation.
Low insertion loss and crosstalk.
Manual buttons and LED indicator lights.
USB and LAN interfaces enable program control.
performance index
Project Unit
index
Minimum Typical Maximum
Working wavelength nm 1270-1650
Insertion loss dB 1.5 3.0
Channel insertion loss balance dB 0.5
Return loss dB 45
Polarization related loss dB 0.15
Insertion loss consistency dB 0.05
Crosstalk dB 60
Wavelength related loss dB 0.4
Switching time ms 20
Life cycle 1x10
seven
Communication interface USB&LAN
Power supply mode AC110-260V
Whole machine power consumption WWorking temperature ºC -10~+50
Storage temperature ºC -20~+70
Storage humidity 90% RH
Dimensions mm 450 320 88 (length width height)
Weight kg 6.0
