Application:
1. Water resources, metal and nonmetal mineral resources detection
2. City geophysical exploration, railway and bridge inspection
3. Hydrology and engineering geology as inspecting dam base and flood protection levee for incipient faults
4. Geothermal prospecting
Function:
1. 1D resistivity sounding
2. 1D induced polarization sounding
3. 2D resistivity imaging

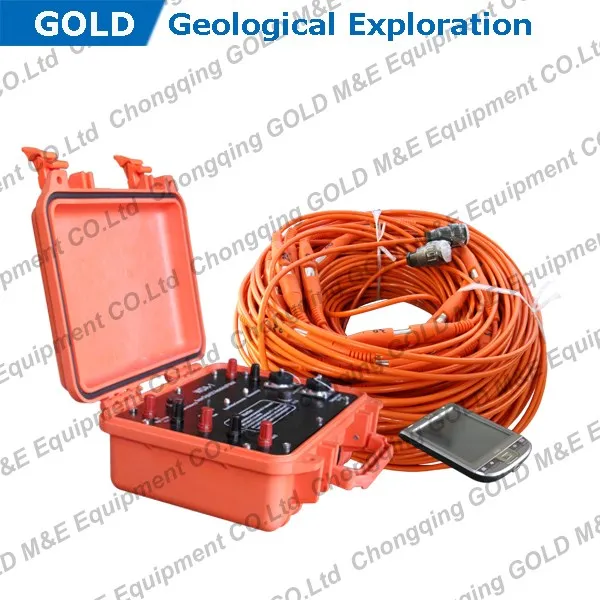

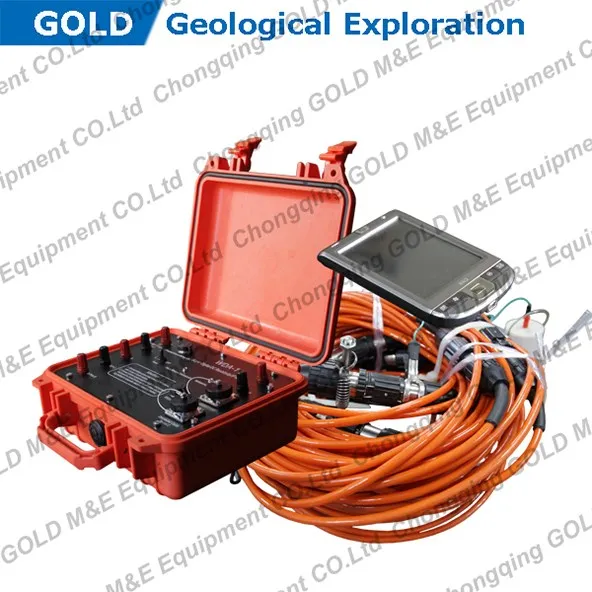

System composition:
Whole system takes WDA-1 as control unit, can accomplish centralized 2D multi-electrode resistivity survey with WDZJ-4(60 channels)/WDZJ-120(120 channels) multi-electrode converter, centralized multi-electrode survey cable and electrodes.
Specification:

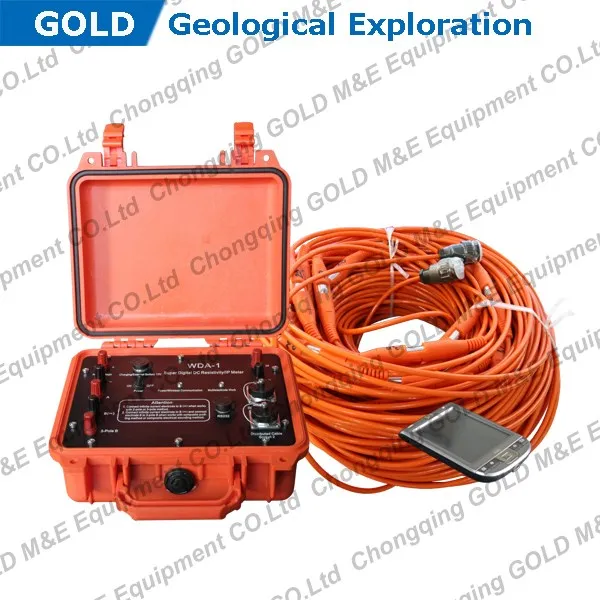

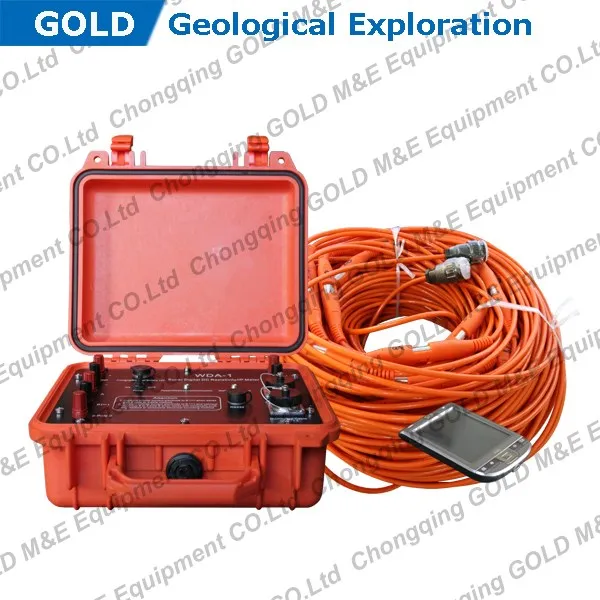

WDA-1 control and survey unit
Receiving part
1. voltage channel: ±32V(24 bitA/D)
accuracy: as Vp≥5mV, ±0.2% ±1 character
as 0.1mV≤Vp<5mV, ±1% ±1 character
2. Input impedance: >50MΩ
3. Apparent polarization accuracy: ±1%±1character
4. SP compensation range: ±10V
5. Current channel: 6A(24bitA/D)
measurement accuracy: as Ip≥5mA, ±0.2% ±1character; as 0.1mA≤Ip<5mA, ±1% ±1character
6. As for 50Hz industrial interface(common and different mode)depression is better than 80dB
Transmitter part
1. maximium power: 7200W
2. maximium supply voltage: ±1200V
3. maximium supply current: ±6A
4. supply current width :1~60s, duty rate 1:1
Other
1. working temperature: -10℃~+50℃,95%RH
2. storge temperature: -20℃~+60℃
3. power supply: builtin 7.4V4Ah(or outside 12V), lasting for 20h
4. main unit port: A, B, M, N, DC high voltage, outside battery, 2 cable port, RS-232, blue tooth
5. weight: ≤4kg
6. size : 270mm×246mm×123mm
Pocket PC
1. Windos Mobile 5.0 system, 624MHz, 640×480true color, 128MB Flash ROM / 64MB SDRAM,512MB CF card, blue
tooth, infrared, serial port, 2 rechargeable batteries, with Word, Excl.
WDZJ-4 Electrode converter
Max electrode connected: 60/unit
Insulation impedance: ≥500MΩ
Max working voltage: 500VDC
Max working current: 2.5ADC
Power supply: Internal 7.4V 4AH rechargeable lithium battery, last for continuously 25 hours work
Working temperature: -10°C~+50°C
Dimension: 340mm×295mm×152mm
Weight: 5.8kg
Centralized 2D Multi-electrode resistivity cable (optional)
1. 32 cores, diameter: Φ6mm.
2. Connectable cable quantity for each converter: 2 pcs (30 channels/pc), can be customized.
3. Channel interval: 5m/10m
4. Maximum working voltage: 450V
5. Maximum working current: 3A
6. Cable insulativity: ≥500MΩ/500V between any two cores.
Centralized 2D Multi-electrode resistivity electrode
1. Copper electrode: Φ12mm×280mm, with connector.
2. Quantity: acquired by customer.
Packing detailes:
The packing information will be different according to different configuration. The specific dimension can be provided once the configuration is settled.
Any question please feel free to contact:
Gold Tao
Mobile phone: +86 15922982462
Tel: +86-23-67624421
Fax: +86-23-62940030
Skype: goldgeo
WGMD-4
Centralized 2D Underground Resistivity Imaging System
WGMD-9A
Distributed 2D/3D Underground Resistivity Imaging System
WGMD-9B
Distributed 2D Underground Resistivity and IP Imaging System
