Overview

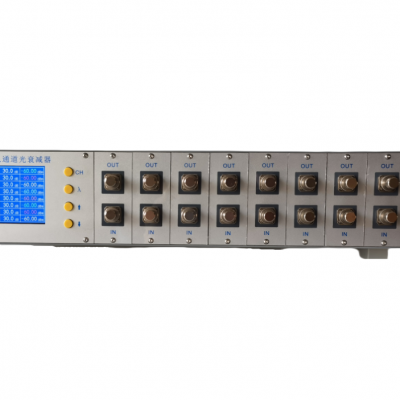

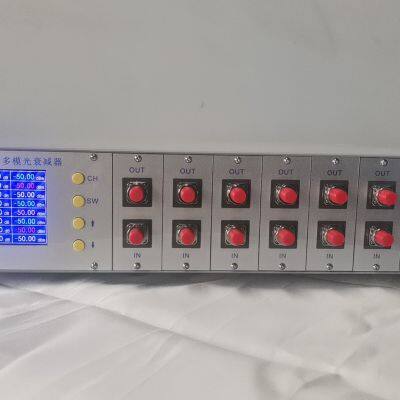

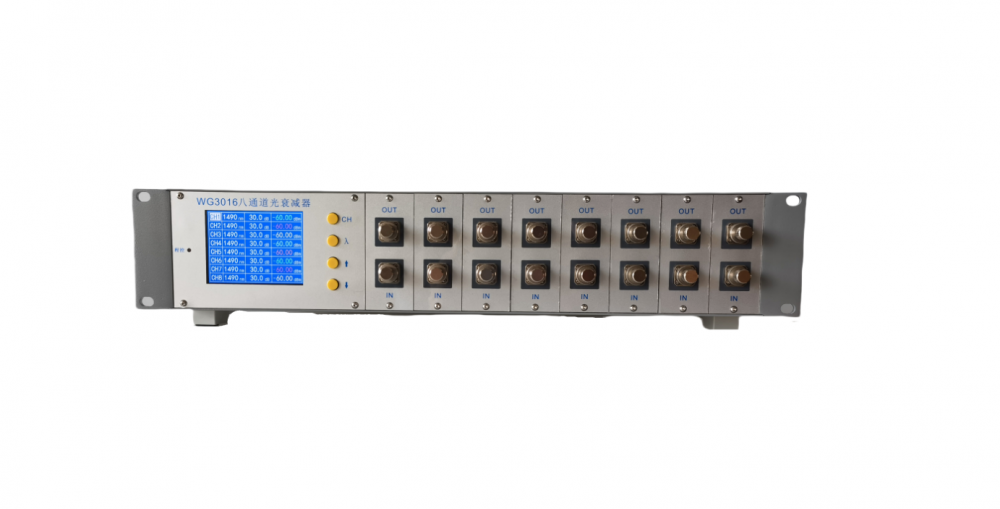

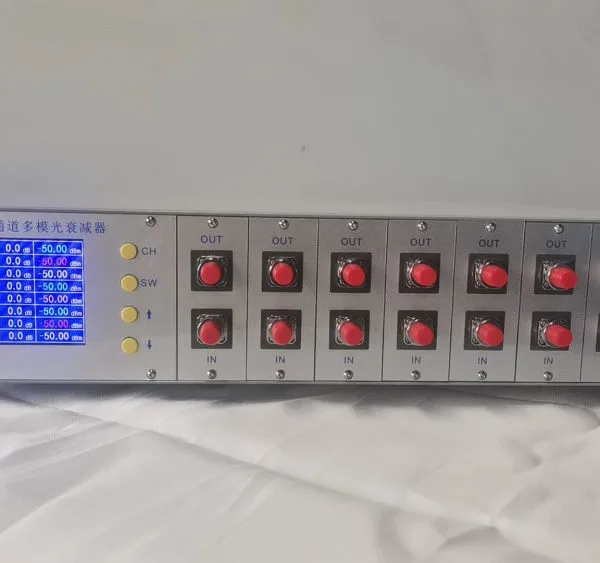

The WG3016 eight-channel single-mode adjustable optical attenuator is an integrated optical instrument designed based on MEMES VOA devices.
Working at three wavelengths of 1310/1490/1550nm, including eight independent optical attenuators and control circuits, each channel can
Adjustable in 0.1dB steps over a 70dB range. Digital keys, stable and reliable function, repeatable
Sex is high. The instrument also has RS232 and USB interface functions, and all operations and controls can be completed by sending commands from the PC.
It is convenient to form an automatic measurement and control system together with other test instruments, which greatly improves the user's good experience process.
This instrument is a powerful tool in the production and testing process of optical fiber products, which can greatly improve the testing efficiency.
Features
1 High precision digital attenuation adjustment.
2 70dB wide dynamic range adjustment.
3 high resolution TFT LCD display.
4 RS232 interface and USB interface for program control.

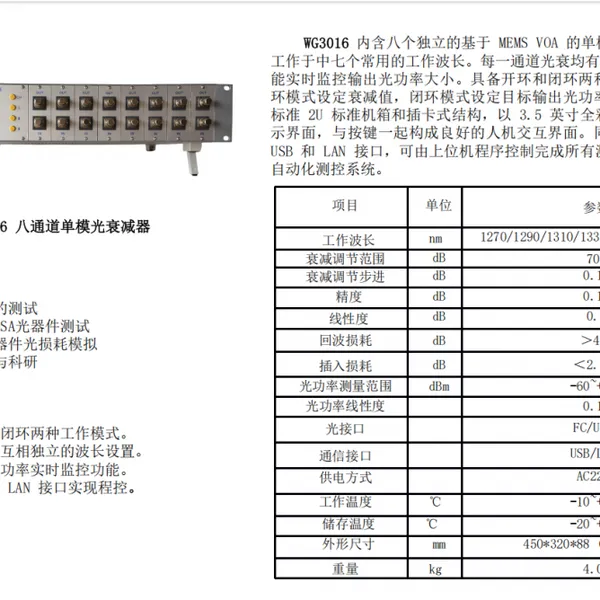

Performance
Project Unit Indicator
Working wavelength nm 1270/1310/1490/1550/1577
Attenuation adjustment range dB 70
Adjustment step dB 0.1
Accuracy dB 0.1
Linearity dB 0.1
Repeatability dB ±0.05
Minimum insertion loss dB Polarization dependent loss dB
Maximum input optical power dBm 24
Return loss dB >45dB
Optical interface FC
Communication interface RS232/USB
Power supply mode AC220V
Working temperature ºC -10~+50
Storage temperature ºC -20~+70
Storage humidity -90%RH
Dimensions mm 335x280x135 (LxWxH)
Weight kg 1.5
