Digital Load Cell Controller

Name: Digital Load Cell Controller
Brand: GOLDSHINE
SKU: 128763945
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

GOLDSHINE

Model Number:

GS316

Ningbo Goldshine Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name GOLDSHINE

Model Number GS316

Usage Pressure Sensor

Theory Resistance Sensor

Output Other, Analog sensor/Digital sensor

Product Description

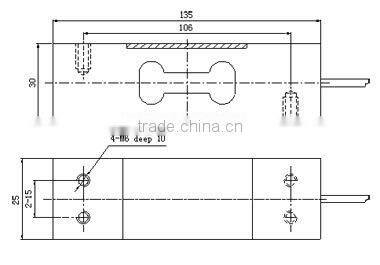

The type GS316 is a stainless steel single point load cell with a high performance potting for superior environmental protection.

Application :Retail scales and bench scales

Key Features: Stainless steel construction ; Environmental Protection IP67; Low profile design . Packed Weight:1.0 kg

Technical parameter

Rated Load	7/10/20/50/100kg
Sensitivity	(2.0±0.1%) mV/V
Combined Error	±0.1% F.S
Creep Error(30min)	±0.02% F.S
Zero Balance	±1% F.S
Temp. Effect On Zero	±0.02% F.S/10°C
Temp. Effect On Span	±0.02% F.S/10°C
Input Resistance	385±5Ω
Output Resistance	352±2Ω
Insulation Resistance	≥5000MΩ
Operating Temperature Range	-30~+70°C
Maximum Safe Over Load	150%F.S
Ultimate Over Load	300%F.S
Recommend Excitation Voltage	10~12V DC
Maximum Excitation Voltage	15V DC
Sealing Class	IP67
Element Material	Alloy Steel / Stainless Steel
Cable	Length=L: 1.5m
Citation	GB/T7551-1997/ OIML R60
Mode Of Connection	Red(Input+),Black(Input-),Green(Output+),White(Output-)
