Digital Load Cell Strain Gauge

Digital Load Cell Strain Gauge photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GOLDSHINE
Model Number:
GS315
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name GOLDSHINE
Model Number GS315
Usage Pressure Sensor
Theory Resistance Sensor
Output Other, Analog sensor/Digital sensor

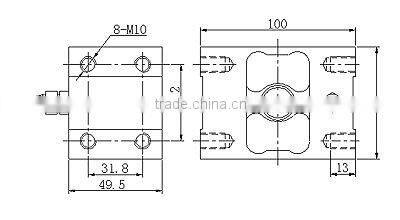

Digital Load cell strain gauge

Product Description:

The type GS315is a stainless steel single point load cell with complete hermetic sealing. It is a perfect fit for use in harsh industrial environments.

Application: Conveyor scales, hopper and tank weighing systems

Key Features: Stainless steel construction ; Environmental Protection IP68 with complete hermetic sealing Suitable for wall mounting ; Maximum platform size up to 1000 x 1000 mm ; High input resistance

Packed Weight: Capacity (kg) 20 150 ; Weight (kg) 1.8 2.0

Maximum platform size; loading acc.: 600 x 600 for 20 kg / 1 000 x 1 000 for 150 kg

Technical Parameter:

Rated Load:

20/30/50/75/100/150kg

Sensitivity:

(2.0±0.1%) mV/V

Combined Error:

±0.1% F.S

Creep Error(30min):

±0.02% F.S

Zero Balance:

±1% F.S

Temp. Effect On Zero:

±0.02% F.S/10°C

Temp. Effect On Span:

±0.02% F.S/10°C

Input Resistance:

385±5Ω

Output Resistance:

352±2Ω

Insulation Resistance:

≥5000MΩ

Operating Temperature Range

-30~+70°C

Maximum Safe Over Load:

150%F.S

Ultimate Over Load:

300%F.S

Recommend Excitation Voltage:

10~12V DC

Maximum Excitation Voltage:

15V DC

Sealing Class:

IP68

Element Material:

Alloy Steel/ Stainless Steel

Cable:

Length=L: 6m

Citation:

GB/T7551-1997/ OIML R60

Mode Of Connection:

Red(Input+),Black(Input-),Green(Output+),White(Output-)
