Position Encoder Sensor

Name: Position Encoder Sensor
Brand: GOLDSHINE
SKU: 128763961
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GOLDSHINE

Model Number:

GS314

Contact Supplier Request Quote Chat Now

Ningbo Goldshine Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GOLDSHINE

Model Number GS314

Usage Pressure Sensor

Theory Resistance Sensor

Output Other, Analog sensor/Digital sensor

Product Description:

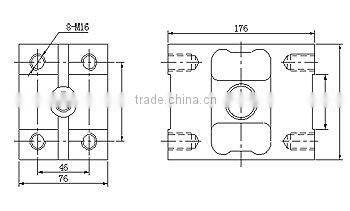

The type GS314 is a stainless steel high capacity single point load cell with complete hermetic sealing. It is a perfect fit for use in harsh industrial environments. Application: On-board vehicle weighing, floor scales, conveyor scales, hopper and tank weighing systems

Key Features:

Stainless steel construction, Environmental Protection IP68 with complete hermetic sealing, Side mount, rugged design with low sensitivity to moment Maximum platform size up to 1200 x 1200 mm ,High input resistance; Packed Weight: 8.3 kg

Technical Parameter:

Rated Load:	1000/1500/2000/3000kg
Sensitivity:	(2.0±0.1%) mV/V
Combined Error:	±0.1% F.S
Creep Error(30min):	±0.02% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.02% F.S/10°C
Temp. Effect On Span:	±0.02% F.S/10°C
Input Resistance:	385±5Ω
Output Resistance:	352±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temperature Range	-30~+70°C
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	300%F.S
Recommend Excitation Voltage:	10~12V DC
Maximum Excitation Voltage:	15V DC
Sealing Class:	IP68
Element Material:	Alloy Steel/ Stainless Steel
Cable:	Length=L: 6m
Citation:	GB/T7551-1997/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
