Bending Beam Load Cell

Name: Bending Beam Load Cell
Brand: GOLDSHINE
SKU: 128763941
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

GOLDSHINE

Model Number:

GS317

Ningbo Goldshine Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name GOLDSHINE

Model Number GS317

Usage Pressure Sensor

Theory Resistance Sensor

Output Other, Analog sensor/Digital sensor

Product Description:

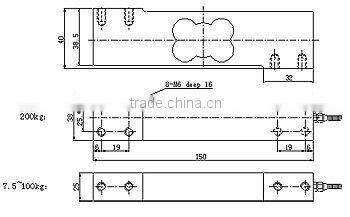

The type GS317 is a stainless steel single point load cell with an improved potting. It is suitable for use in industrial environments.

Application : Bench and floor scales, conveyor scales

Key Features : Stainless steel construction, Environmental Protection IP67 (IP65 for 7.5 kg and 10 kg), Integral mounting spacer

Packed Weight: Capacity (kg) 7.5–100 200 Weight (kg) 1.2 1.6

Maximum platform size; loading: 350x350 for 7.5...15 kg / 450x450 for 30...75 kg / 600x600 for 100...200 kg

Technical Parameter

Rated Load	7.5/10/15/30/50/75/100/200kg
Sensitivity	(2.0±0.1%) mV/V
Combined Error	±0.1% F.S
Creep Error(30min)	±0.02% F.S
Zero Balance	±1% F.S
Temp. Effect On Zero	±0.02% F.S/10°C
Temp. Effect On Span	±0.02% F.S/10°C
Input Resistance	385±5Ω
Output Resistance	352±2Ω
Insulation Resistance	≥5000MΩ
Operating Temperature Range	-30~+70°C
Maximum Safe Over Load	150%F.S
Ultimate Over Load	300%F.S
Recommend Excitation Voltage	10~12V DC
Maximum Excitation Voltage	15V DC
Sealing Class	IP65
Element Material	Alloy Steel / Stainless Steel
Cable	Length=L: 3m
Citation	GB/T7551-1997/ OIML R60
Mode Of Connection	Red(Input+),Black(Input-),Green(Output+),White(Output-)
