Electronic Load Cell Scale Part

Electronic Load Cell Scale Part thumbnail-1
Electronic Load Cell Scale Part photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GOLDSHINE
Model Number:
GS318
Contact Supplier Request Quote Chat Now
Ningbo Goldshine Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GOLDSHINE
Model Number GS318
Usage Pressure Sensor
Theory Resistance Sensor
Output Other, Analog sensor/Digital sensor

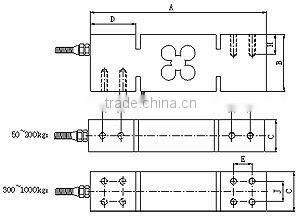

Electronic Load cell scale part

Unit: mm

Cap./Size

A

B

C

D

E

F

H

M

J

50kg

118

31

19

32

19

65

11

M8

-

100kg

118

31

31

32

19

65

11

M8

-

200kg

118

31

31

32

19

65

11

M8

-

300~500kg

118

49

49

32

19

-

14

M8

30

1000kg

156

69

69

41

25

-

16

M10

50

Main Features:

Off center load compensated

For platform scale

Shielded connection cable

Test certificate available upon request

Technical Parameter:

Rated load

50/100/200/300/500/750/1000kg

Sensitivity

(2.0±0.1%) mV/V

Combined error

±0.03% F.S

Creep Error(30min)

±0.02% F.S

Zero balance

±1% F.S

Temp. effect on zero:

±0.02% F.S/10°C

Temp. effect on Span:

±0.02% F.S/10°C

Input resistance:

385±5Ω

Output resistance:

352±2Ω

Insulation resistance:

≥5000MΩ

Operating Temperature Range

-30~+70°C

Maximum safe over load:

150%F.S

Ultimate over load:

300%F.S

Recommend excitation voltage:

10~12V DC

Maximum excitation voltage:

15V DC

Sealing Class:

IP67/IP68

Element material:

Alloy Steel, Stainless Steel

Cable:

Length=L:3m

Citation

GB/T7551-1997/ OIML R60

Mode of Connection

Red(Input+),Black(Input-),Green(Output+),White(Output-)
