Home > Electrical & Electronics > Sensor > Pressure Sensor > Electronic Strain Gauge Load Cell

Electronic Strain Gauge Load Cell

Name: Electronic Strain Gauge Load Cell
Brand: GOLDSHINE
SKU: 128763919
Availability: InStock

Electronic Strain Gauge Load Cell thumbnail-1

Electronic Strain Gauge Load Cell photo-1

US$ 24 - 68 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GOLDSHINE

Model Number:

GS322

Contact Supplier Request Quote Chat Now

Ningbo Goldshine Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GOLDSHINE

Model Number GS322

Usage Pressure Sensor

Theory Resistance Sensor

Output Other, Analog sensor/Digital sensor

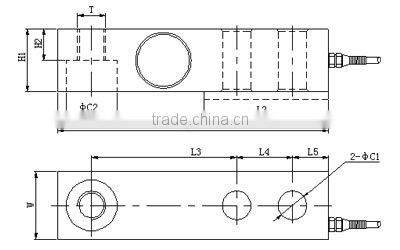

Unit: mm

Cap/Size	L1	L2	L3	L4	L5	H1	H2	C1	C2	W	T
100~2,000kg	130	57.2	76.2	25.4	15.8	31.8	15.2	13.5	20.6	31.8	M12×1.75
3,000~5,000kg	171.5	76.2	95.3	38.1	19.1	38.1	19.1	19.8	30.2	38.1	M18×1.5
10,000kg	222.3	101.6	120.7	50.8	25.4	50.8	25.4	26.2	46	50.8	M24×2
20,000kg	241.5	110	132	55	27.5	58	32	30.2	50	58	M36×2

Product Characteristics:

GS322 series is single shear beam. One end of the load cell is fixed, another loaded and rocker pressure head transfers force. Easy installation and it is suitable for floor scale, automobile test facilities, hopper scale and other electronic weighing devices.

Technical Parameter:

Rated Load:	100/200/250/500/1000/2000/3000/5000/10000/20000kg
Sensitivity:	(2.0±0.1%) mV/V
Combined Error:	±0.02% F.S
Creep Error(30min):	±0.02% F.S
Zero Balance:	±1% F.S
Temp. Effect On Zero:	±0.02% F.S/10°C
Temp. Effect On Span:	±0.02% F.S/10°C
Input Resistance:	385±5Ω
Output Resistance:	352±2Ω
Insulation Resistance:	≥5000MΩ
Operating Temperature Range	-30~+70°C
Maximum Safe Over Load:	150%F.S
Ultimate Over Load:	250%F.S
Recommend Excitation Voltage:	10~12V DC
Maximum Excitation Voltage:	15V DC
Sealing Class:	IP67/IP68
Element Material:	Alloy Steel, Stainless Steel
Cable:	Length=L:3m
Citation:	GB/T7551-1997/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)
