Home > Products > Single Point Load Cell > Electronic Shear beam load cell

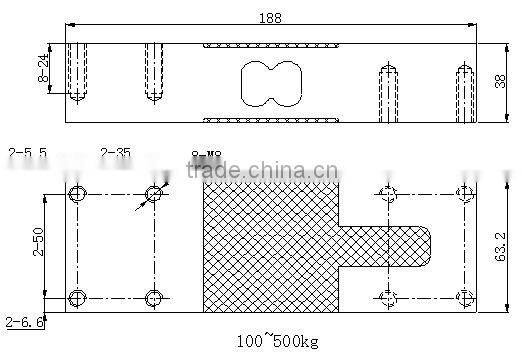

Electronic Shear beam load cell
- 10000 Piece / Pieces per Month
- Ningbo or Shanghai
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | GOLDSHINE | |
| Model Number | GS323 | Usage | Pressure Sensor | |
| Theory | Resistance Sensor | Output | Other, Analog sensor/Digital sensor |
Product Description
Technical Parameter
Rated Load | 100/200/300/500/750/1000kg |
Sensitivity | (2.0±0.1%) mV/V |
Combined Error | ±0.05% F.S |
Creep Error(30min) | ±0.02% F.S |
Zero Balance | ±1% F.S |
Tco | ±0.02% F.S/10°C |
Tc Span | ±0.02% F.S/10°C |
Input Resistance | 385±5Ω |
Output Resistance | 351±2Ω |
Insulation Resistance | ≥5000MΩ |
Operating Temperature Range | -30~+70°C |
Maximum Safe Over Load | 150%F.S |
Ultimate Over Load | 300%F.S |
Recommend Excitation Voltage | 10~12V DC |
Maximum Excitation Voltage | 15V DC |
Sealing Class | IP65 |
Element Material | Alloy Steel , Stainless Steel |
Cable | Length=L:3m |
Citation | GB/T7551-1997/ OIML R60 |
Mode Of Connection | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
Contact Us
- Ningbo Goldshine Electronic Co., Ltd.
- Contact nameCelia Qi Chat Now
- Phone86-574-86902686
- AddressNo.3 Building Xiapu Industry Zone Ningbo , China ZIP: 315807, Ningbo, Zhejiang
