Wireless Dynamometer With Wireless Indicator Load Cell

Wireless Dynamometer With Wireless Indicator Load Cell thumbnail-1
Wireless Dynamometer With Wireless Indicator Load Cell thumbnail-2
Wireless Dynamometer With Wireless Indicator Load Cell thumbnail-3
Wireless Dynamometer With Wireless Indicator Load Cell photo-1

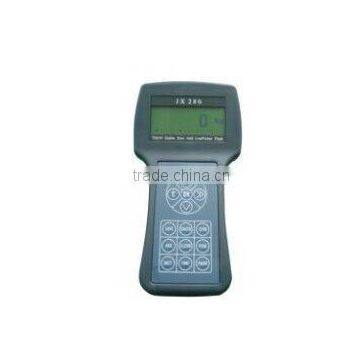

Wireless Dynamometer With Wireless Indicator Load Cell photo-2
Wireless Dynamometer With Wireless Indicator Load Cell photo-3
US$ 10 - 500 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GOLDSHINE
Model Number:
JXCS-SW6W
Contact Supplier Request Quote Chat Now
Ningbo Goldshine Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GOLDSHINE
Model Number JXCS-SW6W



Product Description





Profile:

Wireless dynamometer / wireless dyna-link SW6W wireless Dyna-link load guage is an extremely well-built instrument for industry use ,as a standard wireless tool offer universal applications, Whether used as conventional crane weigher or to measure force, ERT wireless Dyna-link load guage is microprocessor controlled for precision accuracy, calibration is easier with wireless indicator.

Standard Features:

Rugged construction. Accuracy: 0.05% of capacity. All functions and units are clearly display on the LCD (with backlighting).Digits are 1 inch high for easy distant viewing. Two user programmable Set-Point can be used for safety and warning applications or for limit weighing. Long battery life on 3 standard “LR6(AA)”size alkaline batteries. All commonly used internationally recognized units are available:kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN),Infrared Remote control easier to calibration(with password), Infrared Remote control with many functions: “ZERO”,”TARE”,”CLEAR”, “PEAK”,”ACCUMULATE”,”HOLD”,”UnitChange”,”Voltage Check” and “Power OFF”,4 local mechanical keys:”ON/OFF”,”ZERO”,”PEAK” and ”Unit Change”,low battery warning.

Main Technical Data:

Display:

25mm (1’’) 5digits LCD

Power On Zero Range:

20% F.S.

Manual Zero Range:

4% F.S.

Tare Range:

20% F.S.

Stable Time:

≤10seconds;

Overload Indication:

100% F.S. + 9e

Max. Safety Load:

125% F.S.

Ultimate Load:

400% F.S.

Battery Life:

≥40 hours

Battery Type:

“LR6(AA)”size alkaline batteries. 1.5VX3

Operating Temp:

- 10℃ ~ + 40℃

Operating Humidity:

≤85% RH under 20℃

Remote Controller Distance:

Min. 15m

Wireless Frequency:

2.4GHz(default),433MHz,860MHz(optional)

Wireless Distance:

Min. 80m(default) [200m(optional)]

 Dimension:

Wireless Dynamometer With Wireless Indicator Load Cell



DIMENSIONS(Dimensions shown are nominal and subject to tolerances)

Model

CAP

Div

A

B

C

D

φ

H

Material



(mm)

JXCS-SW6W-01

1t

0.5kg

245

112

37

190

43

335

Aluminum

JXCS-SW6W-02

2t

1kg

245

116

37

190

43

335

Aluminum

JXCS-SW6W-03

3t

1kg

260

123

37

195

51

365

Aluminum

JXCS-SW6W-05

5t

2kg

285

123

57

210

58

405

Aluminum

JXCS-SW6W-10

10t

5kg

320

120

57

230

92

535

Alloy Steel

JXCS-SW6W-20

20t

10kg

420

128

74

260

127

660

Alloy Steel

JXCS-SW6W-30

30

10kg

420

138

82

280

146

740

Alloy Steel

JXCS-SW6W-50

50t

20kg

465

150

104

305

184

930

Alloy Steel

JXCS-SW6W-100

100t

50kg

570

190

132

366

229

1230

Alloy Steel

JXCS-SW6W-200

200t

100kg

725

265

183

440

280

1380

Alloy Steel

Weights:

Model(SW6W)

-01

-02

-03

-05

-10

-20

-30

-50

-100

-200

Unit Weight(kg)

1.6

1.7

2.1

2.7

10.4

17.8

25

39

81

210

Weight with shackles(kg)

3.1

3.2

4.6

6.3

24.8

48.6

87

128

321

776



Specification:



Model

Max. Capacity(Kg/Ib)

Min. Weigh

(Kg/Ib)

Division

(Kg/Ib)

Total Display

Counts (N)

JXCS-SW6W-01

1000/2200

10/20

0.5/1

2000

JXCS-SW6W-02

2000/4400

20/40

1/2

2000

JXCS-SW6W-03

3000/6600

20/40

1/2

3000

JXCS-SW6W-05

5000/1100

40/80

2/4

2500

JXCS-SW6W-10

10000/22000

100/200

5/10

2000

JXCS-SW6W-15

15000/33000

100/200

5/10

3000

JXCS-SW6W-20

20000/44000

200/400

10/20

2000

JXCS-SW6W-30

30000/66000

200/400

10/20

3000

JXCS-SW6W-50

50000/110000

400/800

20/40

2500

JXCS-SW6W-100

100000/220000

1000/2000

50/100

2000

JXCS-SW6W-200

200000/440000

2000/4000

100/200

2000
