Automatic Jam Filling Machine

automatic jam filling machine

suitable for oil liquid packing : jam ,ketchup ,vegetable oil ,lube oil ,edible oil ,sunflower oil and so on.....

Main characteristics:.

This machine adopts piston filling, it is suitable for non-viscous, low viscous and high viscous material at the same time.

The piston filling system of this machine could achieve bottle inlet counting, ration filling, bottle output etc automatically. It suits for high viscous material such as jam, wood floor wax care, engine oil, edible oil etc ration filling.

Technical parameter:

why suitable :

1 :for different bottle shapes: round ,flat and so on for different kinds shapes of bottles ,they can share on one filling machine ,no need to change spare parts

2: no dropping ,inside the filling heads ,after filling make to be vaccum if not touch by hand on filling head will no drop ,second is there is device ,after filling ,device will do the collect under filling heads ,two ways to make sure no dropping .

3 :machine material ,the material we use ,all the contact part SS 316L ,make sure machines are working good

4: foaming , we have the device which not only diving to avoide the foaming but also have some other special ways to make sure to decrease the foaming.

 5: accurate, every filling heads with one load cell to control the weight ,will not be influenced by the temputer ,keep the weight the same

6: CIP round liquid tank , as for food ,the standard is higher than others ,can not with angle ,and we have the tank is meet the standard requirement of CIP

suitable for the bottles photos :

advantage :

♦ Servo motor driving
♦ Control system - with PLC control system, filling dose is of random fine-tuning.
♦ Operation Interface - 6-inch color touch-style user interface, intuitive and simple, safe and reliable
♦ Feature Enhancements - Cutting with anti-drip device, it can dive to fill with functional properties of materials. (This feature can be optional)
♦ Electrical components - using internationally renowned brands to ensure that equipment’s reliability and high accuracy;
♦ Mechanical components - the contact parts are made of high quality stainless steel 316 and non-toxic corrosion and PTFE hoses. Other machine parts are made of high quality stainless steel 304.
♦ Count testing - real-time count, reflecting on the work output directly.
♦ Filling Detection - No bottle, or when bottles are not enough, no filling.
♦ Maintenance situations - the machine meets the GMP requirements, easy to disassemble, clean and maintain.
♦ Exchange standard – when changing filling specifications, you only need some simple adjusting to make it.
♦ Environmental protection configuration – the environmental framework in the machine makes operating environment more hygienic. (The environmental protection configuration can be optional).

bottle shape: round &flat bottles

filling range: 50ml-1000ml

liquid: viscous liquid such as shampoo, dishwasher, oil, chemicals, detergent and so on ...

capacity :1000-6000BPH

Machine Photos:

Filling machine:

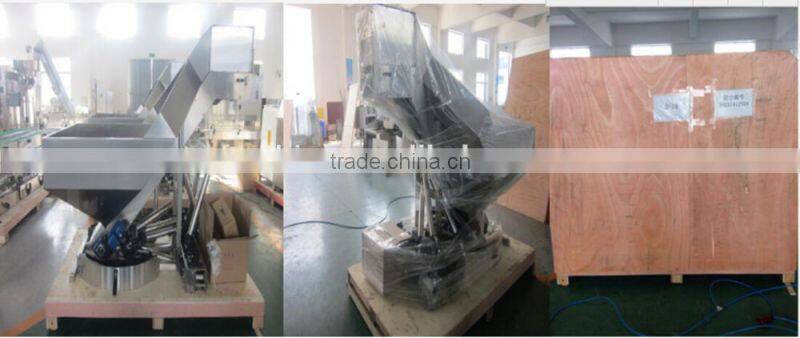

capping machine:

Labeling machine:

 questions :

1. How does this machine control filling volume?

A: It controls filling volume by setting travel of piston for each valve. The volume= sectional area of quantitative cylinder X travel of piston.

2. Is there other filling capacity can be choosen?

A: Yes, the filling capacity is upto 5Litre. We can customize it for you according to your bottle size.

3. Our liquid has foam when fill, can you solve this problem for us.

A: Don't worry, this machine has dive filling function such nozzles can dive in to the bottle to fill. Also nozzles can rise while filling.

4. I know this machine can fill viscosty liquid, but can this machine fill liquid with good mobility also?

A: Yes, that's right.

5. Our country's voltage is different from China, can you supply machine with the power supply same as our country?

A: Sure, we can customize it for you.

6. We see different kinds of models on your website, can you tell us the difference and the same places of them?

A: Sure. They are all positon type filling machines, but the filling volume differs. The quantitive cylinders are with 120ml, 500ml, 1000ml, 5000ml maximum volume. Clients can choose the model according to their fillling request.

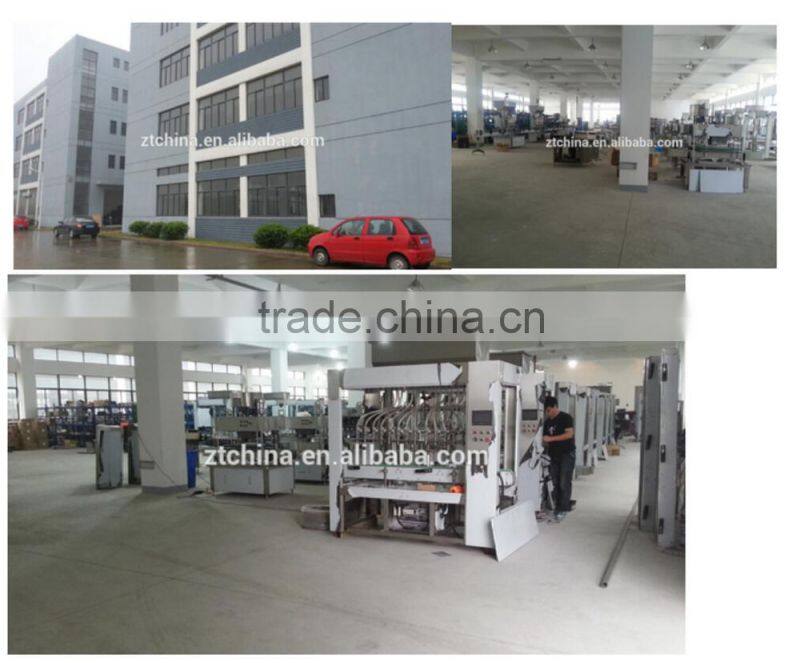

Our company photos
